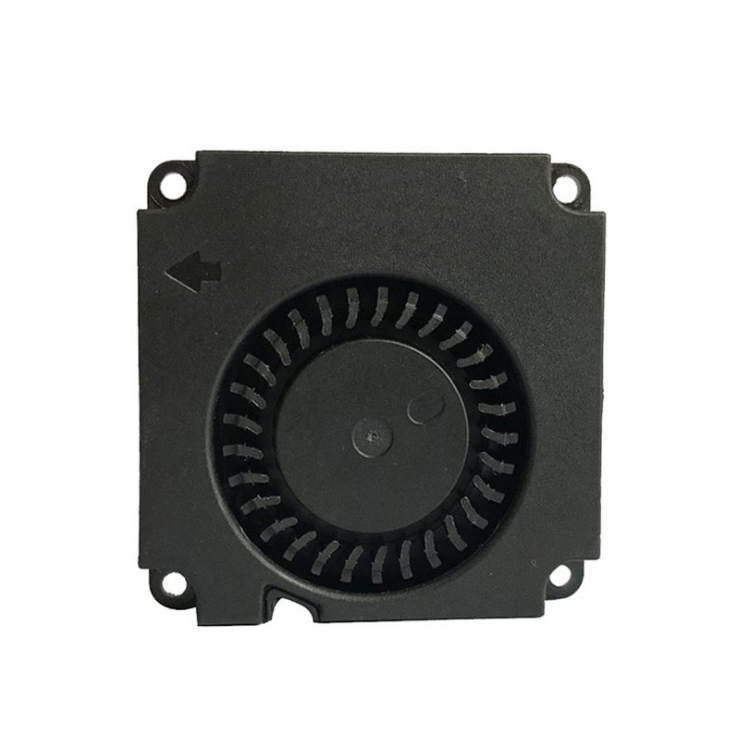

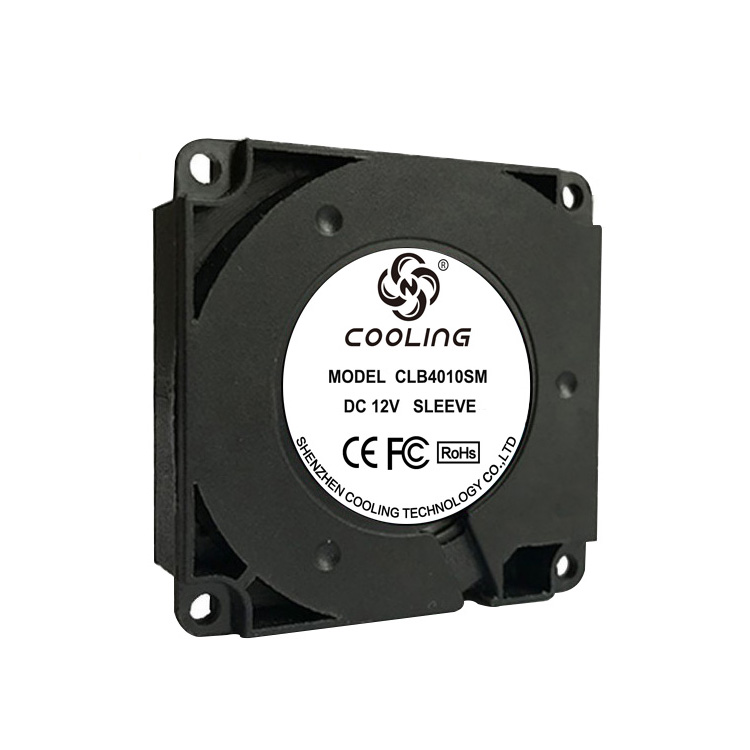

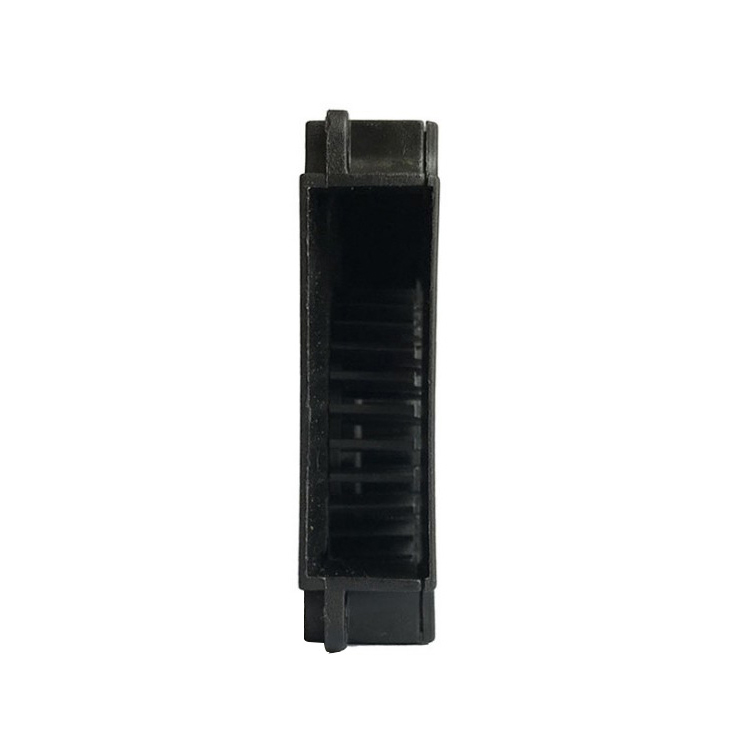

40x40X10mm 5V 12VDC Cooling Blower
Product Attributes
l Size / Dimension: 40x40X10mm
l Voltage - Rated：5VDC / 12VDC
l Bearing Type: Sleeve / Hydraulic / Ball Bearing
l Air Flow: 0.031 ~ 0.090m³/min（1.09 ~ 3.2 CFM）
l Static Pressure: 2.15 ~ 13.93 mm H2O（0.085 ~ 0.548 in H2O）
l Noise: ＜18.9 ~ 37.0 dB(A)
l RPM: 4000 / 10000 RPM
l Current Rating (Amps): 0.025 ~ 0.35A
l Voltage Range: 1.8 ~ 3.6 ~ 6.8VDC / 7 ~ 13.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：0.3 ~ 1.75W
l Weight: 10g
Certifications:
CE & FCC Listed
REACH Compliant
Model
Rated Voltage
Operating Voltage Range
Rated Current
Rated
Input Power
Speed
Maximum Air Flow
Maximum Air Pressure
Noise
PART.NO.
VDC
VDC
Amp
Watt
R.P.M
M³/min
CFM
mmH2O
InH2O
dB-A
CLB4010LL05X
5
1.8~3.6~6.8
0.06
0.3
4000
0.031
1.09
2.15
0.085
18.9
CLB4010L05X
5
1.8~3.6~6.8
0.11
0.55
5000
0.038
1.34
3.03
0.119
23.3
CLB4010M05X
5
1.8~3.6~6.8
0.15
0.75
6000
0.046
1.64
4.89
0.193
26.0
CLB4010H05X
5
1.8~3.6~6.8
0.21
1.05
7000
0.057
2.03
7.17
0.282
29.3
CLB4010HH05X
5
1.8~3.6~6.8
0.25
1.25
8000
0.069
2.42
9.50
0.374
32.1
CLB4010VH05X
5
1.8~3.6~6.8
0.29
1.45
9000
0.078
2.76
12.86
0.506
35.0
CLB4010HV05X
5
1.8~3.6~6.8
0.35
1.75
10000
0.090
3.2
13.93
0.548
37.0
CLB4010LL12X
12
7~13.5
0.025
0.3
4000
0.031
1.09
2.15
0.085
18.9
CLB4010L12X
12
7~13.5
0.046
0.55
5000
0.038
1.34
3.03
0.119
23.3
CLB4010M12X
12
7~13.5
0.062
0.75
6000
0.046
1.64
4.89
0.193
26.0
CLB4010H12X
12
7~13.5
0.09
1.05
7000
0.057
2.03
7.17
0.282
29.3
CLB4010HH12X
12
7~13.5
0.1
1.25
8000
0.069
2.42
9.50
0.374
32.1
CLB4010VH12X
12
7~13.5
0.12
1.45
9000
0.078
2.76
12.86
0.506
35.0
CLB4010HV12X
12
7~13.5
0.146
1.75
10000
0.090
3.2
13.93
0.548
37.0
