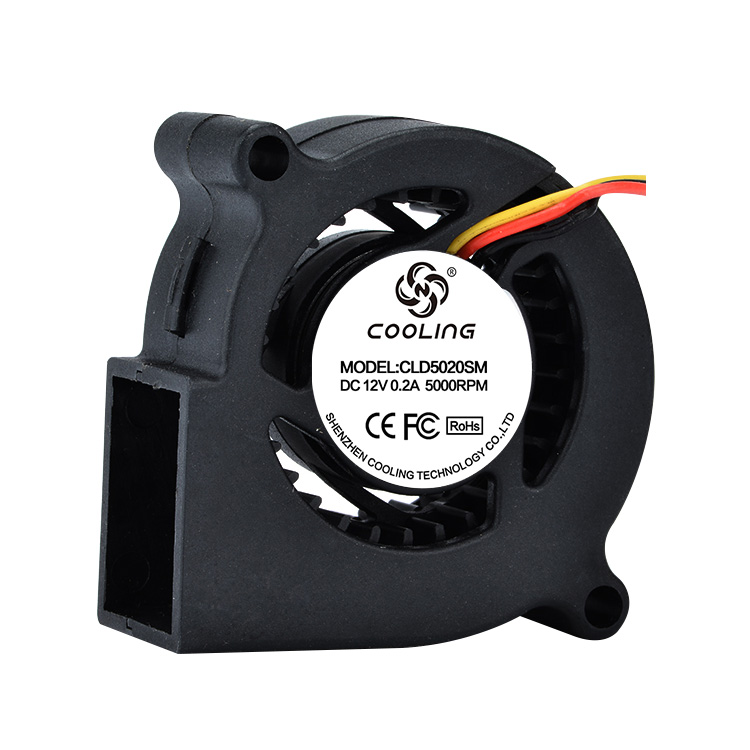

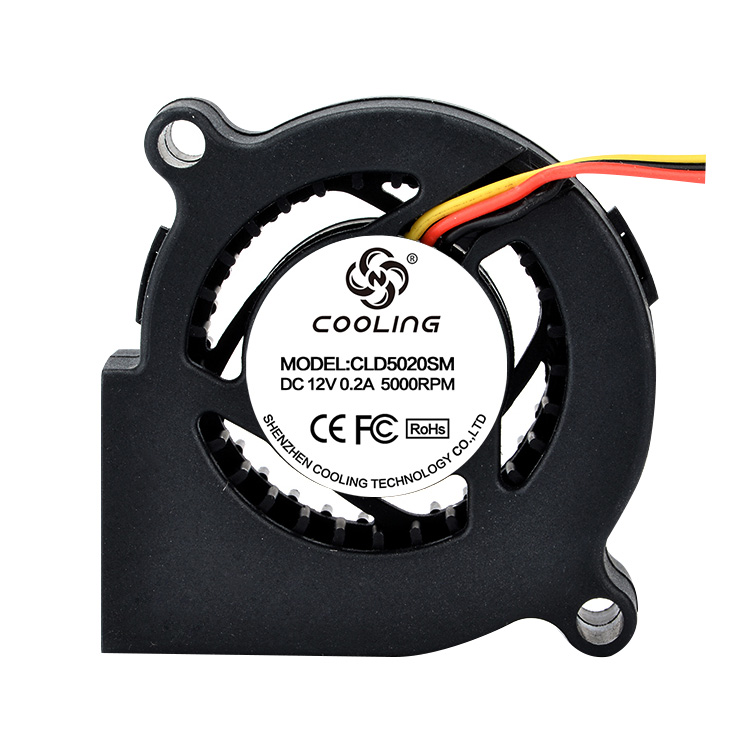

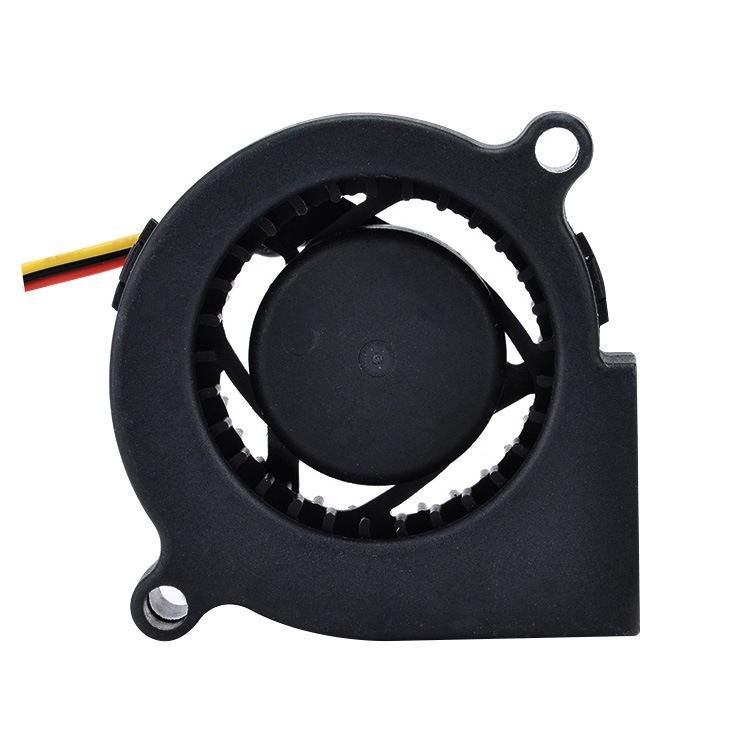

5020 5V 12V 24VDC (50x50X20mm) Brushless Blower Cooling Fan

  • Product description: 5020 - 50x50X20mm 5V 12V 24VDC Blower Sleeve/Hydraulic/Ball Bearing 0.107m³/min 3.79CFM - DC brushless blower fans and quiet cooling solutions from Cooling Technology.
  • INQUIRY

50x50X20mm 5V 12V 24VDC Cooling Blower



Product Attributes

Size / Dimension: 50x50X20mm

Voltage - Rated5VDC / 12VDC / 24VDC

Bearing Type: Sleeve / Hydraulic / Ball Bearing

Air Flow: 0.060 ~ 0.107m³/min(2.13 ~ 3.79 CFM

Static Pressure: 4.0 ~ 13.33 mm H2O(0.157 ~ 0.525 in H2O

Noise: 31.5 ~ 42.7 dB(A)

RPM: 4000 / 6000 RPM

Current Rating (Amps): 0.07 ~ 0.53A

Voltage Range: 1.8 ~ 3.6 ~ 6.8VDC / 7 ~ 13.5VDC / 18 ~ 26.5VDC

Material - Frame: Plastic (Flammability: UL94V-0)

Material - Blade: Plastic (Flammability: UL94V-0)

Power (Watts)1.68 ~ 3.6W

Weight: 32g



Certifications:

CE & FCC Listed

REACH Compliant



Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLB5020L05X 5 1.8~3.6~6.8 0.34 1.68 4000 0.060 2.13 4.0 0.157 31.5
CLB5020LL05X 5 1.8~3.6~6.8 0.43 2.16 4500 0.086 3.04 6.68 0.263 34.2
CLB5020M05X 5 1.8~3.6~6.8 0.53 2.64 5000 0.096 3.4 8.56 0.337 38.9
CLB5020L12X 12 7~13.5 0.14 1.68 4000 0.060 2.13 4.0 0.157 31.5
CLB5020LL12X 12 7~13.5 0.18 2.16 4500 0.086 3.04 6.68 0.263 34.2
CLB5020M12X 12 7~13.5 0.22 2.64 5000 0.096 3.4 8.56 0.337 38.9
CLB5020H12X 12 7~13.5 0.26 3.12 5500 0.102 3.6 10.81 0.426 39.9
CLB5020HH12X 12 7~13.5 0.3 3.6 6000 0.107 3.79 13.33 0.525 42.7
CLB5020L24X 24 18~26.5 0.07 1.68 4000 0.060 2.13 4.0 0.157 31.5
CLB5020LL24X 24 18~26.5 0.09 2.16 4500 0.086 3.04 6.68 0.263 34.2
CLB5020M24X 24 18~26.5 0.11 2.64 5000 0.096 3.4 8.56 0.337 38.9
CLB5020H24X 24 18~26.5 0.13 3.12 5500 0.102 3.6 10.81 0.426 39.9
CLB5020HH24X 24 18~26.5 0.15 3.6 6000 0.107 3.79 13.33 0.525 42.7
