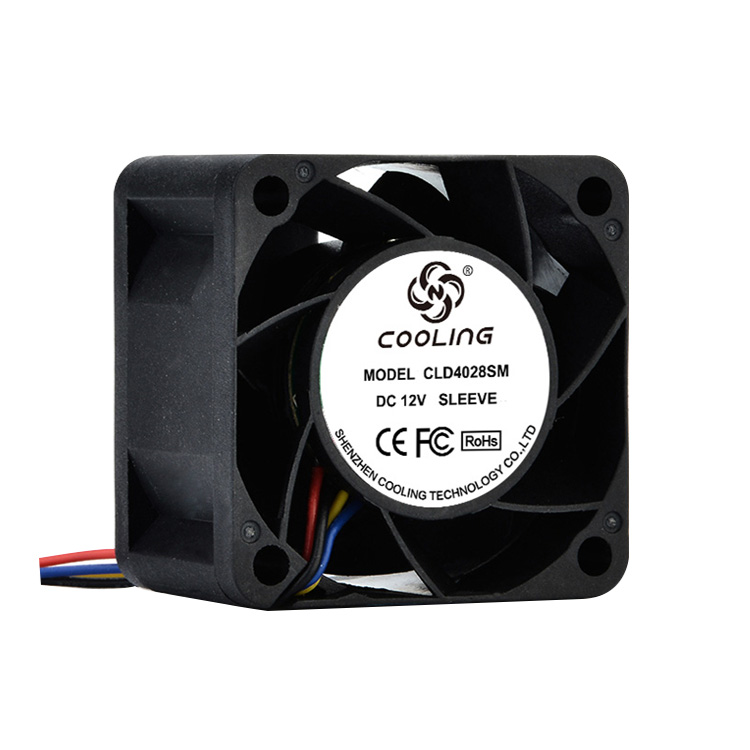

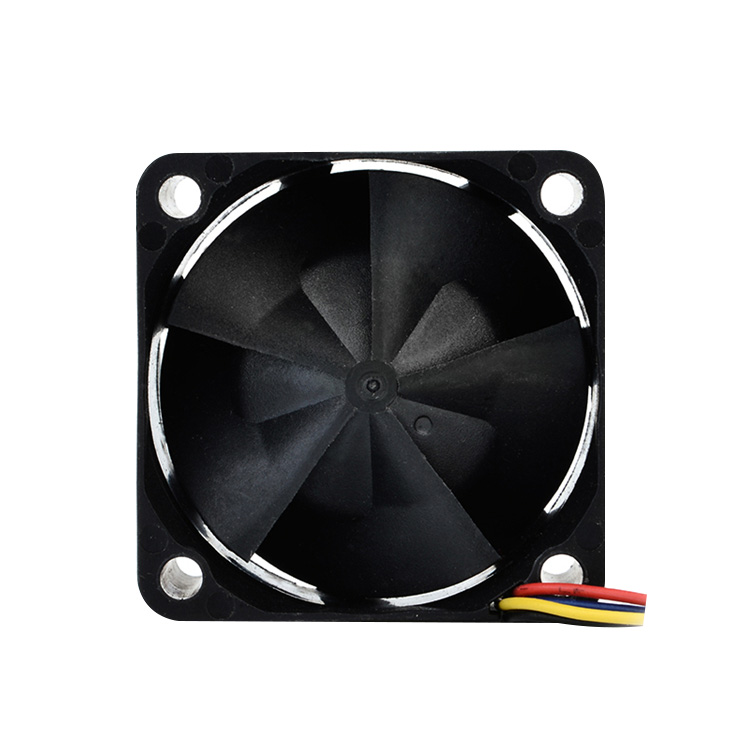

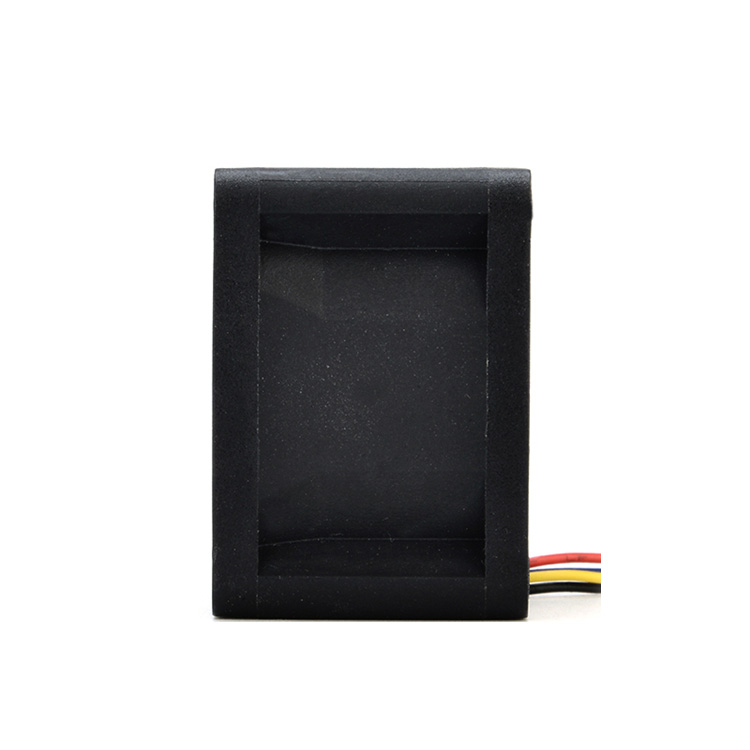

40x40x28mm 12V 24VDC Cooling Fan
Product Attributes
l Size / Dimension: 40x40x28mm
l Voltage - Rated：12VDC / 24VDC
l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing
l Air Flow: 0.247 ~ 0.579 m³/min（8.73 ~ 20.4 CFM）
l Static Pressure: 6.07 ~ 29.62 mm H2O（0.239 ~ 1.166 in H2O）
l Noise: ＜36.6 / 52.6 dB(A)
l RPM: 7000 ~ 16000 RPM
l Current Rating (Amps): 0.08 ~ 0.6A
l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：1.8 ~ 7.2 W
l Weight: 35g
Certifications:
CE Listed
FCC Listed
REACH Compliant
Model
Rated Voltage
Operating Voltage Range
Rated Current
Rated
Input Power
Speed
Maximum Air Flow
Maximum Air Pressure
Noise
PART.NO.
VDC
VDC
Amp
Watt
R.P.M
M³/min
CFM
mmH2O
InH2O
dB-A
CLD4028M12X
12
7~13.5
0.15
1.8
7000
0.247
8.73
6.07
0.239
36.6
CLD4028H12X
12
7~13.5
0.23
2.76
8500
0.302
10.6
8.70
0.343
37.3
CLD4028HH12X
12
7~13.5
0.31
3.72
10000
0.358
12.6
12.05
0.474
41.1
CLD4028HV12X
12
7~13.5
0.40
4.8
12000
0.427
15.0
16.84
0.663
47.3
CLD4028UH12X
12
7~13.5
0.48
5.76
14000
0.507
17.9
22.74
0.895
50.9
CLD4028
VH12X
12
7~13.5
0.6
7.2
16000
0.579
20.4
29.62
1.166
52.6
CLD4028M24X
24
18~26.5
0.08
1.8
7000
0.247
8.73
6.07
0.239
36.6
CLD4028H24X
24
18~26.5
0.115
2.76
8500
0.302
10.6
8.70
0.343
37.3
CLD4028HH24X
24
18~26.5
0.16
3.72
10000
0.358
12.6
12.05
0.474
41.1
CLD4028HV24X
24
18~26.5
0.2
4.8
12000
0.427
15.0
16.84
0.663
47.3
CLD4028UH24X
24
18~26.5
0.24
5.76
14000
0.507
17.9
22.74
0.895
50.9
CLD4028VH24X
24
18~26.5
0.3
7.2
16000
0.579
20.4
29.62
1.166
52.6
