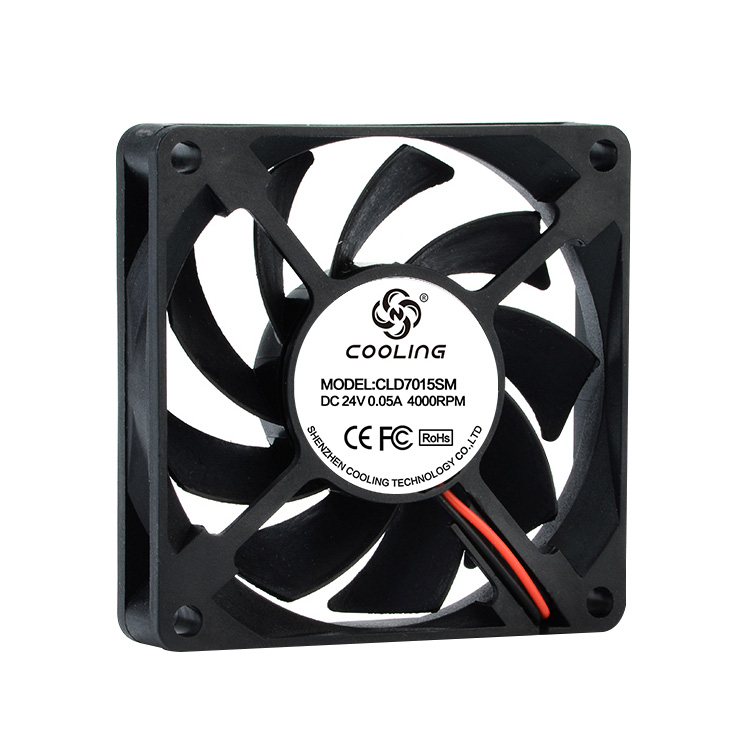

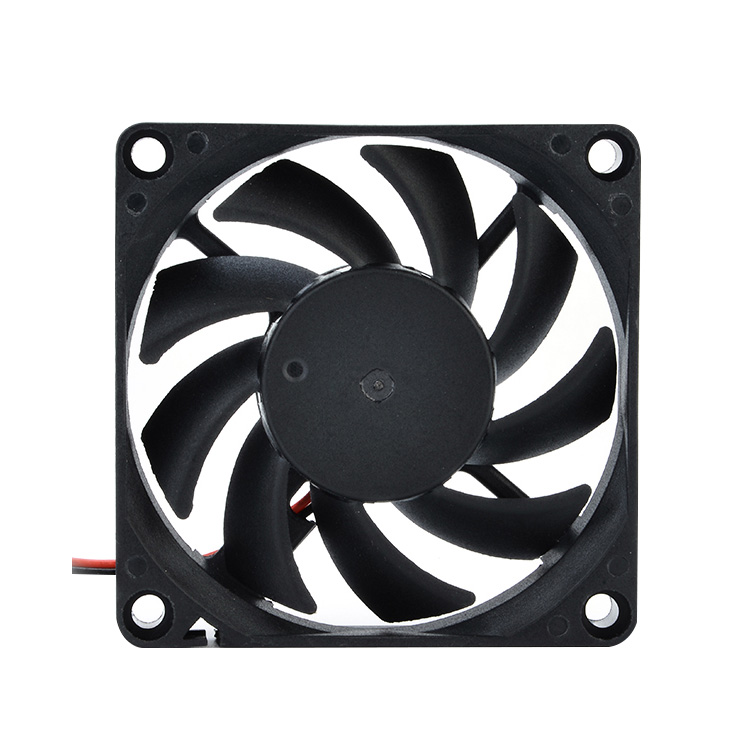

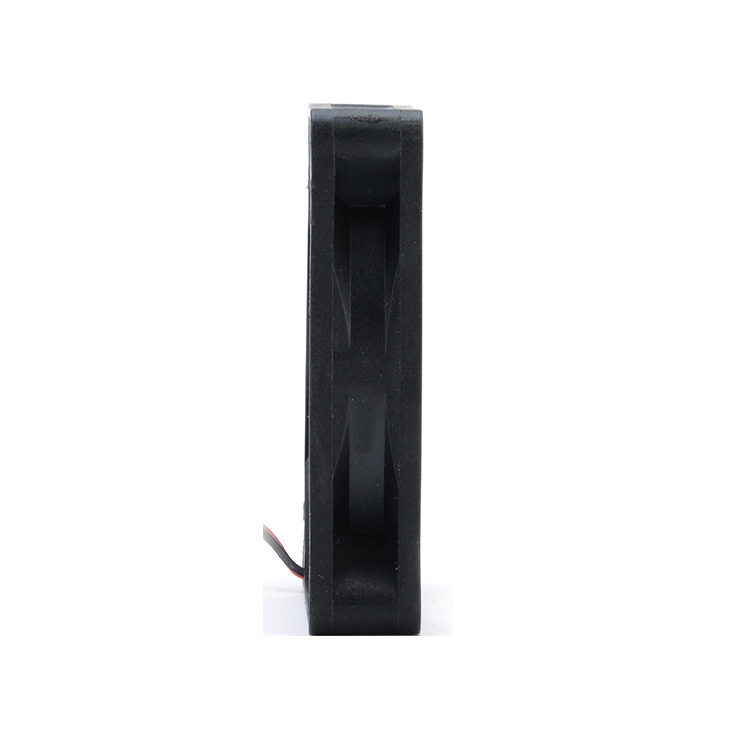

70x70x15mm 5V 12V 24VDC Cooling Fan
Product Attributes
l Size / Dimension: 70x70x15mm
l Voltage - Rated：5VDC / 12VDC / 24VDC
l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing
l Air Flow: 0.395 ~ 0.844 m³/min（13.9 ~ 29.8 CFM）
l Static Pressure: 0.89 ~ 4.62 mm H2O（0.035 ~ 0.182 in H2O）
l Noise: ＜22.9 / 38.9 dB(A)
l RPM: 2000 ~ 4500 RPM
l Current Rating (Amps): 0.02 ~ 0.18A
l Voltage Range: 1.8~3~6VDC / 1.8~3~13.5VDC / 18~26.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：0.48 ~ 2.16 W
l Weight: 44g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLD7015VL05X | 5 | 1.8~3~6 | 0.1 | 0.48 | 2000 | 0.395 | 13.9 | 0.89 | 0.035 | 22.9 |
| CLD7015VL12X | 12 | 1.8~3~13.5 | 0.04 | 0.48 | 2500 | 0.421 | 14.8 | 1.36 | 0.054 | 22.9 |
| CLD7015LL12X | 12 | 1.8~3~13.5 | 0.06 | 0.72 | 3000 | 0.558 | 19.7 | 2.10 | 0.083 | 27.2 |
| CLD7015L12X | 12 | 1.8~3~13.5 | 0.08 | 0.96 | 3500 | 0.652 | 23.0 | 2.92 | 0.115 | 33.3 |
| CLD7015M12X | 12 | 1.8~3~13.5 | 0.12 | 1.44 | 4000 | 0.737 | 26.0 | 3.55 | 0.140 | 36.2 |
| CLD7015H12X | 12 | 1.8~3~13.5 | 0.18 | 2.16 | 4500 | 0.844 | 29.8 | 4.62 | 0.182 | 38.9 |
| CLD7015VL24X | 24 | 18~26.5 | 0.02 | 0.48 | 2500 | 0.421 | 14.8 | 1.36 | 0.054 | 22.9 |
| CLD7015LL24X | 24 | 18~26.5 | 0.03 | 0.72 | 3000 | 0.558 | 19.7 | 2.10 | 0.083 | 27.2 |
| CLD7015L24X | 24 | 18~26.5 | 0.04 | 0.96 | 3500 | 0.652 | 23.0 | 2.92 | 0.115 | 33.3 |
| CLD7015M24X | 24 | 18~26.5 | 0.06 | 1.44 | 4000 | 0.737 | 26.0 | 3.55 | 0.140 | 36.2 |
| CLD7015H24X | 24 | 18~26.5 | 0.09 | 2.16 | 4500 | 0.844 | 29.8 | 4.62 | 0.182 | 38.9 |
