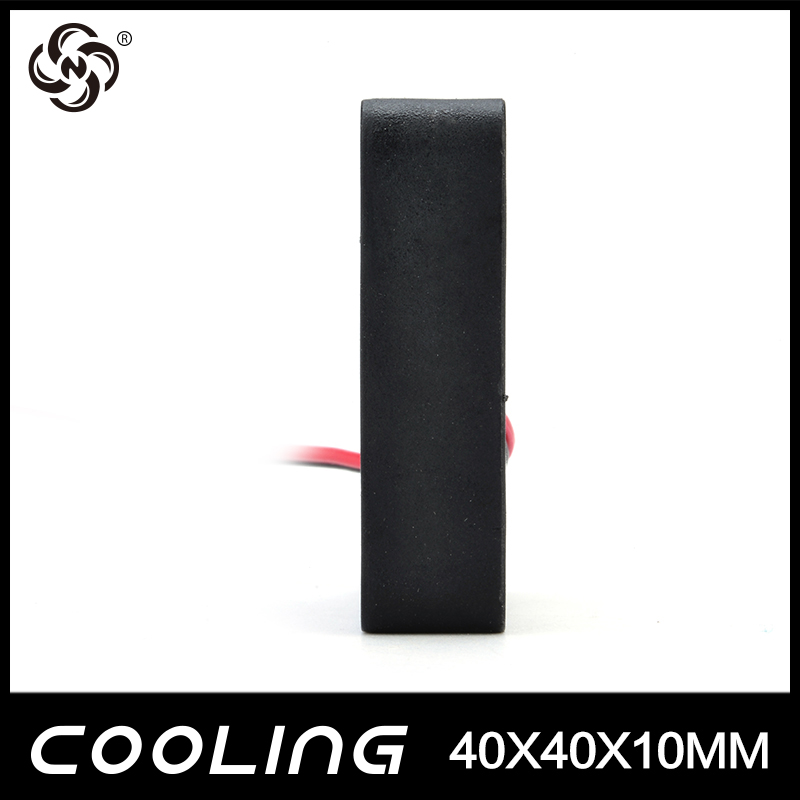

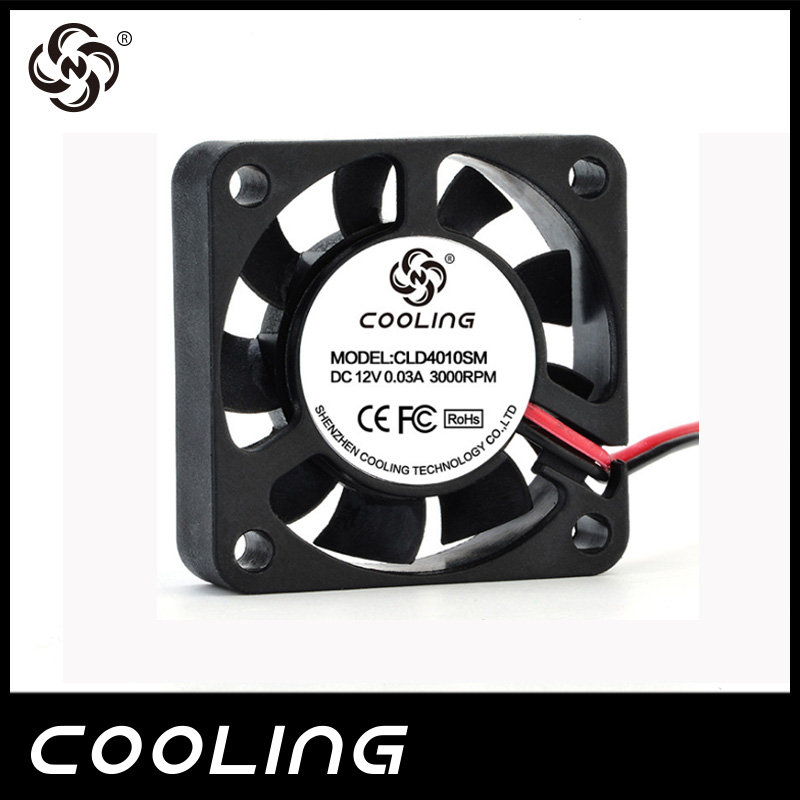

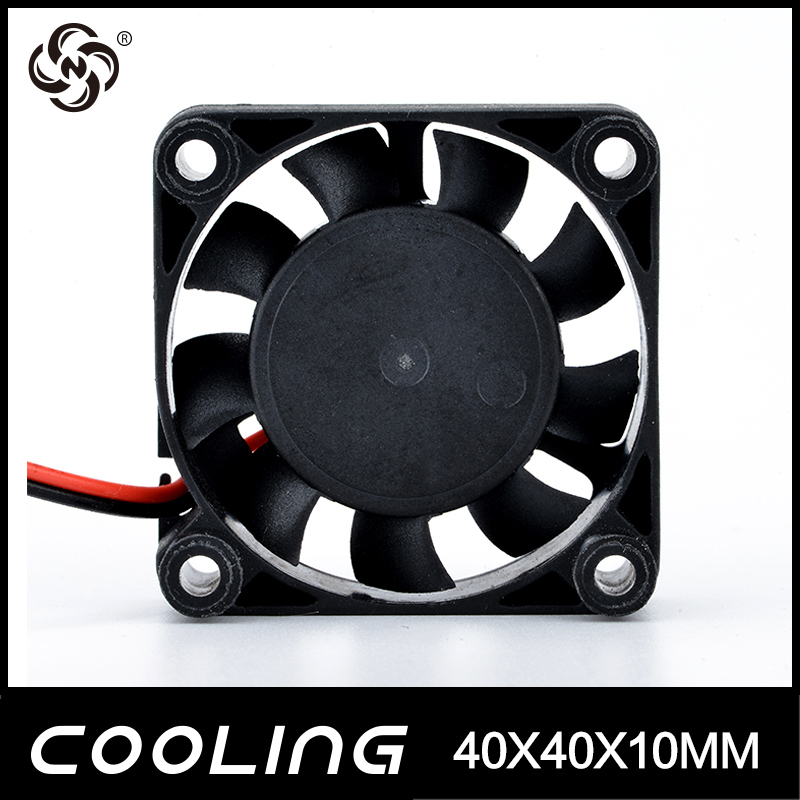

40mm X 40mm X 10mm 4010 Cooling Fan 24V 12V 5V
Specification
| Model | Voltage | Current | Power | Speed | Air Flow | Air Pressure | Noise |
| Part No. | VDC | Amp | Watt | RPM | CFM | mmH2O | dB-A |
| CLD4010L05 | 5 | 0.07 | 0.36 | 4500 | 3.93 | 2.09 | 24.6 |
| CLD4010LV05 | 5 | 0.1 | 0.48 | 5000 | 4.51 | 2.65 | 28.5 |
| CLD4010LM05 | 5 | 0.12 | 0.6 | 5500 | 4.83 | 3.03 | 30 |
| CLD4010M05 | 5 | 0.14 | 0.72 | 6000 | 5.16 | 3.43 | 31 |
| CLD4010ML05 | 5 | 0.17 | 0.84 | 6500 | 5.35 | 3.81 | 33.4 |
| CLD4010H05 | 5 | 0.19 | 0.96 | 7000 | 5.84 | 4.19 | 35.3 |
| CLD4010HL05 | 5 | 0.22 | 1.08 | 7500 | 6.3 | 4.72 | 37.1 |
| CLD4010HH05 | 5 | 0.24 | 1.2 | 8000 | 6.51 | 5.26 | 38 |
| CLD4010VH05 | 5 | 0.26 | 1.32 | 8500 | 7.02 | 5.92 | 39.5 |
| CLD4010L12 | 12 | 0.03 | 0.36 | 4500 | 3.93 | 2.09 | 24.6 |
| CLD4010LV12 | 12 | 0.04 | 0.48 | 5000 | 4.51 | 2.65 | 28.5 |
| CLD4010LM12 | 12 | 0.05 | 0.6 | 5500 | 4.83 | 3.03 | 30 |
| CLD4010M12 | 12 | 0.06 | 0.72 | 6000 | 5.16 | 3.43 | 31 |
| CLD4010ML12 | 12 | 0.07 | 0.84 | 6500 | 5.35 | 3.81 | 33.4 |
| CLD4010H12 | 12 | 0.08 | 0.96 | 7000 | 5.84 | 4.19 | 35.3 |
| CLD4010HL12 | 12 | 0.09 | 1.08 | 7500 | 6.3 | 4.72 | 37.1 |
| CLD4010HH12 | 12 | 0.1 | 1.2 | 8000 | 6.51 | 5.26 | 38 |
| CLD4010VH12 | 12 | 0.11 | 1.32 | 8500 | 7.02 | 5.92 | 39.5 |
Description
The 4010 axial fan, also known as a 4010 cooling fan, is a small but powerful fan designed to provide efficient cooling to your electronic devices. With dimensions of 40mm x 40mm x 10mm, this fan is compact enough to fit into tight spaces and low-profile designs while still providing strong airflow and cooling performance.
The 4010 axial fan is commonly used in electronic devices, such as routers, switches, and hard drives, to prevent overheating and improve their performance and lifespan. It can also be used in industrial equipment and other heavy-duty applications that require reliable cooling performance.
Installing a 4010 axial fan is easy, thanks to its standard mounting holes and simple installation process. It can be quickly and securely attached to your device's chassis, providing reliable cooling performance.
Application
4010 cooling fan is a versatile and efficient cooling solution that can be used in a variety of applications. Here are some common uses for a 4010 cooling fan, including the popular models pb04010ms4 and kde2404pfv2:
Electronic devices: The 4010 cooling fan is a popular choice for cooling electronic devices, such as routers, switches, and hard drives. Its small size and efficient cooling performance make it ideal for these types of applications. The pb04010ms4 and kde2404pfv2 models are particularly reliable options for this use case.
3D printing: 4010 cooling fans are a popular choice for cooling 3D printer components, such as the hot end and the printed object. They can help prevent overheating and improve the quality of your 3D prints.
The 4010 cooling fan is available in a variety of voltage options, including 12V and 24V models. Installing a 4010 cooling fan is easy, thanks to its standard mounting holes and simple installation process.
