DC Blower Fan

  • 3004 2V 3V 5VDC (30X30X4mm) Brushless Blower | Cooling Fan
  • 3004 2V 3V 5VDC (30X30X4mm) Brushless Blower | Cooling Fan
  • 3004 2V 3V 5VDC (30X30X4mm) Brushless Blower | Cooling Fan
  • 3004 2V 3V 5VDC (30X30X4mm) Brushless Blower | Cooling Fan
3004 2V 3V 5VDC (30X30X4mm) Brushless Blower | Cooling Fan3004 2V 3V 5VDC (30X30X4mm) Brushless Blower | Cooling Fan3004 2V 3V 5VDC (30X30X4mm) Brushless Blower | Cooling Fan3004 2V 3V 5VDC (30X30X4mm) Brushless Blower | Cooling Fan

3004 2V 3V 5VDC (30X30X4mm) Brushless Blower | Cooling Fan

  • Product description: 3004 - 30X30X4mm 2V 3V 5VDC Blower with Sleeve/Hydraulic Bearing 0.021m³/min 0.73CFM - DC brushless blower fans and quiet cooling solutions from Cooling Technology.
  • INQUIRY

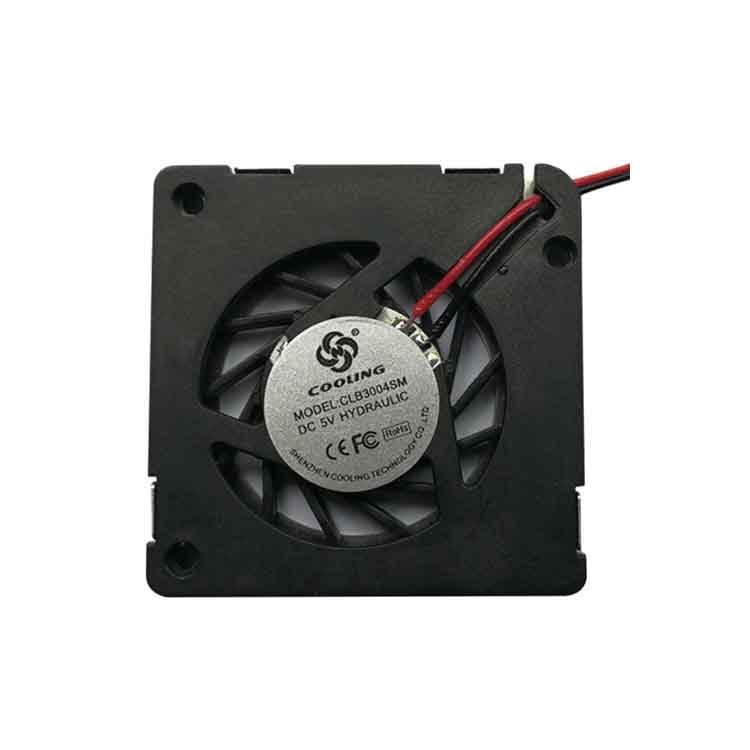

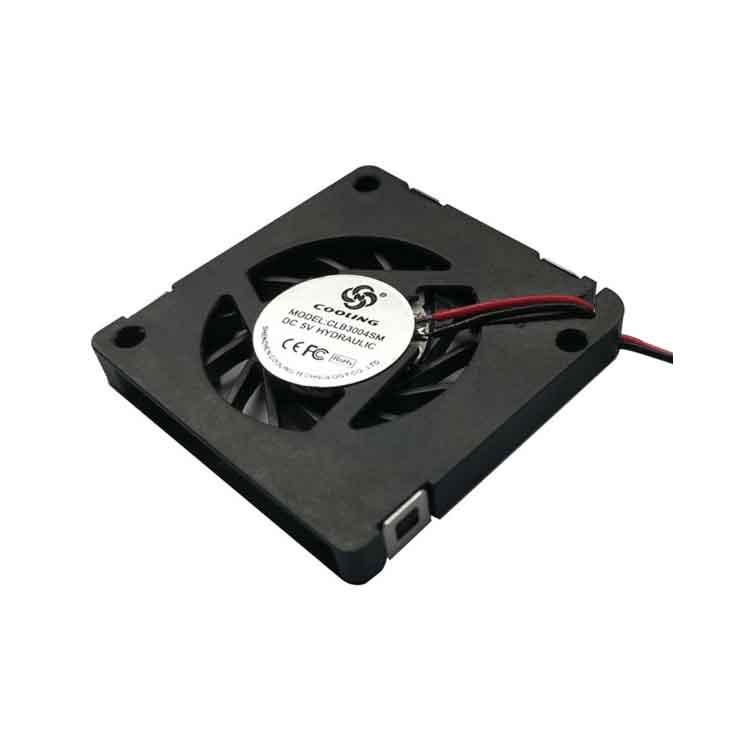

30X30X4mm 2V 3V 5VDC Cooling Blower Fan


Product Attributes

l Size / Dimension: 30X30X4mm

l Voltage - Rated2VDC / 3VDC / 5VDC

l Bearing Type: Sleeve / Hydraulic

l Air Flow: 0.007 ~ 0.021m³/min(0.26 ~ 0.73 CFM

l Static Pressure: 1.16 ~ 9.57 mm H2O(0.046 ~ 0.376 in H2O

l Noise: 18 ~ 28.6 dB(A)

l RPM: 4300 / 11000 RPM

l Current Rating (Amps): 0.03 ~ 0.07A

l Voltage Range: 1.9 ~ 6VDC

l Material - Frame: Plastic (Flammability: UL94V-0)

l Material - Blade: Plastic (Flammability: UL94V-0)

l Power (Watts)0.06 ~ 0.35W

l Weight: 6g


Certifications:

CE & FCC Listed

REACH Compliant

Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLB3004L05 X 5 1.9~6 0.07 0.35 11000 0.021 0.73 9.57 0.376 28.6
CLB3004L03 X 3 1.9~6 0.05 0.165 7000 0.011 0.39 3.05 0.120 18
CLB3004L02 X 2 1.9~6 0.03 0.06 4300 0.007 0.26 1.16 0.046 18
