DC Axial Fan

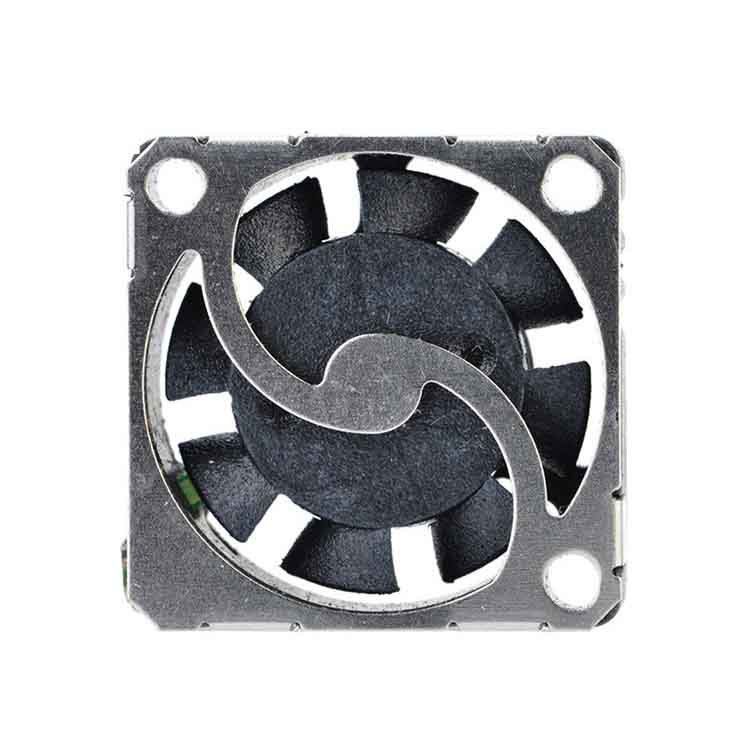

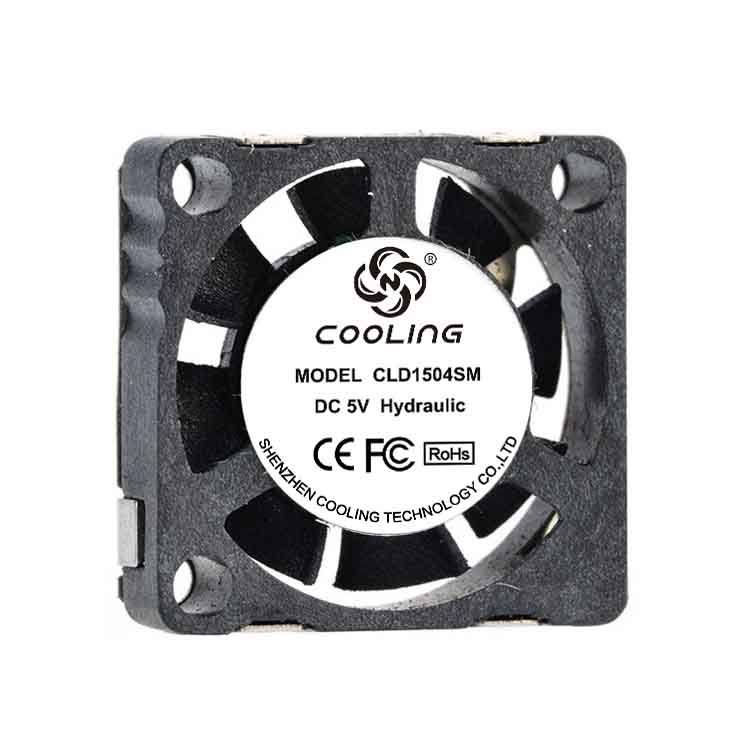

  • 1504 3.3V 5VDC (15X15X4mm) Cooling Fan
  • 1504 3.3V 5VDC (15X15X4mm) Cooling Fan
1504 3.3V 5VDC (15X15X4mm) Cooling Fan1504 3.3V 5VDC (15X15X4mm) Cooling Fan

1504 3.3V 5VDC (15X15X4mm) Cooling Fan

  • Product description: 1504 - DC Axial Fan 15x15x4mm 3.3V 5VDC Sleeve/Hydraulic Bearing 0.011CFM 0.4 m³/min - DC brushless axial fans and quiet cooling solutions from Cooling Technology
  • INQUIRY

15x15x4mm 3.3V 5V DC Cooling Fan


Product Attributes

l Size / Dimension: 15x15x4mm

l Voltage - Rated：3.3VDC / 5VDC

l Bearing Type: Sleeve / Hydraulic Bearing

l Air Flow: 0.009 / 0.011CFM (0.3 / 0.4 m³/min)

l Static Pressure: 0.376 / 0.12 in H2O (1.5 / 2.8 mm H2O)

l Noise: ＜25 / 35dB(A)

l RPM: 10000 / 16000 RPM

l Current Rating (Amps): 0.03 / 0.04A

l Voltage Range: 2 ~ 6VDC

l Material - Frame: Plastic (Flammability: UL94V-0)

l Material - Blade: Plastic (Flammability: UL94V-0)

l Power (Watts)：0.1 / 0.2 W



CERTIFICATIONS:

CE & FCC Listed

REACH Compliant


Model Rated Voltage Operationg Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mm H2O In H2O dB-A
CLD1504L33X 3.3 2~6 0.03 0.1 10000 0.009 0.30 1.50 0.376 ＜25
CLD1504L05X 5 2~6 0.04 0.2 16000 0.011 0.40 2.80 0.120 ＜35

No previous NEXT：2006 5V 12VDC (20X20X6mm) Cooling Fan

Related Products

2006 5V 12VDC (20X20X6mm) Cooling Fan

2006 5V 12VDC (20X20

2006 - DC Axial Fan 20x20x6mm 5V 12VDC Sleeve/Hydraulic Bear...

8025 12V 24V 48VDC (80X80X25mm) Cooling Fan

8025 12V 24V 48VDC (

8025 - 80X80X25mm 12V 24V 48VDC Fan with Sleeve/Hydraulic/Du...

12025A 12V 24V 48VDC (120X120X25mm) Cooling Fan

12025A 12V 24V 48VDC

12025A - 120X120X25mm 12V 24V 48VDC Fan Sleeve/Hydraulic/Dua...

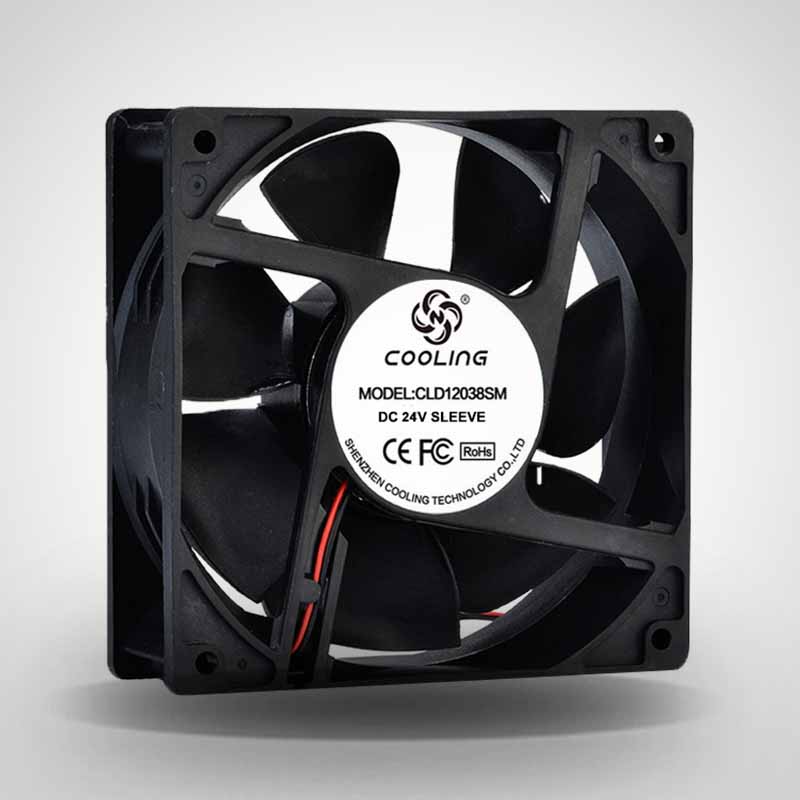

12038A 12V 24V 48VDC (120X120X38mm) Cooling Fan
