DC Axial Fan

  • 8025 12V 24V 48VDC (80X80X25mm) Cooling Fan
  • 8025 12V 24V 48VDC (80X80X25mm) Cooling Fan
  • 8025 12V 24V 48VDC (80X80X25mm) Cooling Fan
8025 12V 24V 48VDC (80X80X25mm) Cooling Fan8025 12V 24V 48VDC (80X80X25mm) Cooling Fan8025 12V 24V 48VDC (80X80X25mm) Cooling Fan

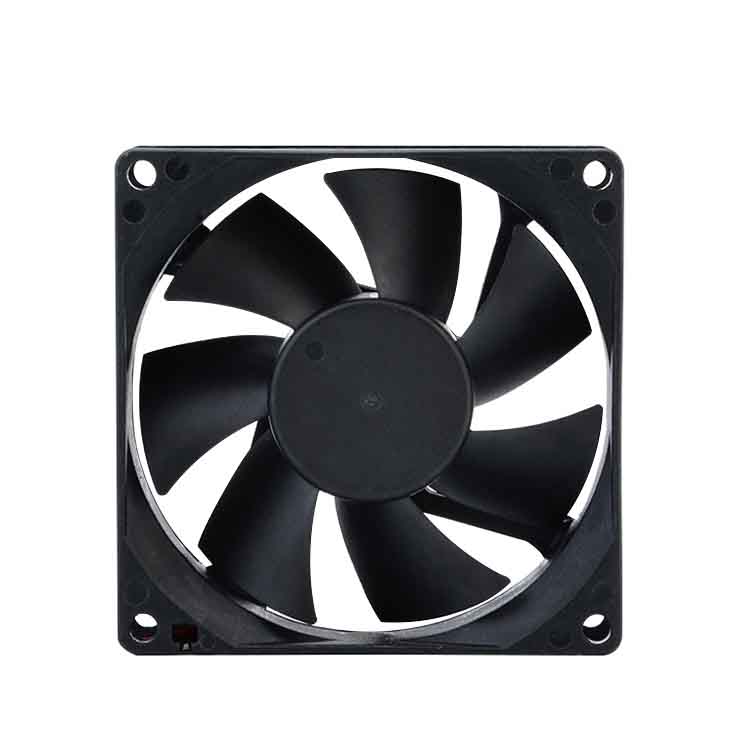

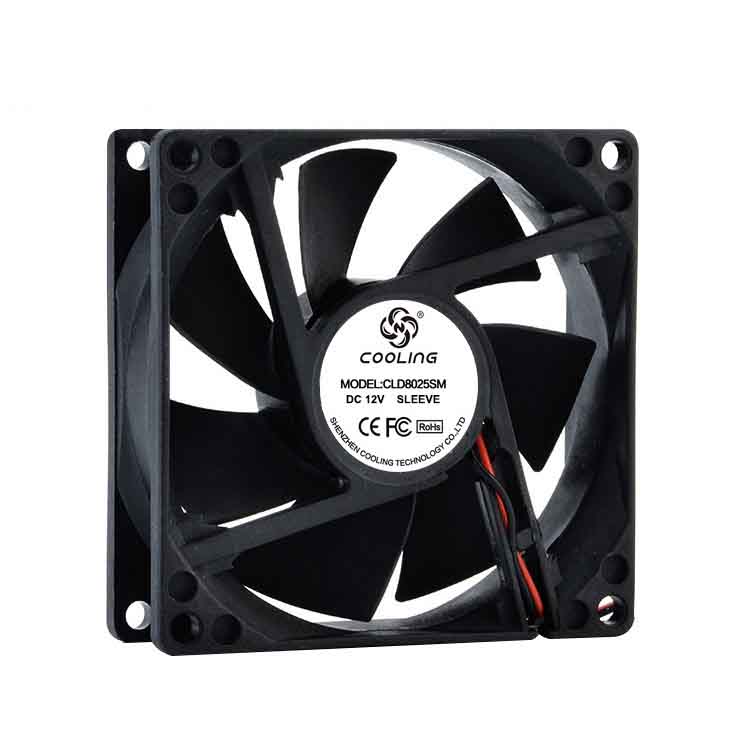

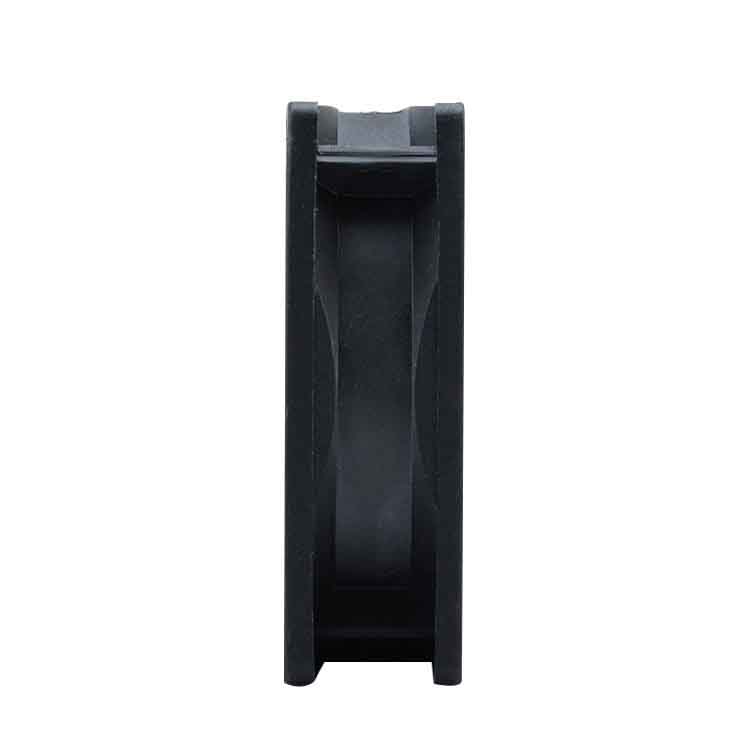

8025 12V 24V 48VDC (80X80X25mm) Cooling Fan

  • Product description: 8025 - 80X80X25mm 12V 24V 48VDC Fan with Sleeve/Hydraulic/Dual Ball Bearing 1.43m³/min 50.2CFM - DC Brushless fan & quiet cooling solutions from Cooling Technology.
  • INQUIRY

80x80x25mm 12V 24V 48VDC Cooling Fan


Product Attributes

       l Size / Dimension: 80x80x25mm
l Voltage - Rated12VDC / 24VDC / 48VDC
l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing
l Air Flow: 0.65 ~ 1.43 m³/min(23.1 ~ 50.2 CFM
l Static Pressure: 1.4 ~ 6.2 mm H2O(0.06 ~ 0.24 in H2O
l Noise: 24.9 – 45.4 dB(A)
l RPM: 2000 ~ 4500 RPM
l Current Rating (Amps): 0.04 ~ 0.5A
l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)0.96 ~ 5.76 W
l Weight: 85g

Certifications:

CE Listed

FCC Listed

REACH Compliant

Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLD8025LL12X 12 7~13.5 0.08 0.96 2000 0.65 23.1 1.4 0.06 24.9
CLD8025L12X 12 7~13.5 0.12 1.44 2500 0.84 29.6 2.1 0.08 29.6
CLD8025M12X 12 7~13.5 0.15 1.8 3000 0.99 34.9 3.1 0.12 35.1
CLD8025H12X 12 7~13.5 0.25 3.0 3500 1.14 40.4 4.1 0.16 40.3
CLD8025HH12X 12 7~13.5 0.30 3.6 4000 1.27 44.9 5.2 0.20 42.4
CLD8025VH12X 12 7~13.5 0.50 6.0 4500 1.43 50.2 6.2 0.24 45.4
CLD8025M24X 24 18~26.5 0.08 1.92 3000 0.99 34.9 3.1 0.12 35.1
CLD8025HH24X 24 18~26.5 0.16 3.84 4000 1.27 44.9 5.2 0.20 42.4
CLD8025VH24X 24 18~26.5 0.25 6.00 4500 1.43 50.2 6.2 0.24 45.4
CLD8025M48X 48 36~54 0.04 1.92 3000 0.99 34.9 3.1 0.12 35.1
CLD8025HH48X 48 36~54 0.08 3.84 4000 1.27 44.9 5.2 0.20 42.4
CLD8025VH48X 48 36~54 0.12 5.76 4500 1.43 50.2 6.2 0.24 45.4
