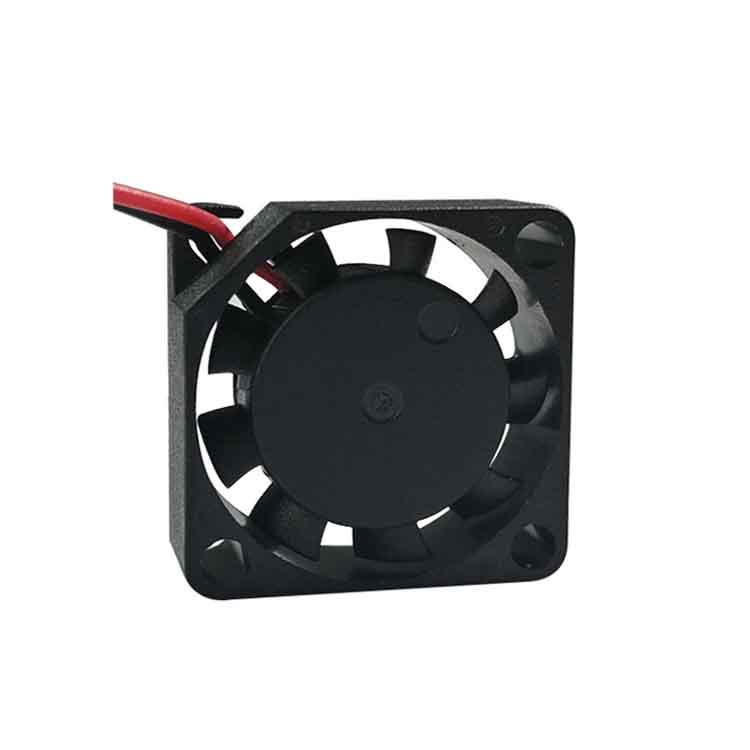

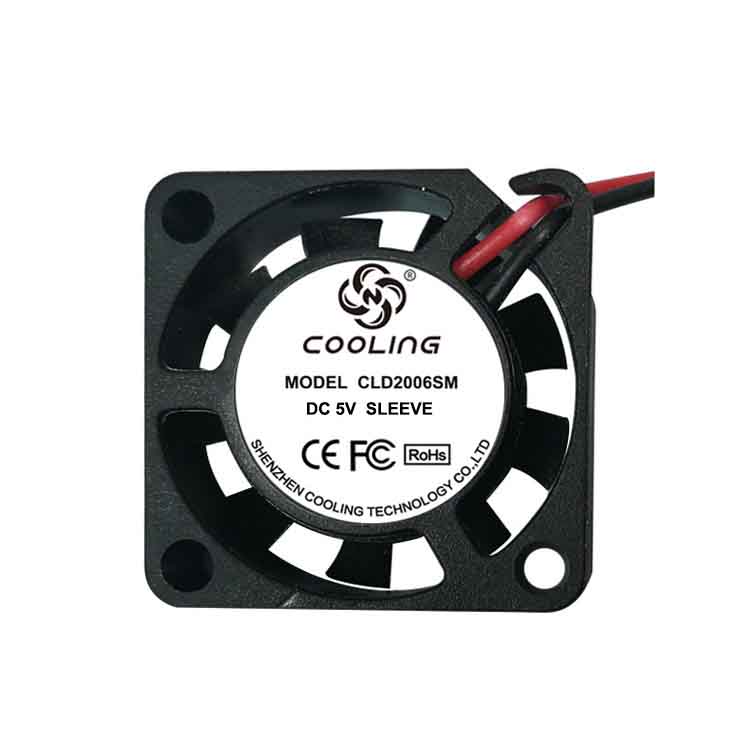

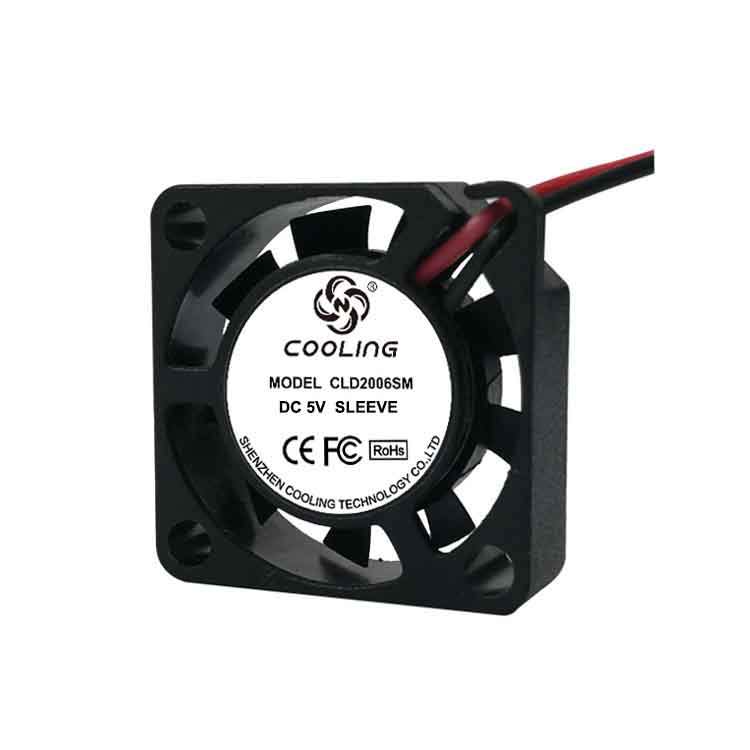

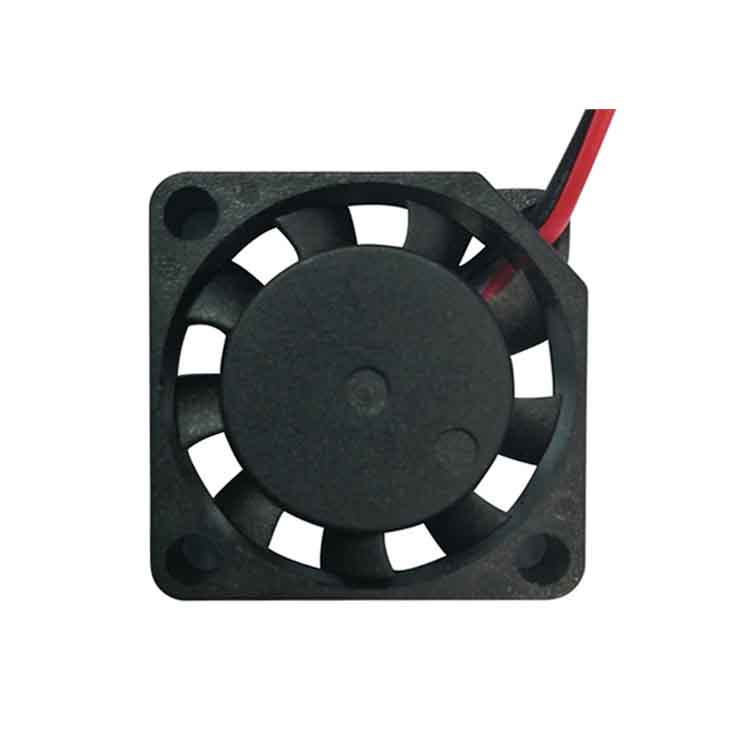

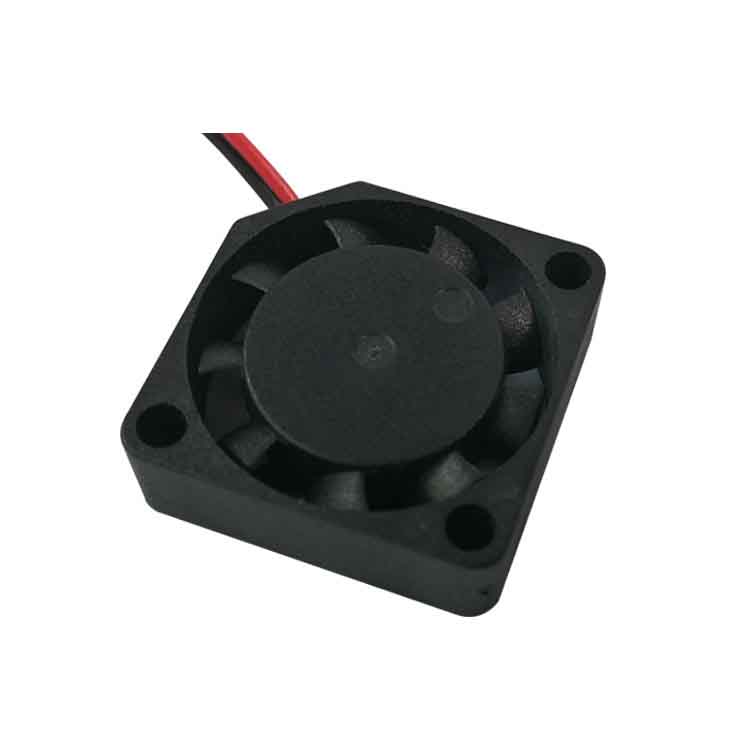

2006 5V 12VDC (20X20X6mm) Cooling Fan

  • Product description: 2006 - DC Axial Fan 20x20x6mm 5V 12VDC Sleeve/Hydraulic Bearing 0.032m³/min 1.12CFM - DC brushless axial fans and quiet cooling solutions from Cooling Technology.
  • INQUIRY

20x20x6mm 5V 12VDC Cooling Fan

Product Attributes

       l Size / Dimension: 20x20x6mm
l Voltage - Rated5VDC / 12VDC
l Bearing Type: Sleeve / Hydraulic Bearing
l Air Flow: 0.022 ~ 0.032 m³/min(0.79 ~ 1.12 CFM
l Static Pressure: 1.95 ~ 2.69 mm H2O(0.077 ~ 0.106 in H2O
l Noise: 21.5 / 31.2 dB(A)
l RPM: 80000 ~ 12000 RPM
l Current Rating (Amps): 0.04 ~ 0.16A
l Voltage Range: 1.8 ~ 3 ~6VDC / 8.5 ~ 13.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)0.4 ~ 1.2 W
l Weight: 3.5g


CERTIFICATIONS:

CE & FCC Listed

REACH Compliant


Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLD2006L05X 5 1.8~3~6 0.08 0.4 8000 0.022 0.79 1.95 0.077 21.5
CLD2006 M05X 5 1.8~3~6 0.12 0.6 10000 0.027 0.95 2.22 0.087 25.6
CLD2006 H05X 5 1.8~3~6 0.16 0.8 12000 0.032 1.12 2.69 0.106 31.2
CLD2006L12X 12 8.5~13.5 0.04 0.48 8000 0.022 0.79 1.95 0.077 21.5
CLD2006M12X 12 8.5~13.5 0.06 0.72 10000 0.027 0.95 2.22 0.087 25.6
CLD2006H12X 12 8.5~13.5 0.1 1.2 12000 0.032 1.12 2.69 0.106 31.2
