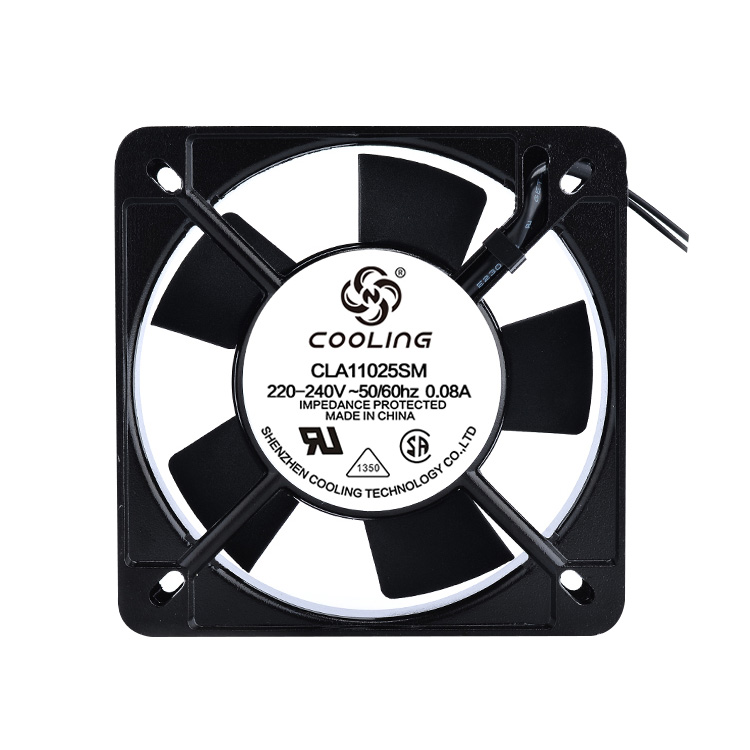

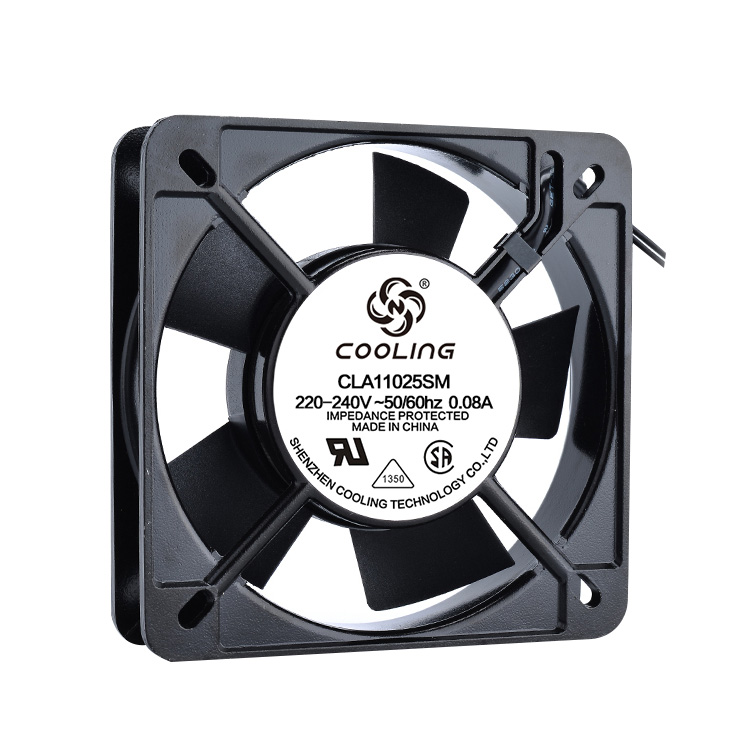

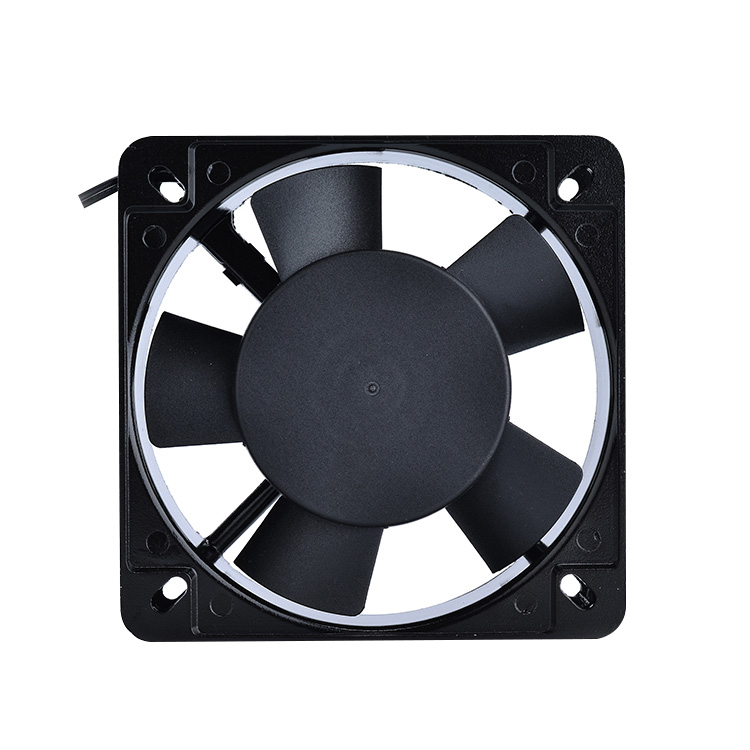

110x110x25mm 110V 220VAC Cooling Fan
Product Attributes
l Size / Dimension: 110x110x25mm
l Voltage - Rated：110VAC / 220VAC
l Bearing Type: Sleeve / Dual Ball Bearing
l Air Flow: 0.85 ~ 1.27 m³/min（30 ~ 45 CFM）
l Static Pressure: 2.2 ~ 4.1 mm H2O（0.09 ~ 0.16 in H2O）
l Noise: ＜30 - 37 dB(A)
l RPM: 1800 ~ 2700 RPM
l Current Rating (Amps): 0.07 ~ 0.15A
l Voltage Range: 100 ~ 125VAC / 220 ~ 240VAC
l Material - Frame: Aluminum (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：10 ~ 17 W
l Weight: 300g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VAC | VAC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLA11025M01 | 110 | 100-125 | 0.1 | 17/15 | 2300/2700 | 1.1/1.27 | 39/45 | 3.9/4.1 | 0.15/0.16 | 35/37 |
| CLA11025L01 | 110 | 100-125 | 0.07 | 12/10 | 1800/2400 | 0.85/1.05 | 30/37 | 2.2/2.5 | 0.09/0.10 | 30/35 |
| CLA11025M02 | 220 | 220-240 | 0.15 | 17/15 | 2300/2700 | 1.1/1.27 | 39/45 | 3.9/4.1 | 0.15/0.16 | 35/37 |
| CLA11025L02 | 220 | 220-240 | 0.1 | 12/10 | 1800/2400 | 0.85/1.05 | 30/37 | 2.2/2.5 | 0.09/0.10 | 30/35 |
