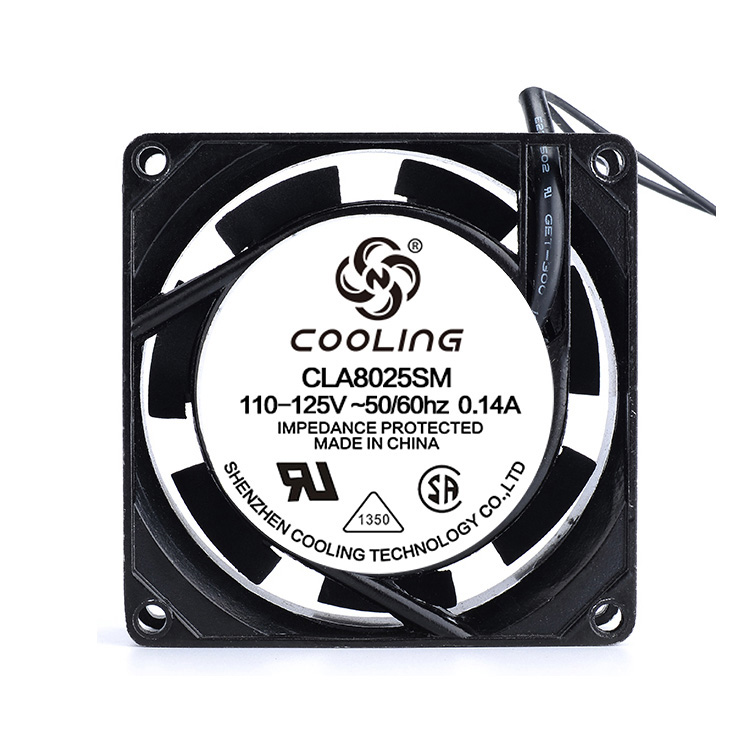

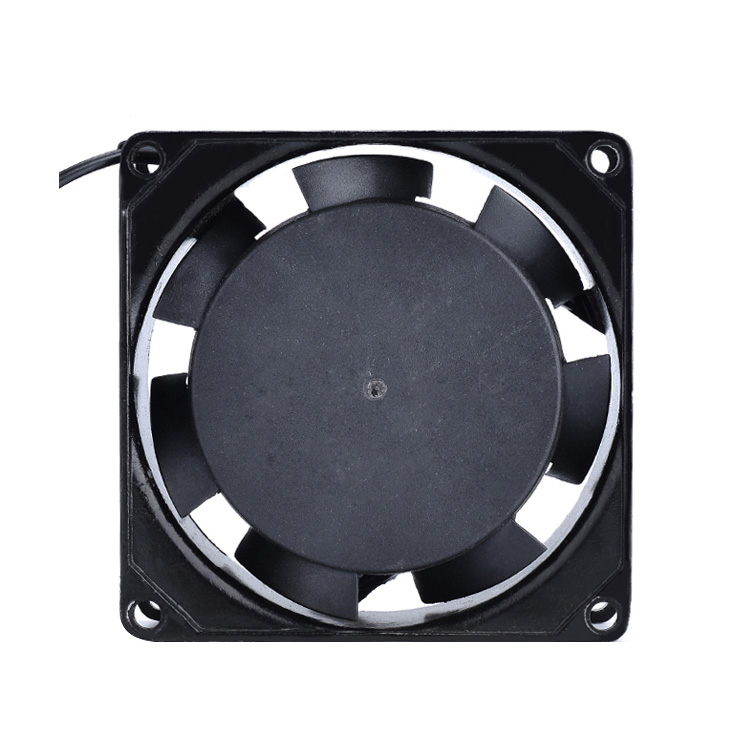

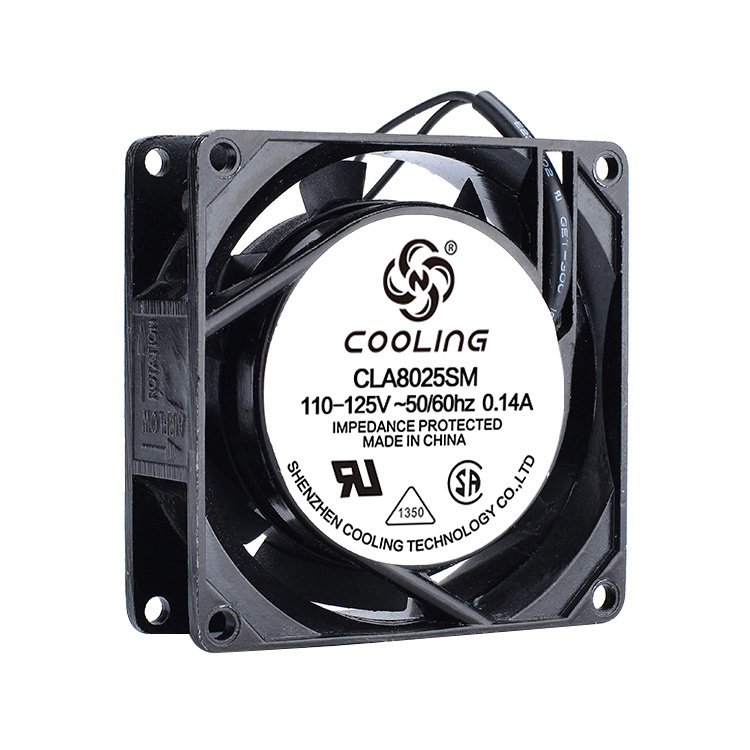

80x80x25mm 110V 220VAC Cooling Fan
Product Attributes
l Size / Dimension: 80x80x25mm
l Voltage - Rated：110VAC / 220VAC
l Bearing Type: Sleeve / Dual Ball Bearing
l Air Flow: 0.36 ~ 0.6 m³/min（13 ~ 22 CFM）
l Static Pressure: 2.6 ~ 4.83 mm H2O（0.1 ~ 0.12 in H2O）
l Noise: ＜20 - 33 dB(A)
l RPM: 2000 ~ 2900 RPM
l Current Rating (Amps): 0.036 ~ 0.12A
l Voltage Range: 100 ~ 125VAC / 220 ~ 240VAC
l Material - Frame: Aluminum (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：8 ~ 14 W
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Air Pressure | Noise Level | ||
| PART.NO. | VAC | VAC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLA8025H01 | 110 | 100-125 | 0.12/0.1 | 14/13.5 | 2500/2900 | 0.5/0.6 | 18/22 | 3.30/4.83 | 0.12 | 29/33 |
| CLA8025M01 | 110 | 100-125 | 0.09/0.09 | 11/10 | 2300/2600 | 0.45/0.5 | 16/19 | 3.0/3.5 | 0.11 | 24/30 |
| CLA8025L01 | 110 | 100-125 | 0.07/0.07 | 9/8 | 2000/2200 | 0.36/0.39 | 13/14 | 2.7/2.6 | 0.1 | 20/21 |
| CLA8025H02 | 220 | 220-240 | 0.07/0.06 | 14/13.5 | 2500/2900 | 0.5/0.6 | 18/22 | 3.30/4.83 | 0.12 | 29/33 |
| CLA8025M02 | 220 | 220-240 | 0.06/0.045 | 11/10 | 2300/2600 | 0.45/0.5 | 16/19 | 3.0/3.5 | 0.11 | 24/30 |
| CLA8025L02 | 220 | 220-240 | 0.05/0.036 | 9/8 | 2000/2200 | 0.36/0.39 | 13/14 | 2.7/2.6 | 0.1 | 20/21 |
