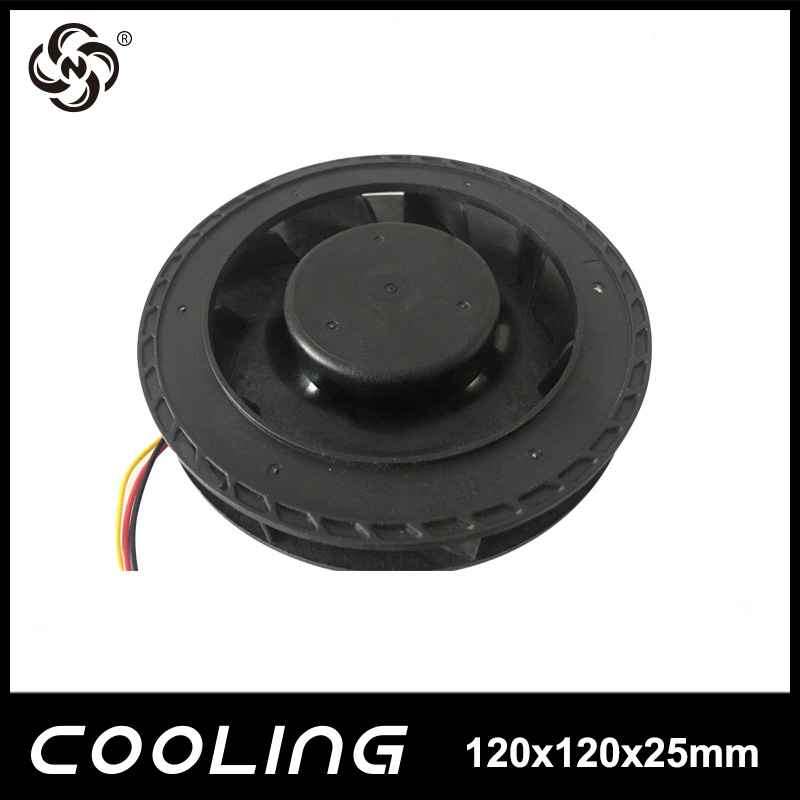

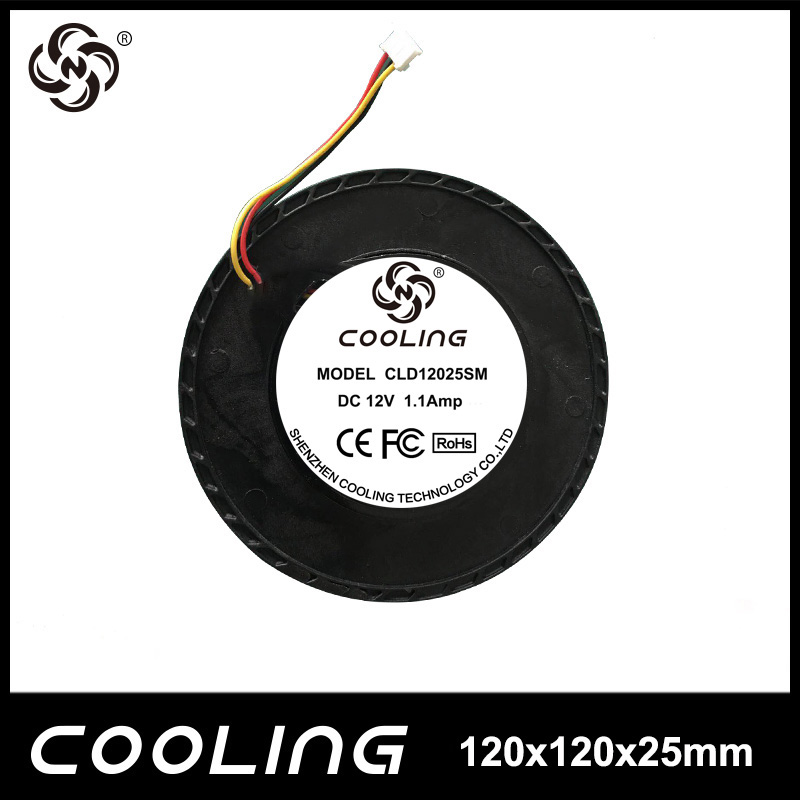

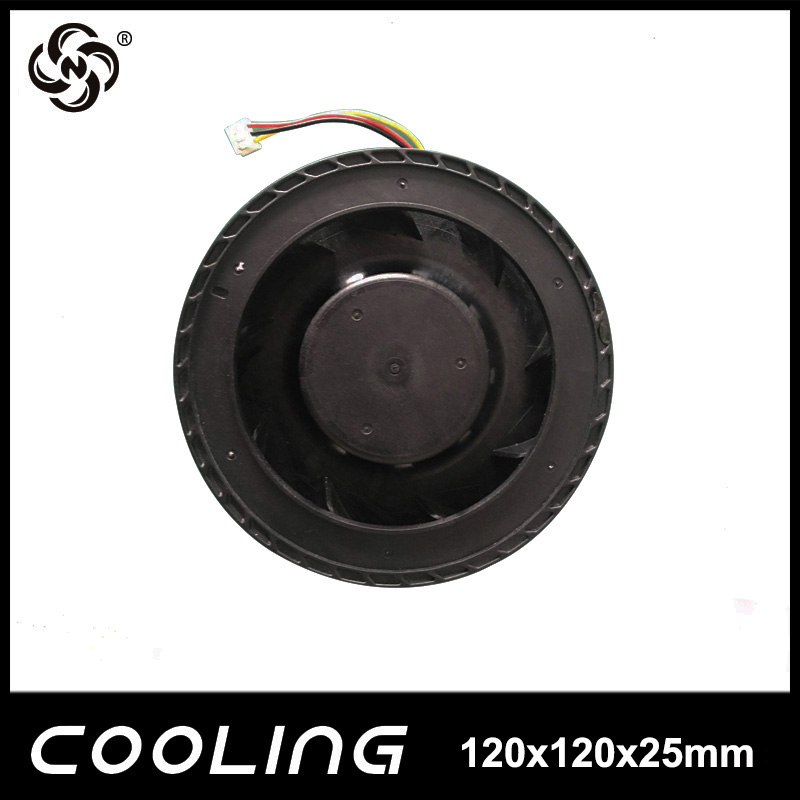

φ120X25mm 12V 24V 48VDC Cooling Fan
Product Attributes
l Size / Dimension: φ120X25mm
l Voltage - Rated：12VDC / 24VDC / 48VDC
l Bearing Type: Dual Ball Bearing
l Air Flow: 110.69 m³/min（65.11 CFM）
l Static Pressure: 19.28 mm H2O（0.557 in H2O）
l Noise: ＜54.7 dB(A)
l RPM: 3500 RPM
l Current Rating (Amps): 0.23 ~ 1A
l Voltage Range: 7.5 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：11.04 ~ 12 W
l Weight: 130g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Air Pressure | Noise Level | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | M³/h | CFM | mmH2O | InH2O | dB-A |
| CLB12025H12 | 12 | 7.5~13.5 | 1 | 12 | 3500 | 110.69 | 65.11 | 19.28 | 0.557 | 54.7 |
| CLB12025H24 | 24 | 18~26.5 | 0.48 | 11.52 | 3500 | 110.69 | 65.11 | 19.28 | 0.557 | 54.7 |
| CLB12025H48 | 48 | 36~54 | 0.23 | 11.04 | 3500 | 110.69 | 65.11 | 19.28 | 0.557 | 54.7 |
