DC Blower Fan

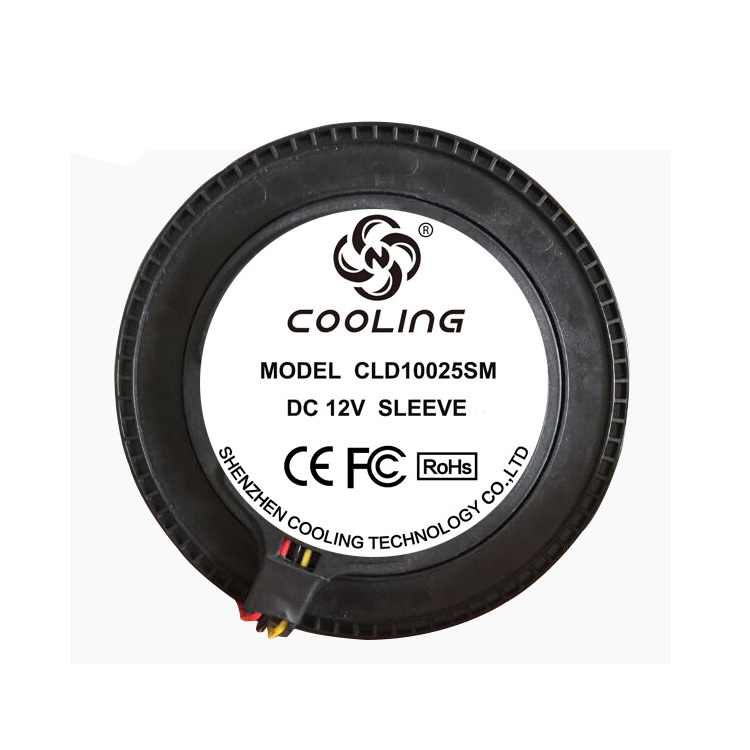

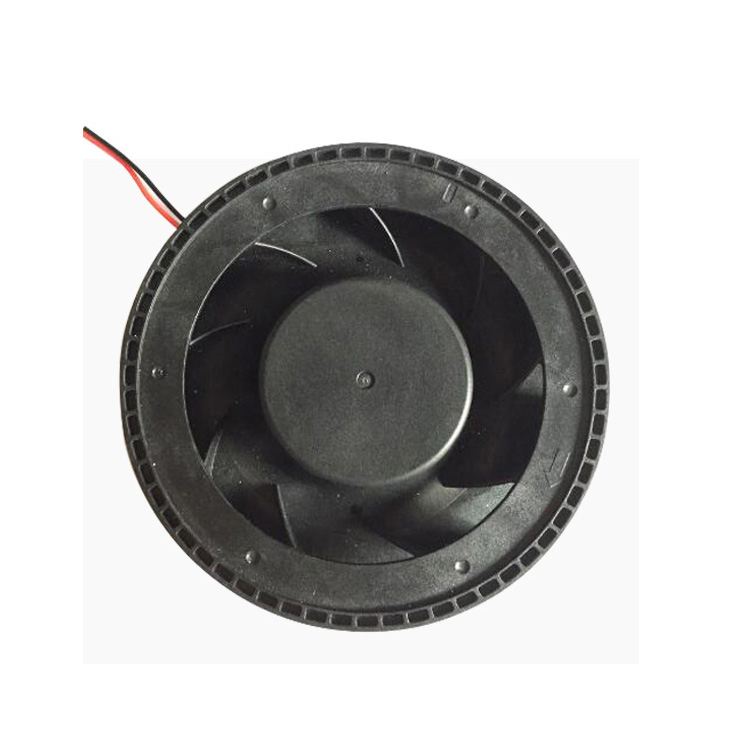

10025 12V 24VDC Centrifugal Fan (φ100X25mm) Cooling Fan

  • Product description: 10025 – DC Centrifugal Fan φ100X25mm 12V 24VDC Fan with Dual Ball Bearing 1.222m³/min 43.5CFM - DC Brushless fan & quiet cooling solutions from Cooling Technology.
  • INQUIRY

φ100X25mm 12V 24VDC Cooling Fan



Product Attributes

l Size / Dimension: φ100X25mm

l Voltage - Rated12VDC / 24VDC

l Bearing Type: Dual Ball Bearing

l Air Flow: 0.679 ~ 1.222 m³/min(24.1 ~ 43.5 CFM

l Static Pressure: 13.16 ~ 23.69 mm H2O(0.518 ~ 0.923 in H2O

l Noise: 31 – 55.9 dB(A)

l RPM: 2500 ~ 4500 RPM

l Current Rating (Amps): 0.15 ~ 0.53A

l Voltage Range: 7.5 ~ 13.5VDC / 18 ~ 26.5VDC

l Material - Frame: Plastic (Flammability: UL94V-0)

l Material - Blade: Plastic (Flammability: UL94V-0)

l Power (Watts)3.48 ~ 6.48 W

l Weight: 121g



Certifications:

CE Listed

FCC Listed

REACH Compliant



Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLB10025L12 12 7.5~13.5 0.29 3.48 2500 0.679 24.1 13.16 0.518 31.0
CLB10025M12 12 7.5~13.5 0.35 4.2 3000 0.814 29.0 15.79 0.622 37.2
CLB10025H12 12 7.5~13.5 0.41 4.92 3500 0.950 33.8 18.42 0.725 43.5
CLB10025HH12 12 7.5~13.5 0.47 5.64 4000 1.086 38.6 21.06 0.829 49.7
CLB10025VH12 12 7.5~13.5 0.53 6.36 4500 1.222 43.5 23.69 0.923 55.9
CLB10025L24 24 18~26.5 0.15 3.6 2500 0.679 24.1 13.16 0.518 31.0
CLB10025M24 24 18~26.5 0.18 4.32 3000 0.814 29.0 15.79 0.622 37.2
CLB10025H24 24 18~26.5 0.21 5.04 3500 0.950 33.8 18.42 0.725 43.5
CLB10025HH24 24 18~26.5 0.24 5.76 4000 1.086 38.6 21.06 0.829 49.7
CLB10025VH24 24 18~26.5 0.27 6.48 4500 1.222 43.5 23.69 0.923 55.9
