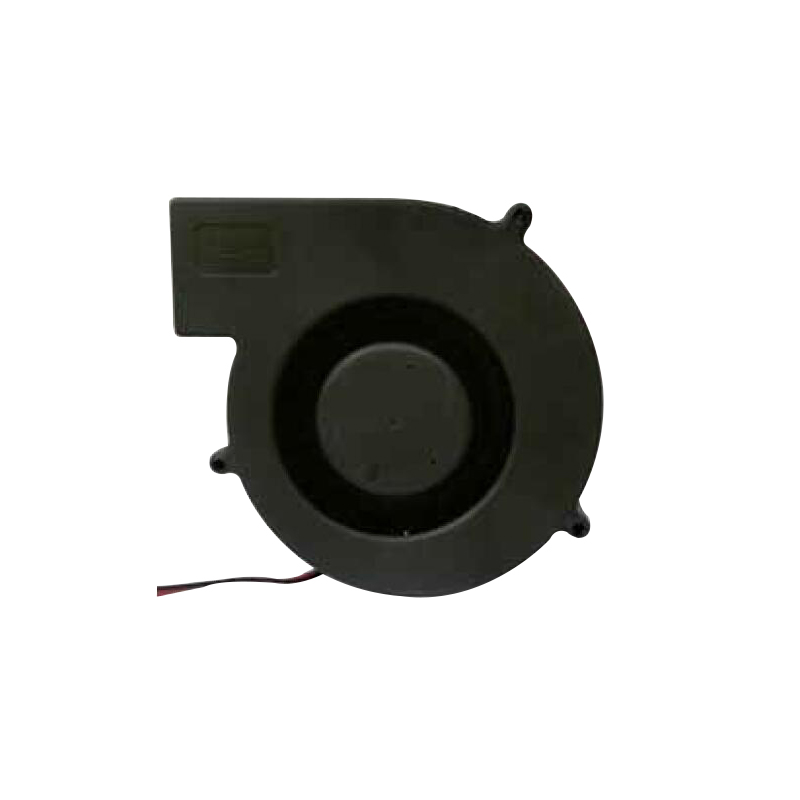

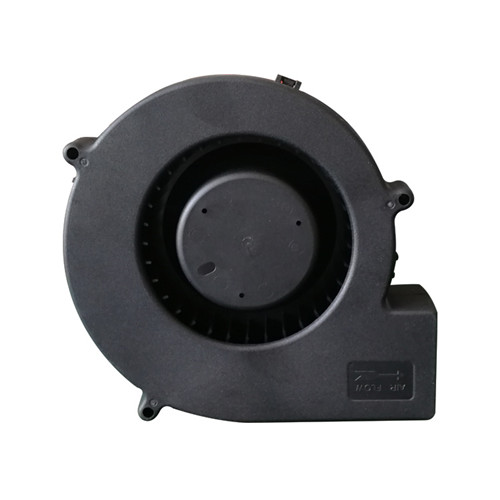

140x140x40mm 12V 24V 48VDC Cooling Blower
Product Attributes
l Size / Dimension: 140x140x40mm
l Voltage - Rated：12VDC / 24VDC / 48VDC
l Bearing Type: Sleeve / Hydraulic / Ball Bearing
l Air Flow: 1.058 ~ 2.489m³/min（37.3 ~ 87.9 CFM）
l Static Pressure: 8.20 ~ 59.15 mm H2O（0.323 ~ 2.329 in H2O）
l Noise: ＜56.0 ~ 71.9 dB(A)
l RPM: 2000 / 4500 RPM
l Current Rating (Amps): 0.125 ~ 5.1A
l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~54VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：6 ~ 61.2W
l Weight: 353g
Certifications:
CE & FCC Listed
REACH Compliant
Model
Rated Voltage
Operating Voltage Range
Rated Current
Rated
Input Power
Speed
Maximum Air Flow
Maximum Air Pressure
Noise
PART.NO.
VDC
VDC
Amp
Watt
R.P.M
M³/min
CFM
mmH2O
InH2O
dB-A
CLB14040L12X
12
7~13.5
0.5
6
2000
1.058
37.3
8.20
0.323
56.0
CLB14040M12X
12
7~13.5
1.4
16.8
2500
1.294
45.7
12.19
0.480
64.2
CLB14040H12X
12
7~13.5
2.3
27.6
3000
1.549
54.7
17.74
0.698
65.7
CLB14040HH12X
12
7~13.5
3.2
38.4
3500
1.926
68.0
33.75
1.329
68.9
CLB14040VH12X
12
7~13.5
4.2
50.4
4000
2.164
76.4
45.48
1.791
70.0
CLB14040HV12X
12
7~13.5
5.1
61.2
4500
2.489
87.9
59.15
2.329
71.9
CLB14040L24X
24
18~26.5
0.25
6
2000
1.058
37.3
8.20
0.323
56.0
CLB14040M24X
24
18~26.5
0.7
16.8
2500
1.294
45.7
12.19
0.480
64.2
CLB14040H24X
24
18~26.5
1.15
27.6
3000
1.549
54.7
17.74
0.698
65.7
CLB14040HH24X
24
18~26.5
1.6
38.4
3500
1.926
68.0
33.75
1.329
68.9
CLB14040VH24X
24
18~26.5
2.1
50.4
4000
2.164
76.4
45.48
1.791
70.0
CLB14040HV24X
24
18~26.5
2.55
61.2
4500
2.489
87.9
59.15
2.329
71.9
CLB14040L48X
48
36~54
0.125
6
2000
1.058
37.3
8.20
0.323
56.0
CLB14040M48X
48
36~54
0.35
16.8
2500
1.294
45.7
12.19
0.480
64.2
CLB14040H48X
48
36~54
0.575
27.6
3000
1.549
54.7
17.74
0.698
65.7
CLB14040HH48X
48
36~54
0.8
38.4
3500
1.926
68.0
33.75
1.329
68.9
CLB14040VH48X
48
36~54
1.05
50.4
4000
2.164
76.4
45.48
1.791
70.0
CLB14040HV48X
48
36~54
1.275
61.2
4500
2.489
87.9
59.15
2.329
71.9
