  • Product description: 2006 - 20x20x6mm 5V 12VDC Blower with Sleeve/Hydraulic Bearing 0.006m³/min 0.21CFM - DC brushless blower fans and quiet cooling solutions from Cooling Technology.
  • INQUIRY

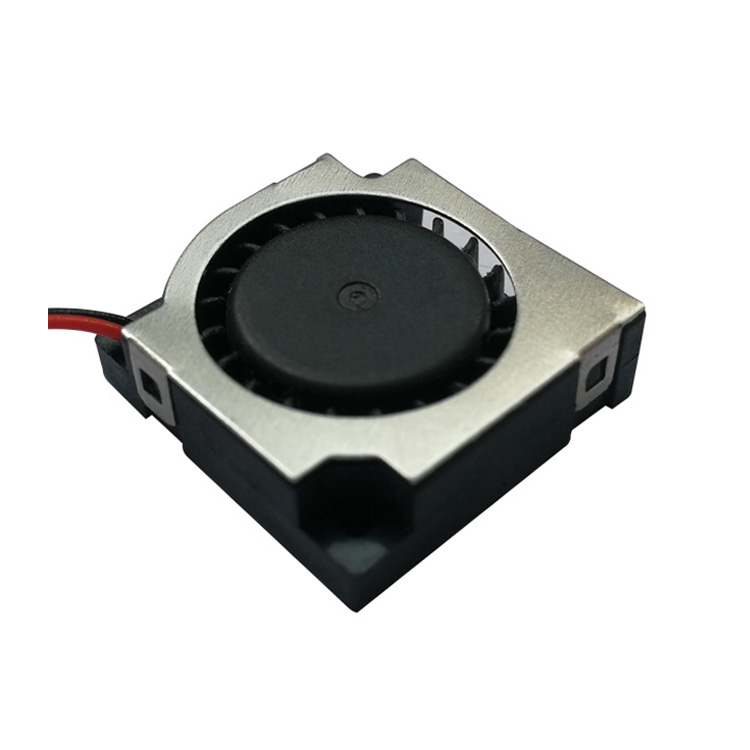

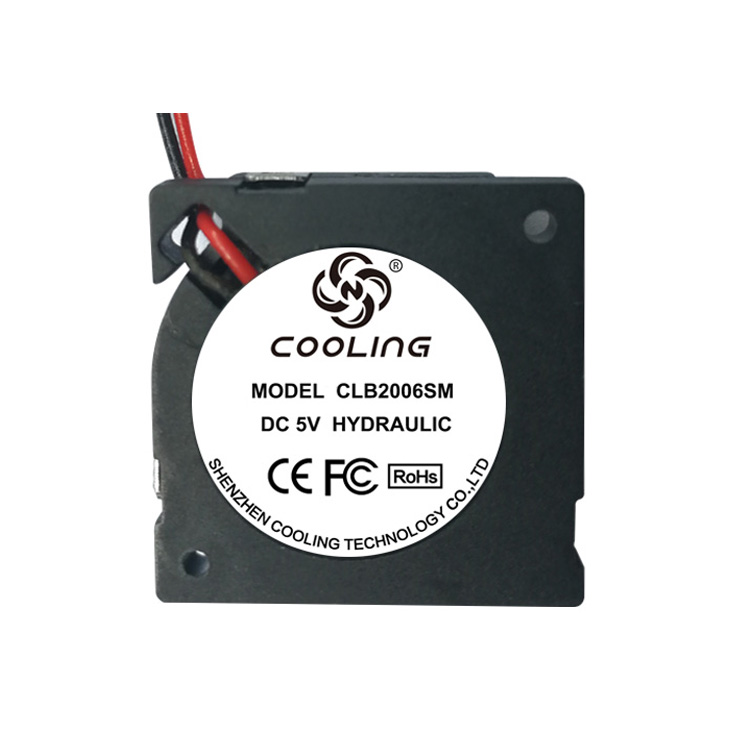

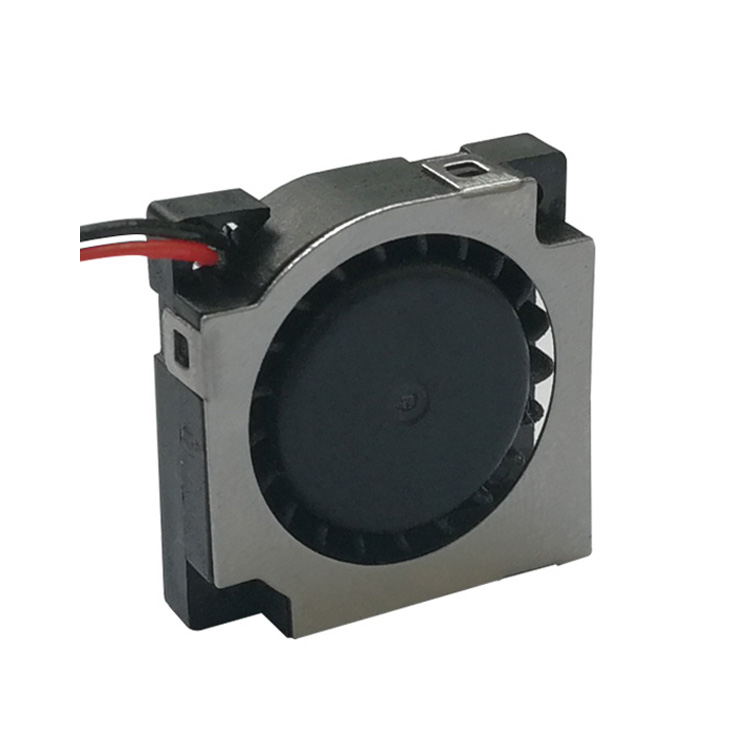

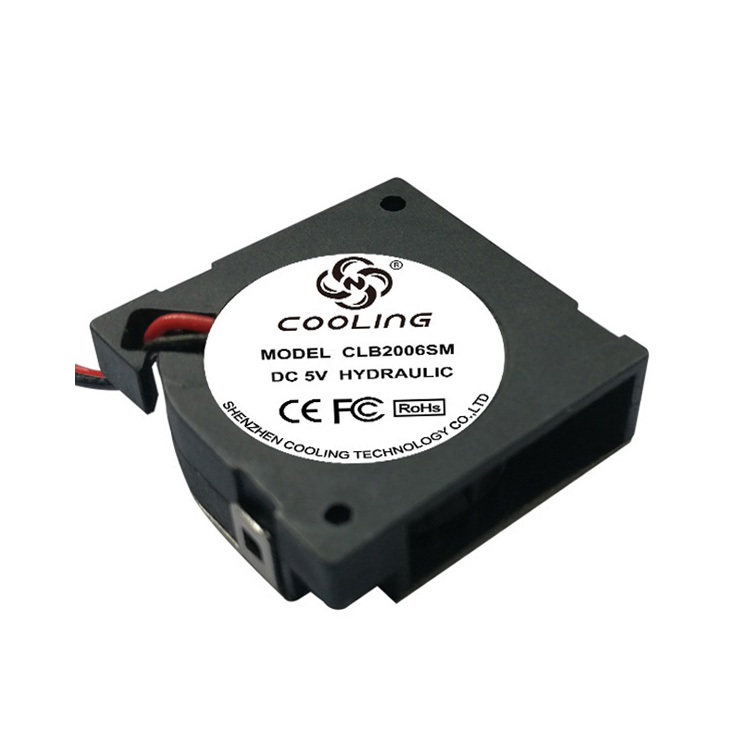

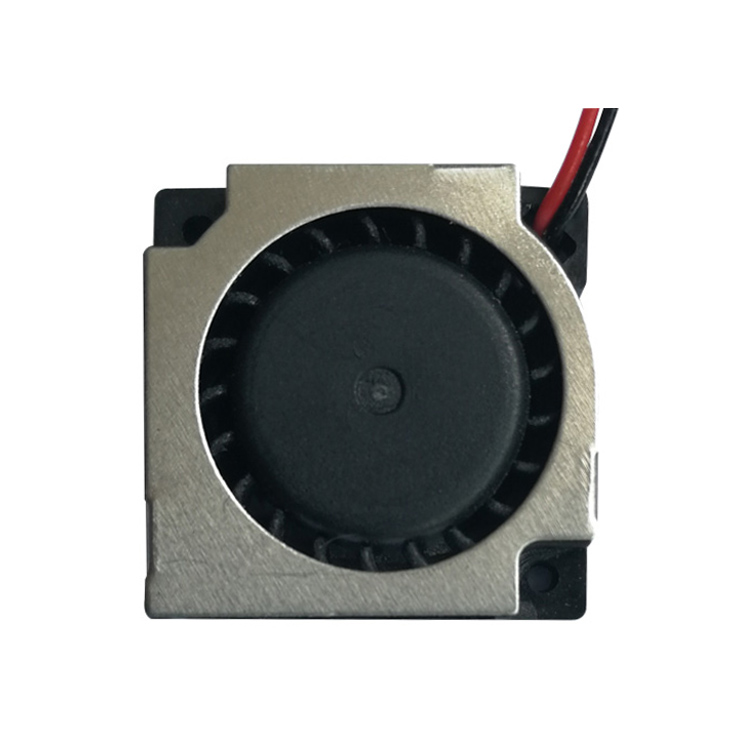

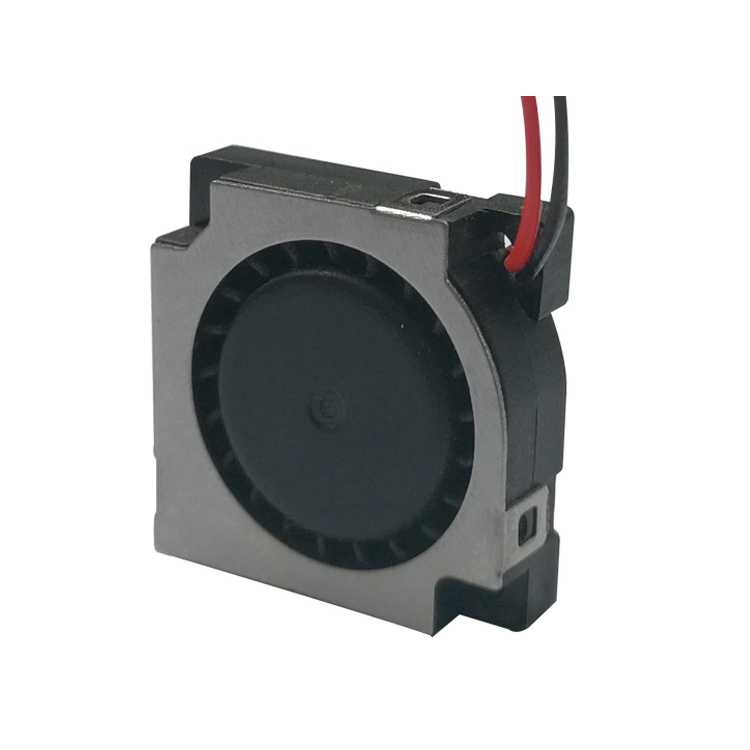

20x20x6mm 5V 12VDC Cooling Blower Fan


Product Attributes

Size / Dimension: 20x20x6mm

Voltage - Rated5VDC / 12VDC

Bearing Type: Sleeve / Hydraulic

Air Flow: 0.006 m³/min(0.21 CFM

Static Pressure: 1.21 mm H2O(0.048 in H2O

Noise: 18 dB(A)

RPM: 10000 RPM

Current Rating (Amps): 0.017 ~ 0.04A

Voltage Range: 3 ~ 6VDC / 7.5 ~ 13.5VDC

Material - Frame: Plastic (Flammability: UL94V-0)

Material - Blade: Plastic (Flammability: UL94V-0)

Power (Watts)0.2 W

Weight: 6g



Certifications:

CE & FCC Listed

REACH Compliant



Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLB2006M05 X 5 3~6 0.04 0.2 10000 0.006 0.21 1.21 0.048 18
CLB2006M12 X 12 7.5~13.5 0.017 0.2 10000 0.006 0.21 1.21 0.048 18
