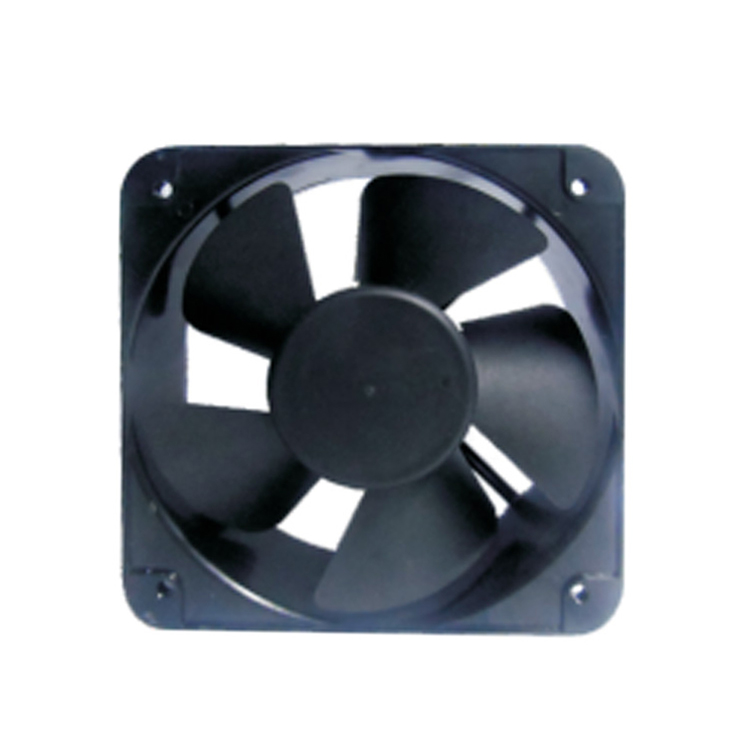

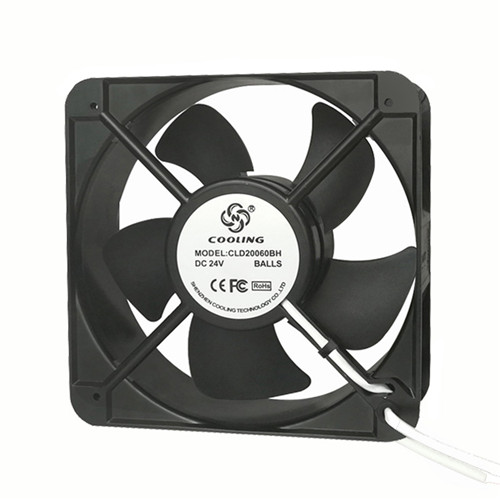

200x200x60mm 12V 24V 48VDC Cooling Fan
Product Attributes
l Size / Dimension: 200x200x60mm
l Voltage - Rated：12VDC / 24VDC / 48VDC
l Bearing Type: Sleeve / Dual Ball Bearing
l Air Flow: 11.38 ~18.341 m³/min（400.58 ~ 645.61 CFM）
l Static Pressure: 6.65 ~ 22.02 mm H2O（0.262 ~ 0.867 in H2O）
l Noise: ＜54.6 – 68.5 dB(A)
l RPM: 2000 ~ 3500 RPM
l Current Rating (Amps): 0.37 ~ 7.4A
l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC
l Material - Frame: Aluminum (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：19.8 ~ 80.16 W
l Weight: 2400g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLD20060M12X | 12 | 7~13.5 | 1.65 | 19.8 | 2000 | 11.38 | 400.58 | 6.65 | 0.262 | 54.6 |
| CLD20060H12X | 12 | 7~13.5 | 2.92 | 35.04 | 2500 | 14.585 | 513.39 | 12.15 | 0.478 | 60.0 |
| CLD20060HH12X | 12 | 7~13.5 | 4.73 | 56.76 | 3000 | 16.673 | 586.69 | 17.28 | 0.68 | 63.6 |
| CLD20060VH12X | 12 | 7~13.5 | 7.4 | 88.8 | 3500 | 18.341 | 645.61 | 22.02 | 0.867 | 68.5 |
| CLD20060M24X | 24 | 18~26.5 | 0.78 | 18.82 | 2000 | 11.38 | 400.58 | 6.65 | 0.262 | 54.6 |
| CLD20060H24X | 24 | 18~26.5 | 1.39 | 33.36 | 2500 | 14.585 | 513.39 | 12.15 | 0.478 | 60.0 |
| CLD20060HH24X | 24 | 18~26.5 | 2.25 | 54.0 | 3000 | 16.673 | 586.69 | 17.28 | 0.68 | 63.6 |
| CLD20060VH24X | 24 | 18~26.5 | 3.52 | 84.38 | 3500 | 18.341 | 645.61 | 22.02 | 0.867 | 68.5 |
| CLD20060M48X | 48 | 36~54 | 0.37 | 17.86 | 2000 | 11.38 | 400.58 | 6.65 | 0.262 | 54.6 |
| CLD20060H48X | 48 | 36~54 | 0.66 | 31.68 | 2500 | 14.585 | 513.39 | 12.15 | 0.478 | 60.0 |
| CLD20060HH48X | 48 | 36~54 | 1.07 | 51.36 | 3000 | 16.673 | 586.69 | 17.28 | 0.68 | 63.6 |
| CLD20060VHH48 | 48 | 36~54 | 1.67 | 80.16 | 3500 | 18.341 | 645.61 | 22.02 | 0.867 | 68.5 |
