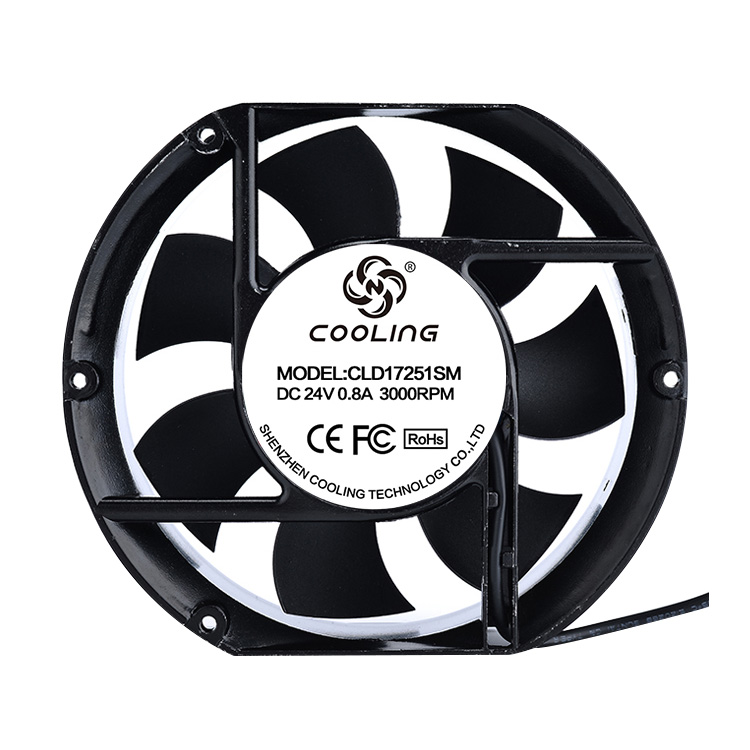

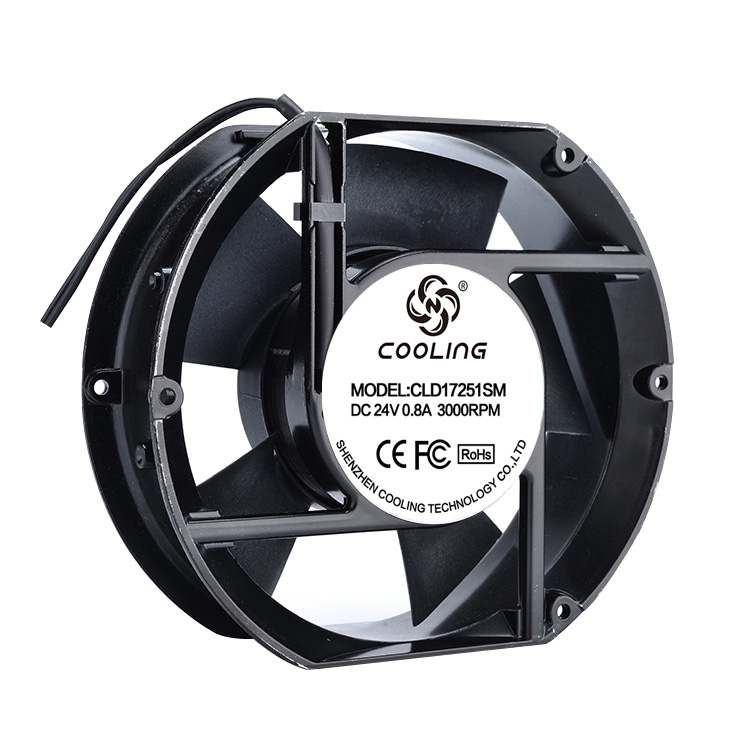

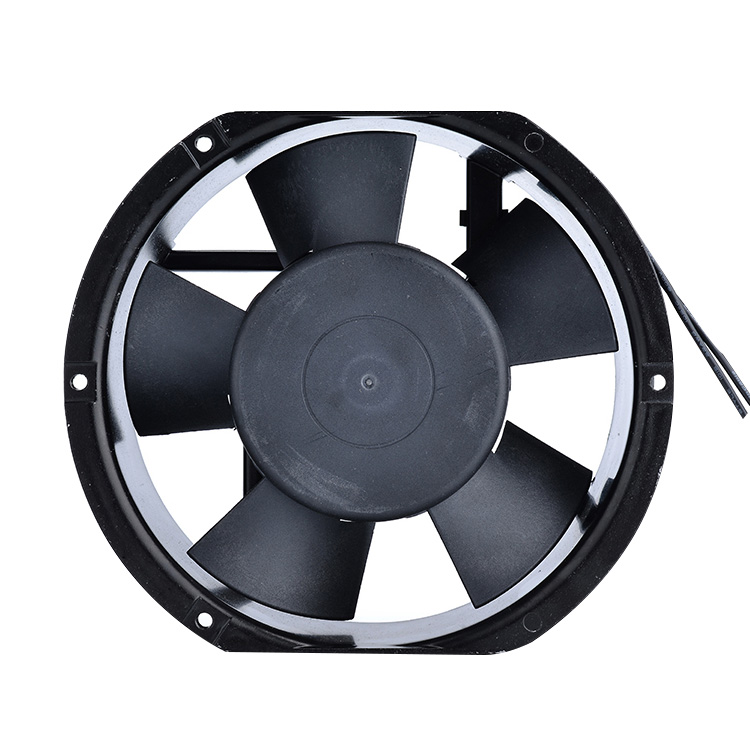

172X150X51mm 12V 24V 48VDC Cooling Fan
Product Attributes
l Size / Dimension: 172X150X51mm
l Voltage - Rated：12VDC / 24VDC / 48VDC
l Bearing Type: Dual Ball Bearing
l Air Flow: 4.877 ~10.243 m³/min（172.21 ~ 361.69 CFM）
l Static Pressure: 10.92 ~ 45.36 mm H2O（0.430 ~ 1.786 in H2O）
l Noise: ＜56.1 – 71.4 dB(A)
l RPM: 2500 ~ 5000 RPM
l Current Rating (Amps): 0.2 ~ 10A
l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC
l Material - Frame: Aluminum (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：9.6 ~ 120 W
l Weight: 710g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLD17251L12X | 12 | 7~13.5 | 0.8 | 9.6 | 2500 | 4.877 | 172.21 | 10.92 | 0.430 | 56.1 |
| CLD17251M12X | 12 | 7~13.5 | 2.4 | 28.8 | 3000 | 5.930 | 209.40 | 15.33 | 0.604 | 58.3 |
| CLD17251H12X | 12 | 7~13.5 | 4.41 | 53 | 3500 | 7.026 | 248.09 | 21.33 | 0.840 | 62.5 |
| CLD17251HH12X | 12 | 7~13.5 | 6 | 72 | 4000 | 8.015 | 283.00 | 27.36 | 1.077 | 65.5 |
| CLD17251VH12X | 12 | 7~13.5 | 7.6 | 91.2 | 4500 | 9.220 | 325.57 | 37.57 | 1.479 | 68.2 |
| CLD17251HV12X | 12 | 7~13.5 | 10 | 120 | 5000 | 10.243 | 361.69 | 45.36 | 1.786 | 71.4 |
| CLD17251L24X | 24 | 18~26.5 | 0.4 | 9.6 | 2500 | 4.877 | 172.21 | 10.92 | 0.430 | 56.1 |
| CLD17251M24X | 24 | 18~26.5 | 1.2 | 28.8 | 3000 | 5.930 | 209.40 | 15.33 | 0.604 | 58.3 |
| CLD17251H24X | 24 | 18~26.5 | 2.2 | 53 | 3500 | 7.026 | 248.09 | 21.33 | 0.840 | 62.5 |
| CLD17251HH24X | 24 | 18~26.5 | 3 | 72 | 4000 | 8.015 | 283.00 | 27.36 | 1.077 | 65.5 |
| CLD17251VH24X | 24 | 18~26.5 | 3.8 | 91.2 | 4500 | 9.220 | 325.57 | 37.57 | 1.479 | 68.2 |
| CLD17251HV24X | 24 | 18~26.5 | 5 | 120 | 5000 | 10.243 | 361.69 | 45.36 | 1.786 | 71.4 |
| CLD17251L48X | 48 | 36~54 | 0.2 | 9.6 | 2500 | 4.877 | 172.21 | 10.92 | 0.430 | 56.1 |
| CLD17251M48X | 48 | 36~54 | 0.6 | 28.8 | 3000 | 5.930 | 209.40 | 15.33 | 0.604 | 58.3 |
| CLD17251H48X | 48 | 36~54 | 1.1 | 53 | 3500 | 7.026 | 248.09 | 21.33 | 0.840 | 62.5 |
| CLD17251HH48X | 48 | 36~54 | 1.5 | 72 | 4000 | 8.015 | 283.00 | 27.36 | 1.077 | 65.5 |
| CLD17251VH48X | 48 | 36~54 | 1.9 | 91.2 | 4500 | 9.220 | 325.57 | 37.57 | 1.479 | 68.2 |
| CLD17251HV48 X | 48 | 36~54 | 2.5 | 120 | 5000 | 10.243 | 361.69 | 45.36 | 1.786 | 71.4 |
