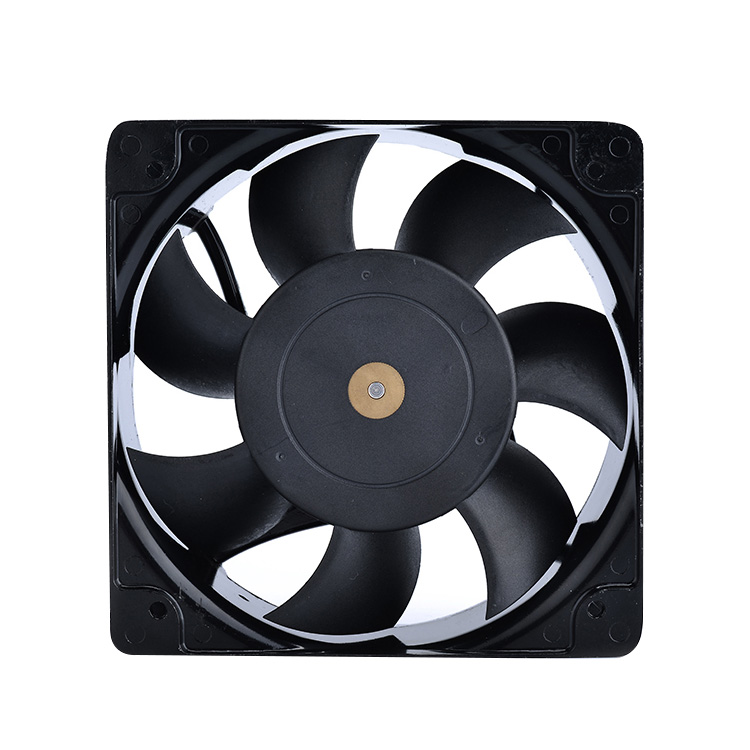

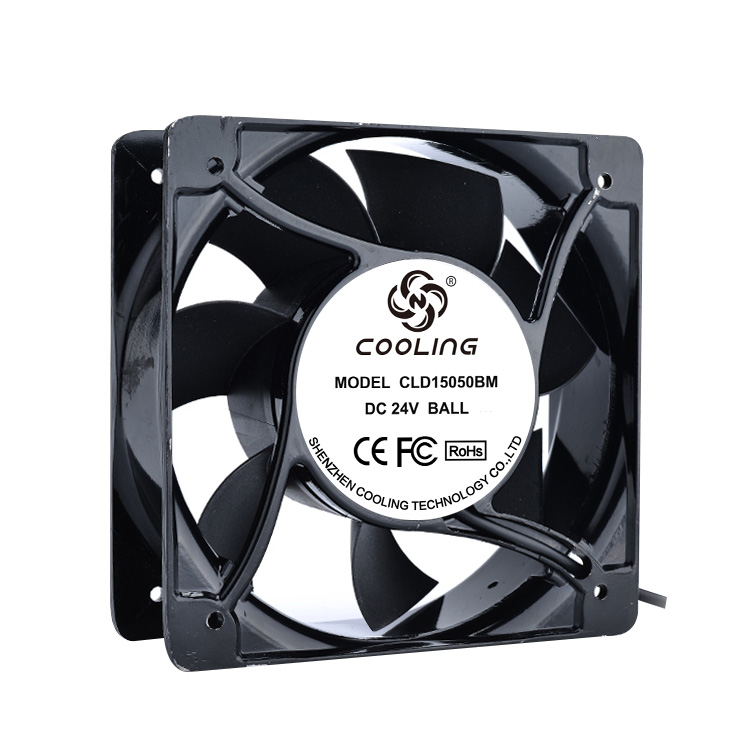

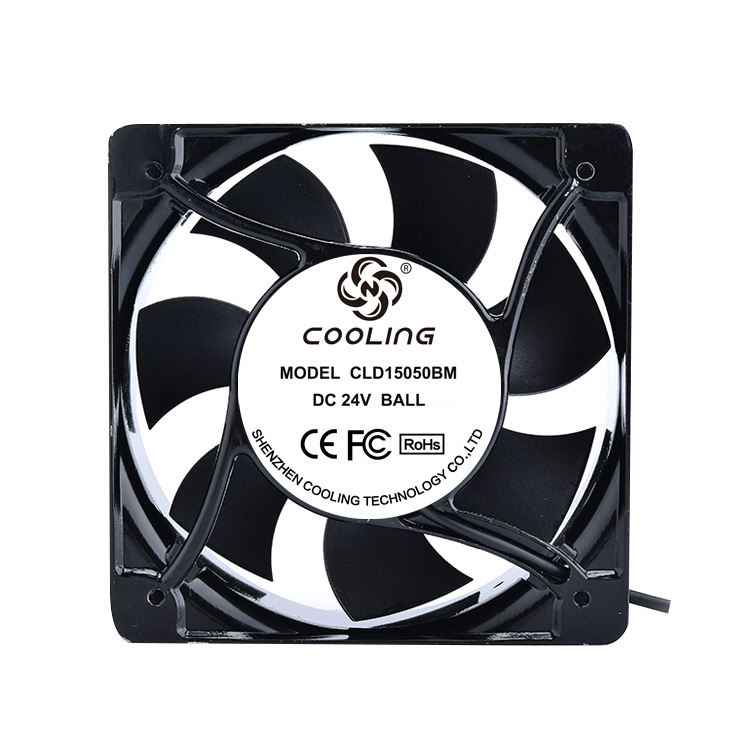

15050 12V 24V 48VDC (150X150X50mm) Cooling Fan

  • Product description: 15050 - 150X150X50mm 12V 24V 48VDC Axial Fan with Dual Ball Bearing 10.243m³/min 361.69CFM - DC Brushless fan and quiet cooling solutions from Cooling Technology.
  • INQUIRY

150X150X50mm 12V 24V 48VDC Cooling Fan


Product Attributes

Size / Dimension: 150X150X50mm

Voltage - Rated12VDC / 24VDC / 48VDC

Bearing Type: Dual Ball Bearing

Air Flow: 4.877 ~10.243 m³/min(172.21 ~ 361.69 CFM

Static Pressure: 10.92 ~ 45.36 mm H2O(0.430 ~ 1.786 in H2O

Noise: 56.1 – 71.4 dB(A)

RPM: 2500 ~ 5000 RPM

Current Rating (Amps): 0.2 ~ 10A

Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC

Material - Frame: Aluminum (Flammability: UL94V-0)

Material - Blade: Plastic (Flammability: UL94V-0)

Power (Watts)9.6 ~ 120 W

Weight: 700g



Certifications:

CE Listed

FCC Listed

REACH Compliant

Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLD15050L12X 12 7~13.5 0.8 9.6 2500 4.877 172.21 10.92 0.430 56.1
CLD15050M12X 12 7~13.5 2.4 28.8 3000 5.930 209.40 15.33 0.604 58.3
CLD15050H12X 12 7~13.5 4.41 53 3500 7.026 248.09 21.33 0.840 62.5
CLD15050HH12X 12 7~13.5 6 72 4000 8.015 283.00 27.36 1.077 65.5
CLD15050VH12X 12 7~13.5 7.6 91.2 4500 9.220 325.57 37.57 1.479 68.2
CLD15050HV12X 12 7~13.5 10 120 5000 10.243 361.69 45.36 1.786 71.4
CLD15050L24X 24 18~26.5 0.4 9.6 2500 4.877 172.21 10.92 0.430 56.1
CLD15050M24X 24 18~26.5 1.2 28.8 3000 5.930 209.40 15.33 0.604 58.3
CLD15050H24X 24 18~26.5 2.2 53 3500 7.026 248.09 21.33 0.840 62.5
CLD15050HH24X 24 18~26.5 3 72 4000 8.015 283.00 27.36 1.077 65.5
CLD15050VH24X 24 18~26.5 3.8 91.2 4500 9.220 325.57 37.57 1.479 68.2
CLD15050HV24X 24 18~26.5 5 120 5000 10.243 361.69 45.36 1.786 71.4
CLD15050L48X 48 36~54 0.2 9.6 2500 4.877 172.21 10.92 0.430 56.1
CLD15050M48X 48 36~54 0.6 28.8 3000 5.930 209.40 15.33 0.604 58.3
CLD15050H48X 48 36~54 1.1 53 3500 7.026 248.09 21.33 0.840 62.5
CLD15050HH48X 48 36~54 1.5 72 4000 8.015 283.00 27.36 1.077 65.5
CLD15050VH48X 48 36~54 1.9 91.2 4500 9.220 325.57 37.57 1.479 68.2
CLD15050HV48 X 48 36~54 2.5 120 5000 10.243 361.69 45.36 1.786 71.4
