DC BLOWER FAN

  • 3510 5V 12VDC (35X35X10mm) Brushless Blower | Cooling Fan
  • 3510 5V 12VDC (35X35X10mm) Brushless Blower | Cooling Fan
  • 3510 5V 12VDC (35X35X10mm) Brushless Blower | Cooling Fan
3510 5V 12VDC (35X35X10mm) Brushless Blower | Cooling Fan3510 5V 12VDC (35X35X10mm) Brushless Blower | Cooling Fan3510 5V 12VDC (35X35X10mm) Brushless Blower | Cooling Fan

3510 5V 12VDC (35X35X10mm) Brushless Blower | Cooling Fan

  • Product description: 3510 - 35X35X10mm 5V 12VDC Blower Sleeve/Hydraulic/Ball Bearing 0.067m³/min 2.38CFM - DC brushless blower fans and quiet cooling solutions from Cooling Technology.
  • INQUIRY

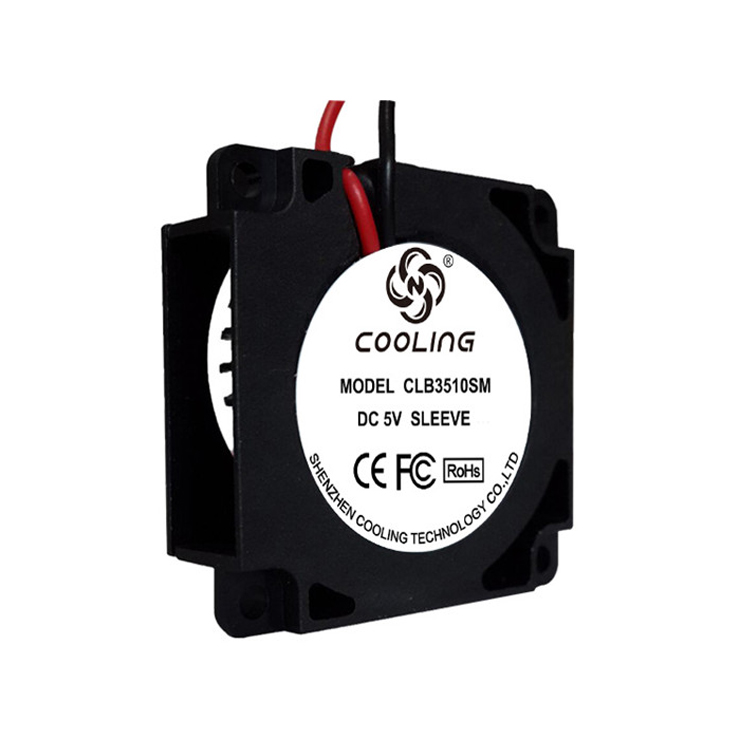

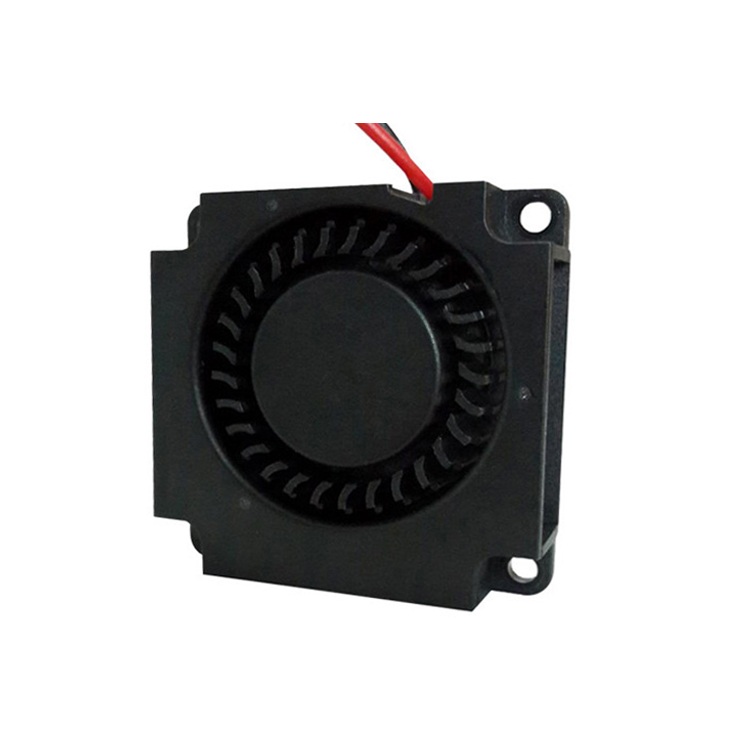

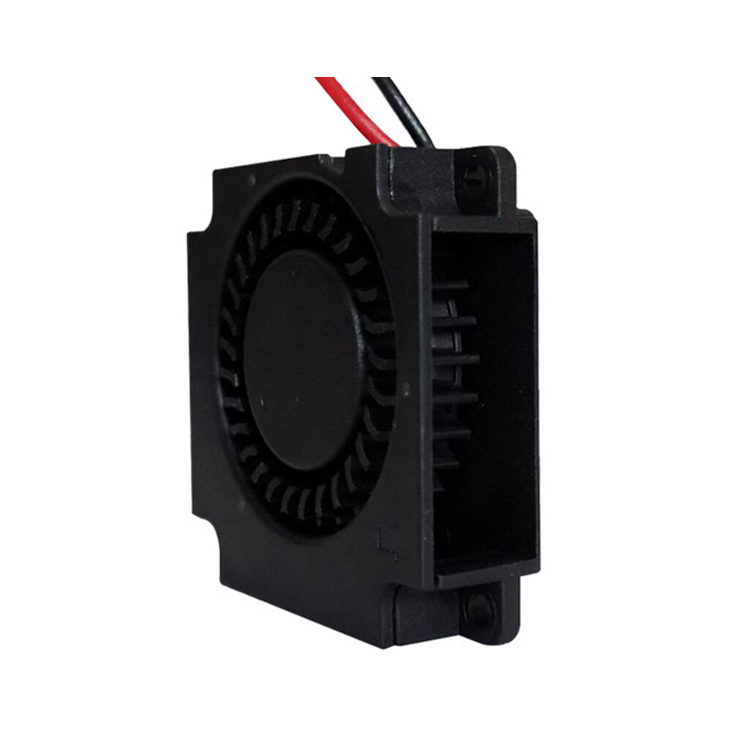

35X35X10mm 5V 12VDC Cooling Blower



Product Attributes

Size / Dimension: 35X35X10mm

Voltage - Rated5VDC / 12VDC

Bearing Type: Sleeve / Hydraulic / Ball Bearing

Air Flow: 0.035 ~ 0.067m³/min(1.25 ~ 2.38 CFM

Static Pressure: 2.67 ~ 11.58 mm H2O(0.105 ~ 0.456 in H2O

Noise: 25.4 ~ 40.0 dB(A)

RPM: 5500 / 10000 RPM

Current Rating (Amps): 0.042 ~ 0.28A

Voltage Range: 1.8 ~ 3.6 ~ 6.8VDC / 7 ~ 13.5VDC

Material - Frame: Plastic (Flammability: UL94V-0)

Material - Blade: Plastic (Flammability: UL94V-0)

Power (Watts)0.5 ~ 1.4W

Weight: 8.5g



Certifications:

CE & FCC Listed

REACH Compliant



Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLB3510LL05X 5 1.8~3.6~6.8 0.1 0.5 5500 0.035 1.25 2.67 0.105 25.4
CLB3510L05X 5 1.8~3.6~6.8 0.12 0.6 6000 0.040 1.42 3.62 0.143 27.5
CLB3510LV05X 5 1.8~3.6~6.8 0.13 0.65 6500 0.041 1.45 4.25 0.167 29.6
CLB3510 M05X 5 1.8~3.6~6.8 0.14 0.7 7000 0.045 1.60 5.20 0.205 31.6
CLB3510MV05X 5 1.8~3.6~6.8 0.16 0.8 7500 0.047 1.67 5.87 0.231 33.5
CLB3510VM05X 5 1.8~3.6~6.8 0.18 0.9 8000 0.053 1.86 6.92 0.272 34.9
CLB3510H05X 5 1.8~3.6~6.8 0.2 1.0 8500 0.056 1.98 8.05 0.317 36.1
CLB3510HH05X 5 1.8~3.6~6.8 0.22 1.1 9000 0.061 2.14 9.10 0.358 37.4
CLB3510HV05X 5 1.8~3.6~6.8 0.25 1.25 9500 0.064 2.27 10.18 0.401 39.1
CLB3510VH05X 5 1.8~3.6~6.8 0.28 1.4 10000 0.067 2.38 11.58 0.456 40.0
CLB3510LL12X 12 7~13.5 0.042 0.5 5500 0.035 1.25 2.67 0.105 25.4
CLB3510L12X 12 7~13.5 0.05 0.6 6000 0.040 1.42 3.62 0.143 27.5
CLB3510LV12X 12 7~13.5 0.054 0.65 6500 0.041 1.45 4.25 0.167 29.6
CLB3510M12X 12 7~13.5 0.058 0.7 7000 0.045 1.60 5.20 0.205 31.6
CLB3510MV12X 12 7~13.5 0.067 0.8 7500 0.047 1.67 5.87 0.231 33.5
CLB3510VM12X 12 7~13.5 0.075 0.9 8000 0.053 1.86 6.92 0.272 34.9
CLB3510H12X 12 7~13.5 0.083 1.0 8500 0.056 1.98 8.05 0.317 36.1
CLB3510HH12 X 12 7~13.5 0.092 1.1 9000 0.061 2.14 9.10 0.358 37.4
CLB3510HV12X 12 7~13.5 0.104 1.25 9500 0.064 2.27 10.18 0.401 39.1
CLB3510VH12 X 12 7~13.5 0.117 1.4 10000 0.067 2.38 11.58 0.456 40.0
