DC BLOWER FAN

  • 3010 5V 12VDC (30X30X10mm) Brushless Blower  Cooling Fan
  • 3010 5V 12VDC (30X30X10mm) Brushless Blower  Cooling Fan
  • 3010 5V 12VDC (30X30X10mm) Brushless Blower  Cooling Fan
3010 5V 12VDC (30X30X10mm) Brushless Blower  Cooling Fan3010 5V 12VDC (30X30X10mm) Brushless Blower  Cooling Fan3010 5V 12VDC (30X30X10mm) Brushless Blower  Cooling Fan

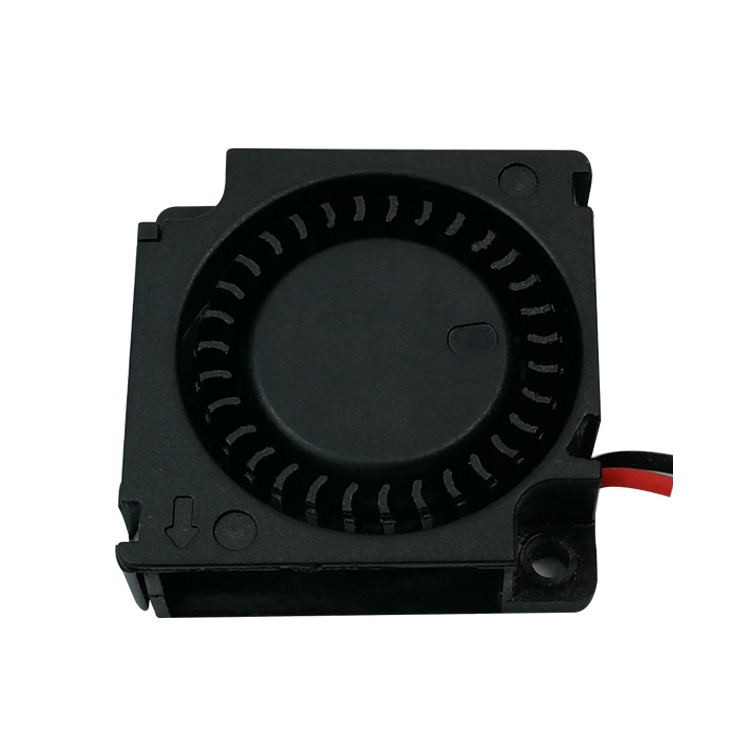

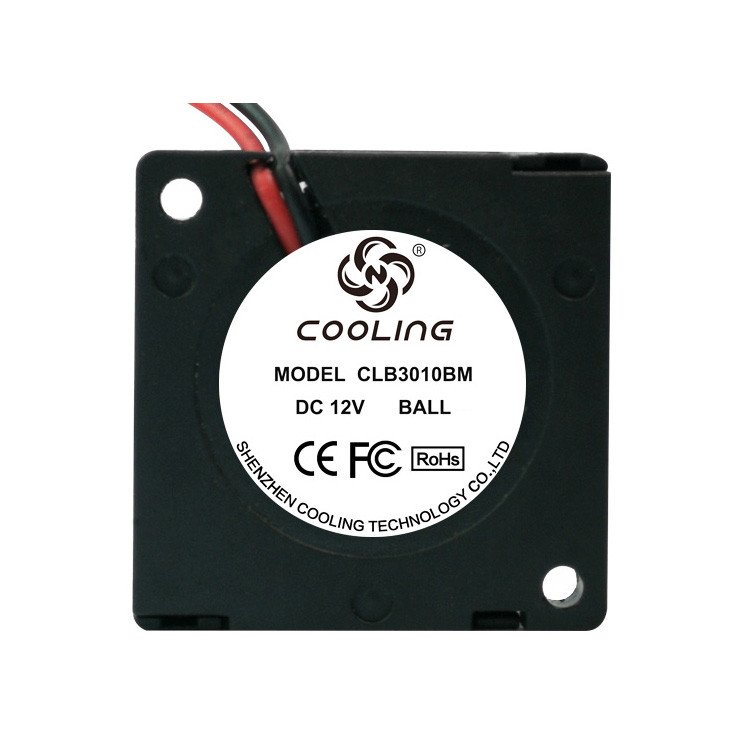

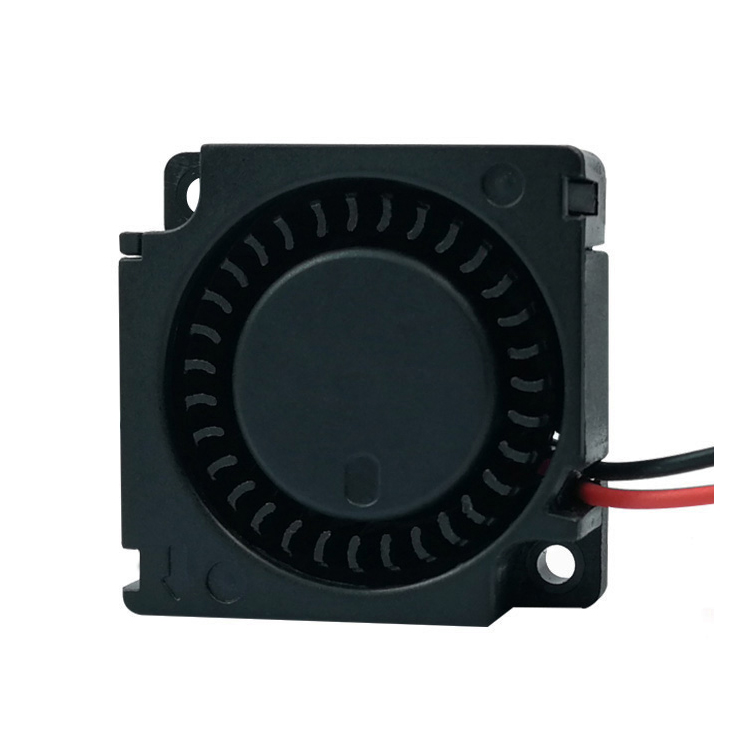

3010 5V 12VDC (30X30X10mm) Brushless Blower Cooling Fan

  • Product description: 3010 - 30X30X10mm 5V 12VDC Blower Sleeve/Hydraulic/Ball Bearing 0.039m³/min 1.39CFM - DC brushless blower fans and quiet cooling solutions from Cooling Technology.
  • INQUIRY

30X30X10mm 5V 12VDC Cooling Blower



Product Attributes

Size / Dimension: 30X30X10mm

Voltage - Rated5VDC / 12VDC

Bearing Type: Sleeve / Hydraulic / Ball Bearing

Air Flow: 0.025 ~ 0.039m³/min(0.90 ~ 1.39 CFM

Static Pressure: 2.27 ~ 5.86 mm H2O(0.089 ~ 0.231 in H2O

Noise: 23.4 ~ 33.2 dB(A)

RPM: 5500 / 8500 RPM

Current Rating (Amps): 0.042 ~ 0.2A

Voltage Range: 1.8 ~ 3.6 ~ 6.8VDC / 7 ~ 13.5VDC

Material - Frame: Plastic (Flammability: UL94V-0)

Material - Blade: Plastic (Flammability: UL94V-0)

Power (Watts)0.5 ~ 1.0W

Weight: 8.5g



Certifications:

CE & FCC Listed

REACH Compliant



Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLB3010LL05X 5 1.8~3.6~6.8 0.1 0.5 5500 0.025 0.90 2.27 0.089 23.4
CLB3010L05X 5 1.8~3.6~6.8 0.12 0.6 6000 0.030 1.07 2.86 0.113 25.0
CLB3010LV05X 5 1.8~3.6~6.8 0.13 0.65 6500 0.033 1.16 3.35 0.132 26.5
CLB3010M05X 5 1.8~3.6~6.8 0.14 0.7 7000 0.035 1.23 3.91 0.154 28.7
CLB3010MV05X 5 1.8~3.6~6.8 0.16 0.8 7500 0.037 1.31 4.49 0.177 30.0
CLB3010VM05X 5 1.8~3.6~6.8 0.18 0.9 8000 0.038 1.36 5.31 0.209 31.7
CLB3010H05X 5 1.8~3.6~6.8 0.2 1.0 8500 0.039 1.39 5.86 0.231 33.2
CLB3010LL12X 12 7~13.5 0.042 0.5 5500 0.025 0.90 2.27 0.089 23.4
CLB3010L12X 12 7~13.5 0.05 0.6 6000 0.030 1.07 2.86 0.113 25.0
CLB3010LV12X 12 7~13.5 0.054 0.65 6500 0.033 1.16 3.35 0.132 26.5
CLB3010M12X 12 7~13.5 0.058 0.7 7000 0.035 1.23 3.91 0.154 28.7
CLB3010MV12 X 12 7~13.5 0.067 0.8 7500 0.037 1.31 4.49 0.177 30.0
CLB3010VM12 X 12 7~13.5 0.075 0.9 8000 0.038 1.36 5.31 0.209 31.7
CLB3010H12X 12 7~13.5 0.083 1.0 8500 0.039 1.39 5.86 0.231 33.2
