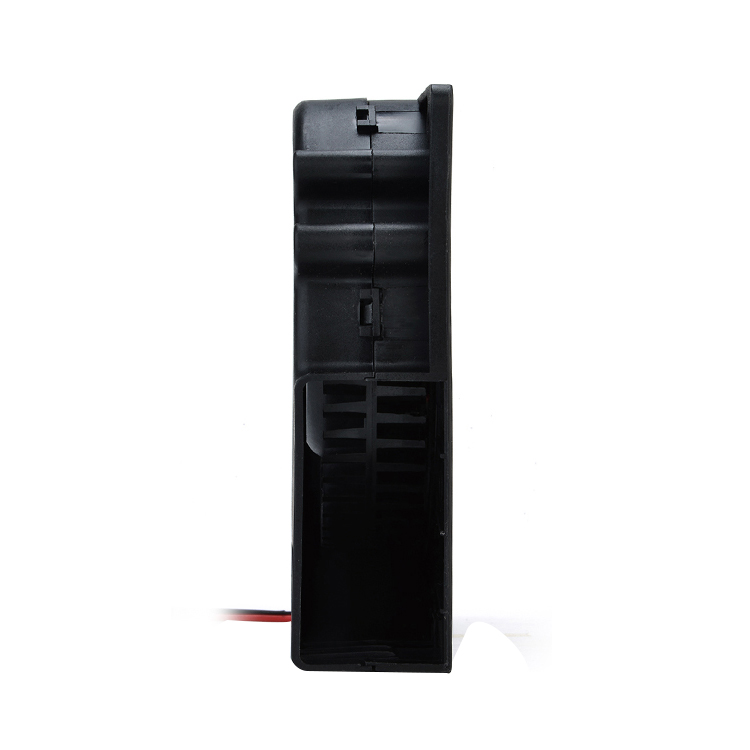

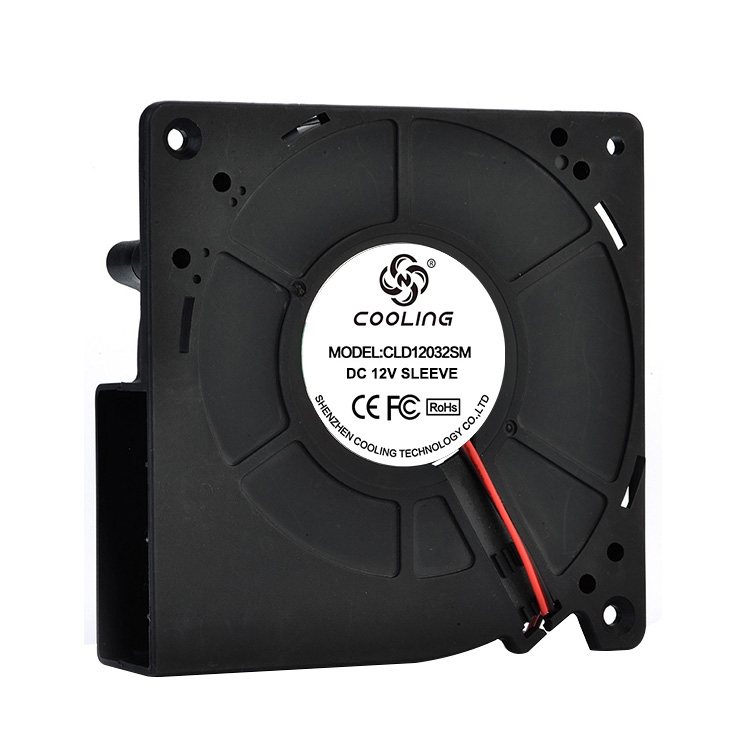

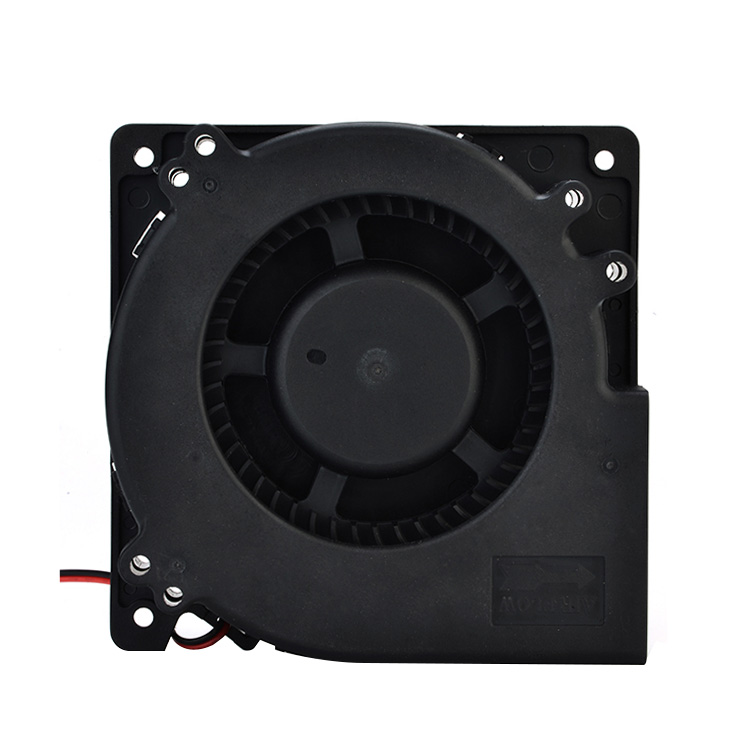

120x120x32mm 12V 24V 48VDC Cooling Blower
Product Attributes
l Size / Dimension: 120x120x32mm
l Voltage - Rated：12VDC / 24VDC / 48VDC
l Bearing Type: Sleeve / Hydraulic / Ball Bearing
l Air Flow: 0.751 ~ 1.189m³/min（26.5 ~ 41.9 CFM）
l Static Pressure: 20.25 ~ 48.47 mm H2O（0.797 ~ 1.908 in H2O）
l Noise: ＜48.2 ~ 59.9 dB(A)
l RPM: 2500 / 4000 RPM
l Current Rating (Amps): 0.13 ~ 2.2A
l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~54VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：6 ~ 26.4W
l Weight: 220g
Certifications:
CE & FCC Listed
REACH Compliant
Model
Rated Voltage
Operating Voltage Range
Rated Current
Rated
Input Power
Speed
Maximum Air Flow
Maximum Air Pressure
Noise
PART.NO.
VDC
VDC
Amp
Watt
R.P.M
M³/min
CFM
mmH2O
InH2O
dB-A
CLB12032L12X
12
7~13.5
0.5
6
2500
0.751
26.5
20.25
0.797
48.2
CLB12032M12X
12
7~13.5
1.1
13.2
3000
0.905
31.9
27.47
1.081
51.9
CLB12032H12X
12
7~13.5
1.7
20.1
3500
1.046
36.9
35.92
1.414
55.6
CLB12032HH12X
12
7~13.5
2.2
26.4
4000
1.189
41.9
48.47
1.908
59.9
CLB12032L24X
24
18~26.5
0.25
6
2500
0.751
26.5
20.25
0.797
48.2
CLB12032M24X
24
18~26.5
0.55
13.2
3000
0.905
31.9
27.47
1.081
51.9
CLB12032H24X
24
18~26.5
0.84
20.1
3500
1.046
36.9
35.92
1.414
55.6
CLB12032HH24X
24
18~26.5
1.1
26.4
4000
1.189
41.9
48.47
1.908
59.9
CLB12032L48X
48
36~54
0.13
6
2500
0.751
26.5
20.25
0.797
48.2
CLB12032M48X
48
36~54
0.28
13.2
3000
0.905
31.9
27.47
1.081
51.9
CLB12032H48X
48
36~54
0.42
20.1
3500
1.046
36.9
35.92
1.414
55.6
CLB12032HH48X
48
36~54
0.55
26.4
4000
1.189
41.9
48.47
1.908
59.9
