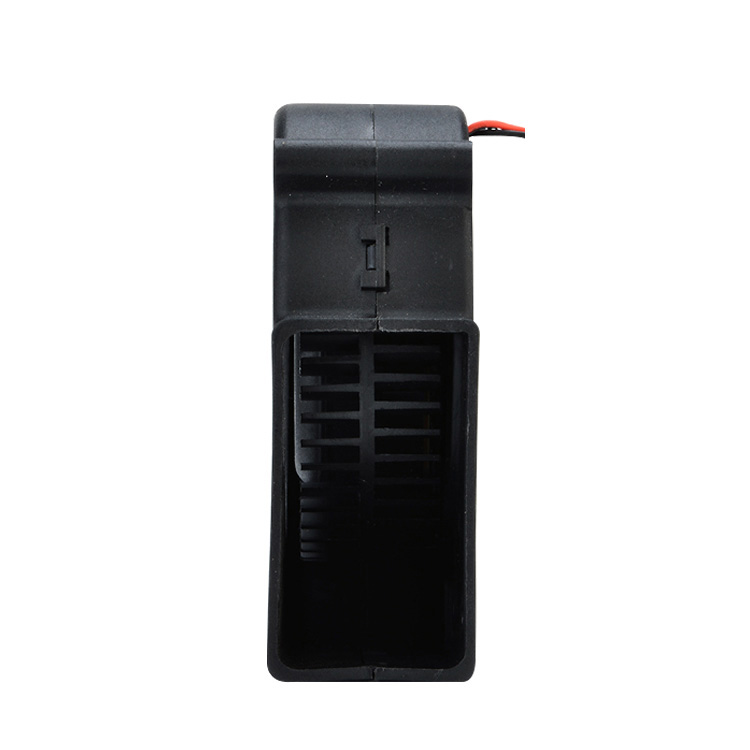

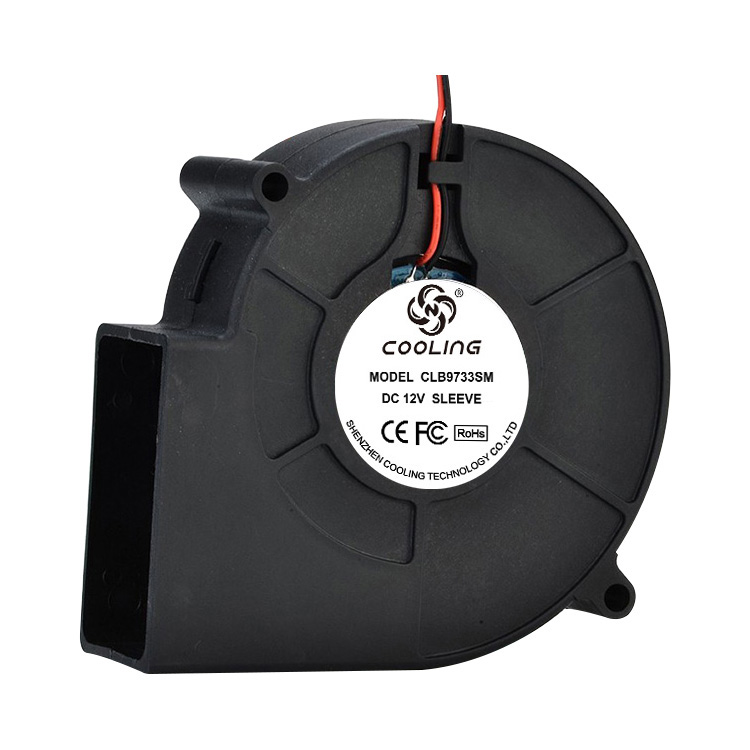

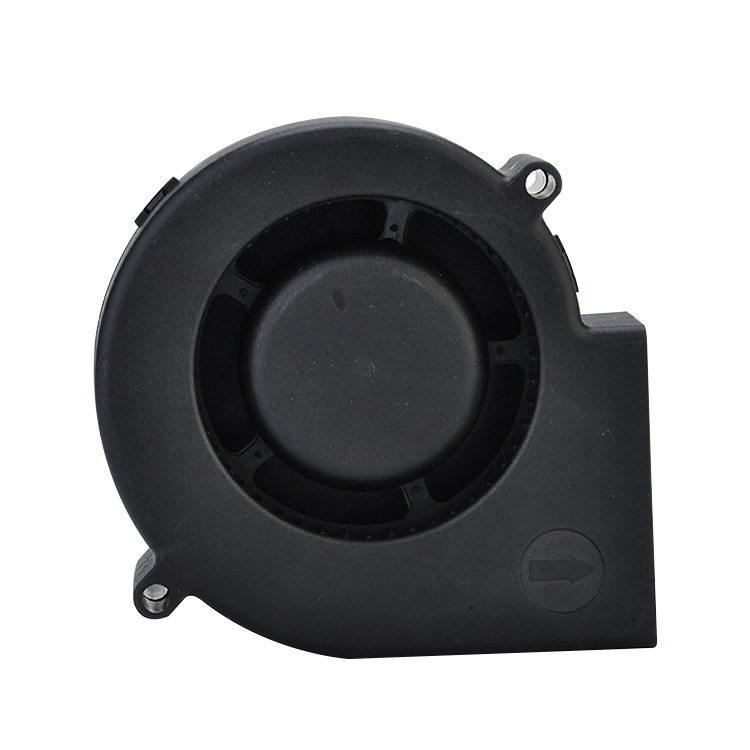

97x97x33mm 12V 24V 48VDC Cooling Blower
Product Attributes
l Size / Dimension: 97x97x33mm
l Voltage - Rated：12VDC / 24VDC / 48VDC
l Bearing Type: Sleeve / Hydraulic / Ball Bearing
l Air Flow: 0.363 ~ 0.715m³/min（12.8 ~ 25.2 CFM）
l Static Pressure: 8.99 ~ 26.25 mm H2O（0.354 ~ 1.033 in H2O）
l Noise: ＜44.8 ~ 55.3 dB(A)
l RPM: 3000 / 5000 RPM
l Current Rating (Amps): 0.09 ~ 1.2A
l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~54VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：4.32 ~ 12W
l Weight: 170g
Certifications:
CE & FCC Listed
REACH Compliant
Model
Rated Voltage
Operating Voltage Range
Rated Current
Rated
Input Power
Speed
Maximum Air Flow
Maximum Air Pressure
Noise
PART.NO.
VDC
VDC
Amp
Watt
R.P.M
M³/min
CFM
mmH2O
InH2O
dB-A
CLB9733L12X
12
7~13.5
0.36
4.32
3000
0.363
12.8
8.99
0.354
44.8
CLB9733M12X
12
7~13.5
0.5
6
3500
0.436
15.4
12.40
0.488
47.2
CLB9733H12X
12
7~13.5
0.38
8.16
4000
0.568
20.0
16.17
0.637
50.9
CLB9733HH12X
12
7~13.5
0.83
10
4500
0.637
22.5
21.43
0.844
52.5
CLB9733VH12X
12
7~13.5
1
12
5000
0.715
25.2
26.25
1.033
55.3
CLB9733HV12X
12
7~13.5
1.2
14.4
5500
0.802
28.3
33.15
1.305
57.1
CLB9733L24X
24
18~26.5
0.18
4.32
3000
0.363
12.8
8.99
0.354
44.8
CLB9733M24X
24
18~26.5
0.25
6
3500
0.436
15.4
12.40
0.488
47.2
CLB9733H24X
24
18~26.5
0.34
8.16
4000
0.568
20.0
16.17
0.637
50.9
CLB9733HH24X
24
18~26.5
0.42
10
4500
0.637
22.5
21.43
0.844
52.5
CLB9733VH24X
24
18~26.5
0.5
12
5000
0.715
25.2
26.25
1.033
55.3
CLB9733HV24X
24
18~26.5
0.6
14.4
5500
0.802
28.3
33.15
1.305
57.1
CLB9733L48X
48
36~54
0.09
4.32
3000
0.363
12.8
8.99
0.354
44.8
CLB9733M48X
48
36~54
0.13
6
3500
0.436
15.4
12.40
0.488
47.2
CLB9733H48X
48
36~54
0.17
8.16
4000
0.568
20.0
16.17
0.637
50.9
CLB9733HH48X
48
36~54
0.21
10
4500
0.637
22.5
21.43
0.844
52.5
CLB9733VH48X
48
36~54
0.25
12
5000
0.715
25.2
26.25
1.033
55.3
