AC Cooling Fan

  • 9225 110V 220VAC (92x92x25mm) Cooling Fan
  • 9225 110V 220VAC (92x92x25mm) Cooling Fan
  • 9225 110V 220VAC (92x92x25mm) Cooling Fan
9225 110V 220VAC (92x92x25mm) Cooling Fan9225 110V 220VAC (92x92x25mm) Cooling Fan9225 110V 220VAC (92x92x25mm) Cooling Fan

9225 110V 220VAC (92x92x25mm) Cooling Fan

  • Product description: 9225 - 92x92x25mm 110V 220VAC Axial Fan with Sleeve/ Dual Ball Bearing 1.0m³/min 37CFM - AC Brushless Axial fan and quiet cooling solutions from Cooling Technology.
  • INQUIRY

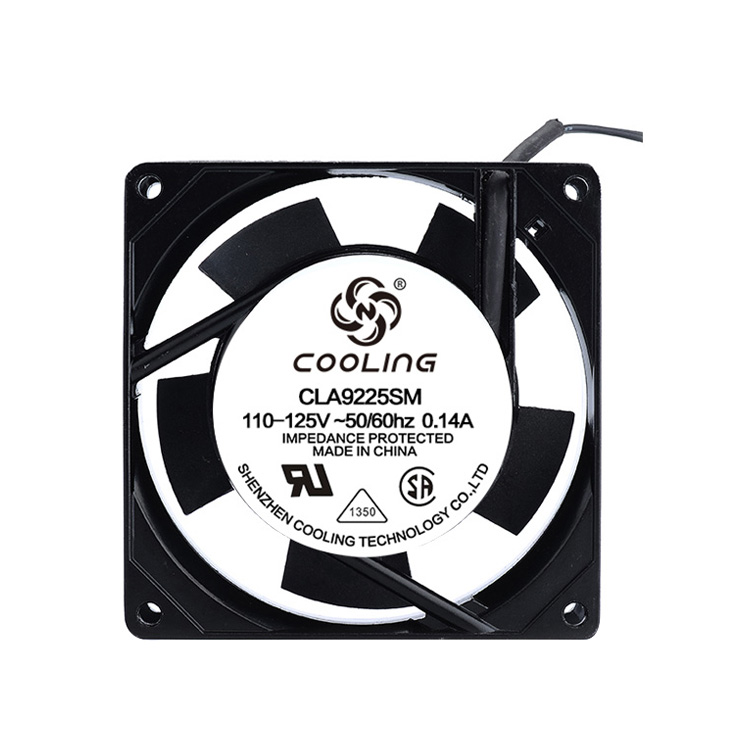

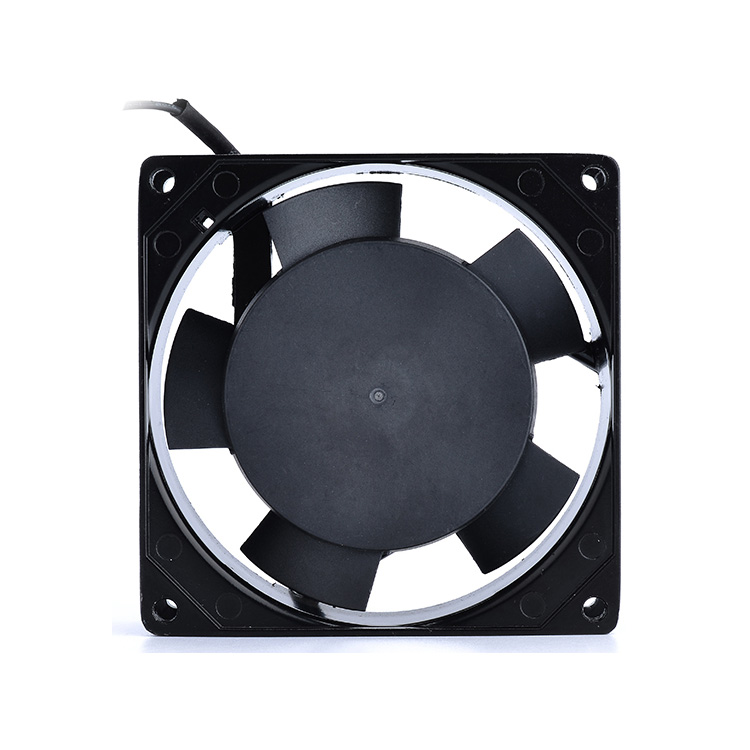

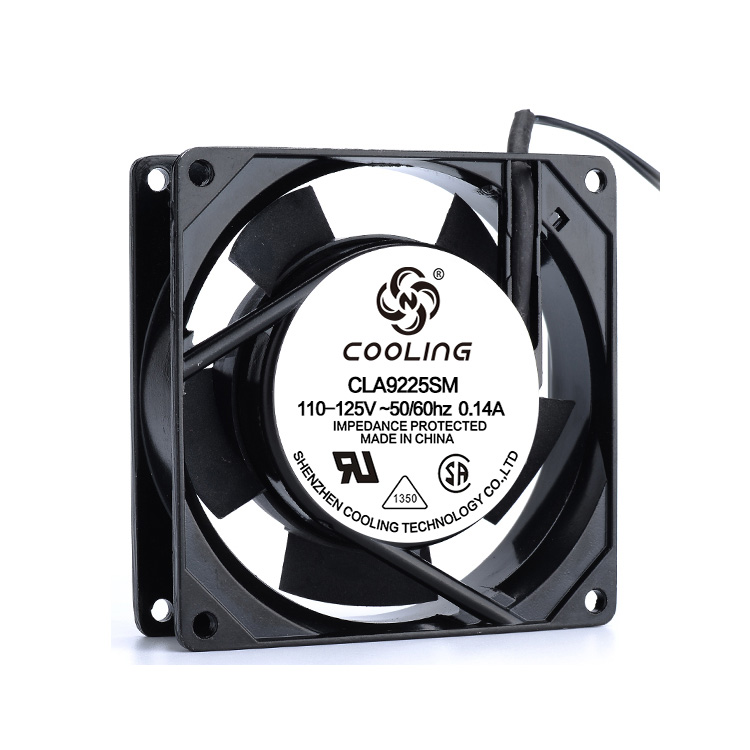

92x92x25mm 110V 220VAC Cooling Fan


Product Attributes

l Size / Dimension: 92x92x25mm

l Voltage - Rated110VAC / 220VAC

l Bearing Type: Sleeve / Dual Ball Bearing

l Air Flow: 0.59 ~ 1.0 m³/min(21 ~ 37 CFM

l Static Pressure: 2.6 ~ 4.83 mm H2O(0.1 ~ 0.12 in H2O

l Noise: 22 - 37 dB(A)

l RPM: 2000 ~ 2900 RPM

l Current Rating (Amps): 0.036 ~ 0.12A

l Voltage Range: 100 ~ 125VAC / 220 ~ 240VAC

l Material - Frame: Aluminum (Flammability: UL94V-0)

l Material - Blade: Plastic (Flammability: UL94V-0)

l Power (Watts)8 ~ 14 W

l Weight: 280g


Certifications:

CE Listed

FCC Listed

REACH Compliant


Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed Maximum Air Flow Air Pressure Noise Level
PART NO. VAC VAC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLA9225H01 110 100-125 0.12/0.1 14/13.5 2500/2900 0.84/1.0 30/37 3.30/4.83 0.12 32/37
CLA9225M01 110 100-125 0.09/0.09 11/10 2300/2600 0.70/0.8 25/30 3.0/3.5 0.11 25/33
CLA9225L01 110 100-125 0.07/0.07 9/8 2000/2200 0.59/0.6 21/22 2.7/2.6 0.1 22/24
CLA9225H02 220 220-240 0.07/0.06 14/13.5 2500/2900 0.84/1.0 30/37 3.30/4.83 0.12 32/37
CLA9225M02 220 220-240 0.06/0.045 11/10 2300/2600 0.70/0.8 25/30 3.0/3.5 0.11 25/33
CLA9225L02 220 220-240 0.05/0.036 9/8 2000/2200 0.59/0.6 21/22 2.7/2.6 0.1 22/24
