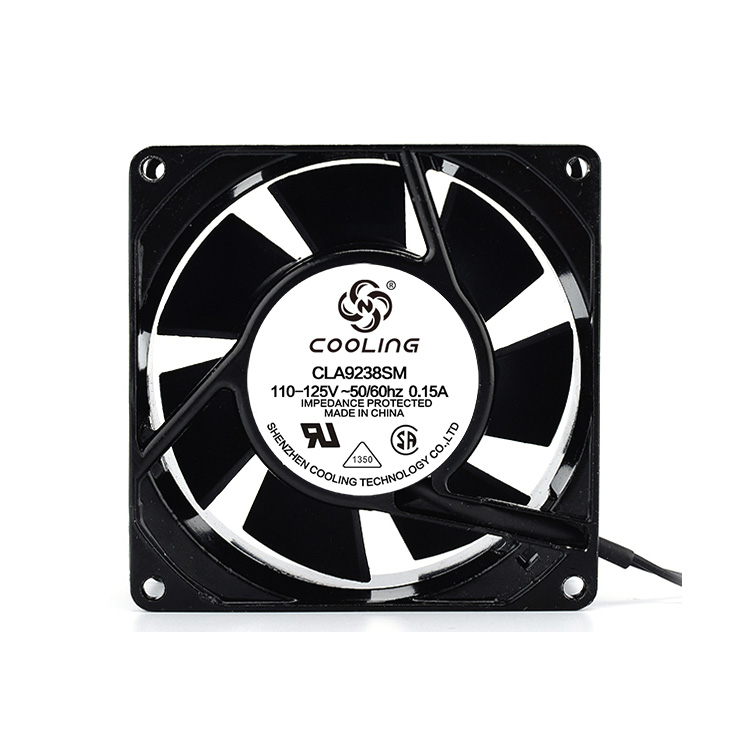

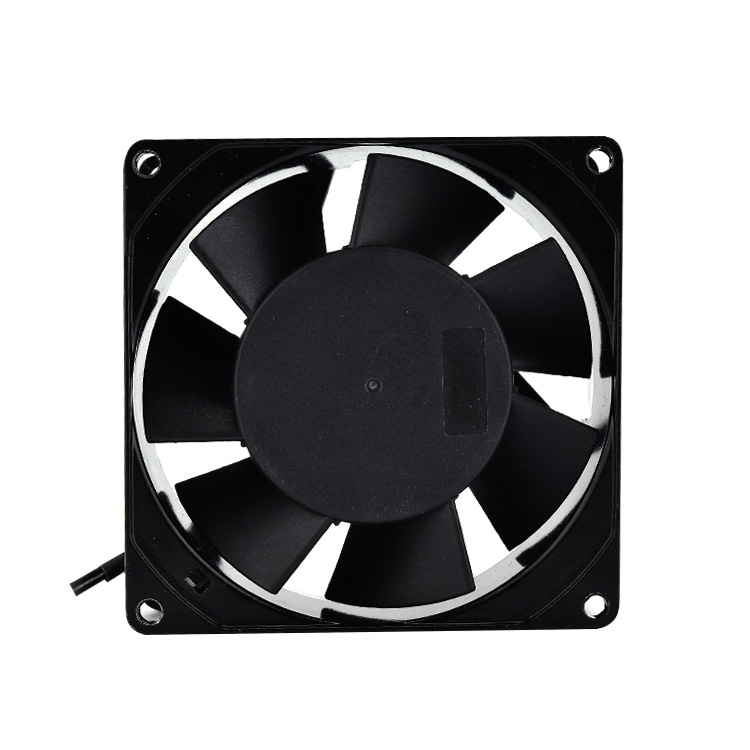

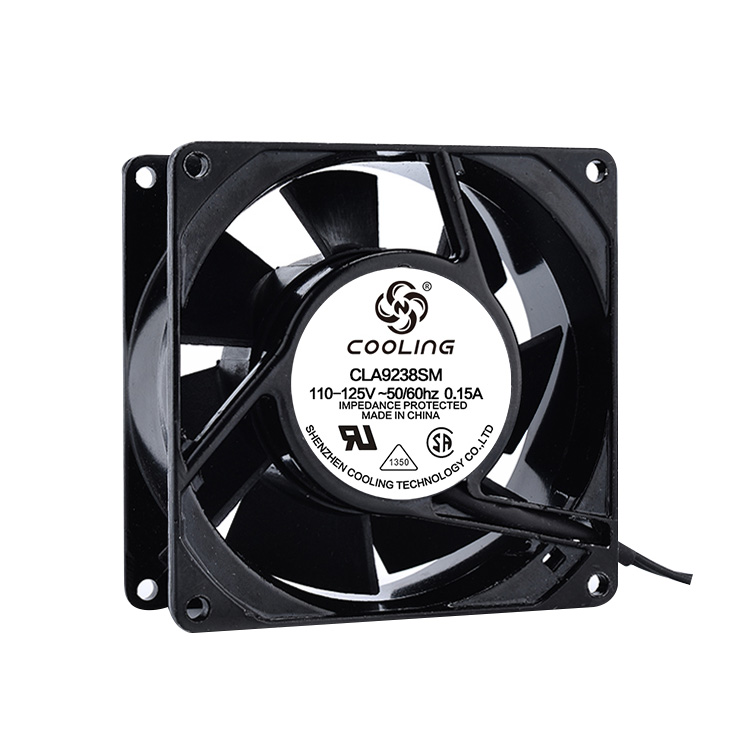

92x92x38mm 110V 220VAC Cooling Fan
Product Attributes
l Size / Dimension: 92x92x38mm
l Voltage - Rated：110VAC / 220VAC
l Bearing Type: Sleeve / Dual Ball Bearing
l Air Flow: 0.6 ~ 1.4 m³/min（23 ~ 50 CFM）
l Static Pressure: 2.7 ~ 5.5 mm H2O（0.11 ~ 0.17 in H2O）
l Noise: ＜18 - 36 dB(A)
l RPM: 1600 ~ 2900 RPM
l Current Rating (Amps): 0.1 ~ 0.16A
l Voltage Range: 100 ~ 125VAC / 220 ~ 240VAC
l Material - Frame: Aluminum (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：9 ~ 14 W
l Weight: 350g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Air Pressure | Noise Level | ||
| PART NO. | VAC | VAC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLA9238H01 | 110 | 100-125 | 0.16 | 16/14 | 2400/2900 | 1.21/1.4 | 43/50 | 4.5/5.5 | 0.17 | 32/36 |
| CLA9238M01 | 110 | 100-125 | 0.13 | 14/12 | 2200/2400 | 0.79/0.9 | 28/32 | 3.5/4.2 | 0.13 | 27/31 |
| CLA9238L01 | 110 | 100-125 | 0.1 | 10/9 | 1800/1600 | 0.67/0.6 | 24/23 | 3.0/2.7 | 0.11 | 20/18 |
| CLA9238H02 | 220 | 220-240 | 0.16 | 16/14 | 2400/2900 | 1.21/1.4 | 43/50 | 4.5/5.5 | 0.17 | 32/36 |
| CLA9238M02 | 220 | 220-240 | 0.13 | 14/12 | 2200/2400 | 0.79/0.9 | 28/32 | 3.5/4.2 | 0.13 | 27/31 |
| CLA9238L02 | 220 | 220-240 | 0.1 | 10/9 | 1800/1600 | 0.67/0.6 | 24/23 | 3.0/2.7 | 0.11 | 20/18 |
