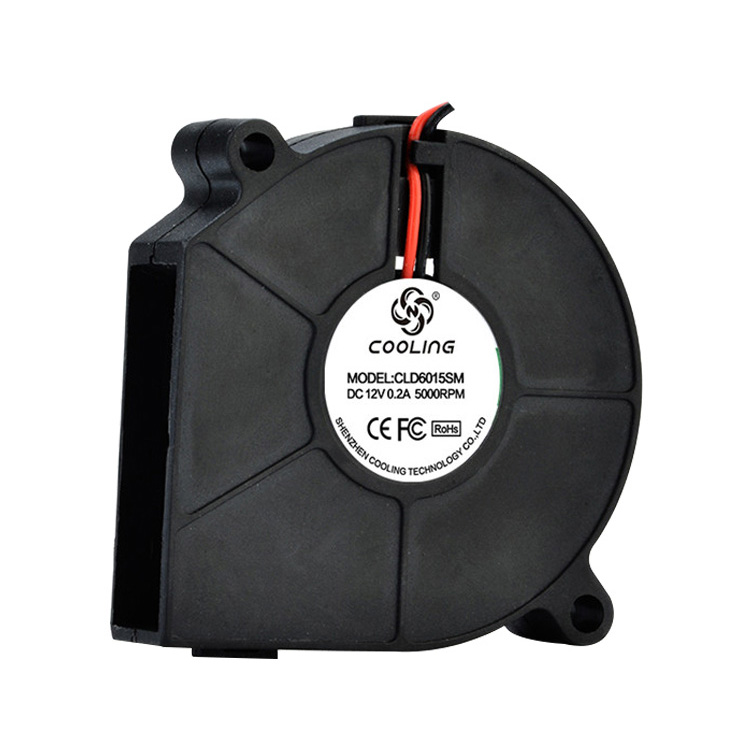

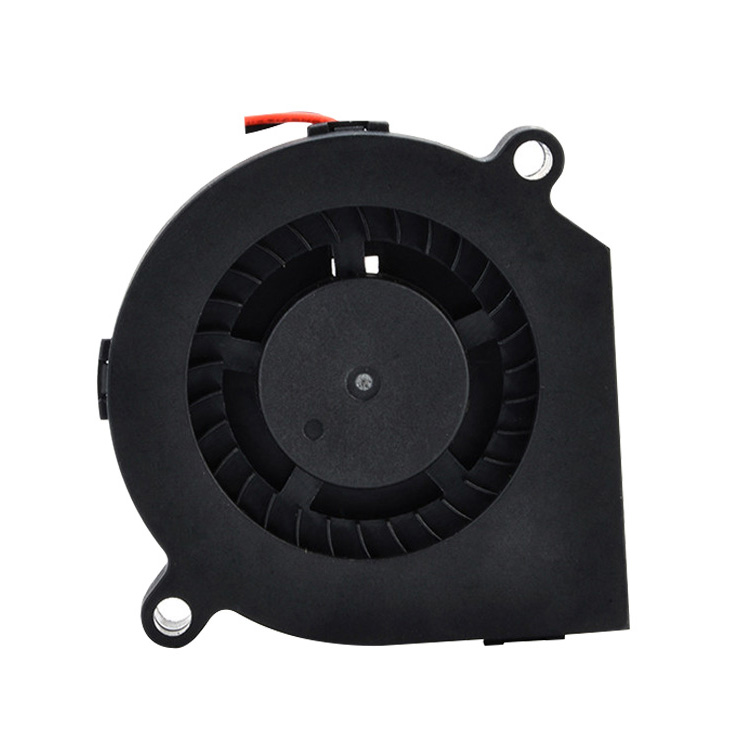

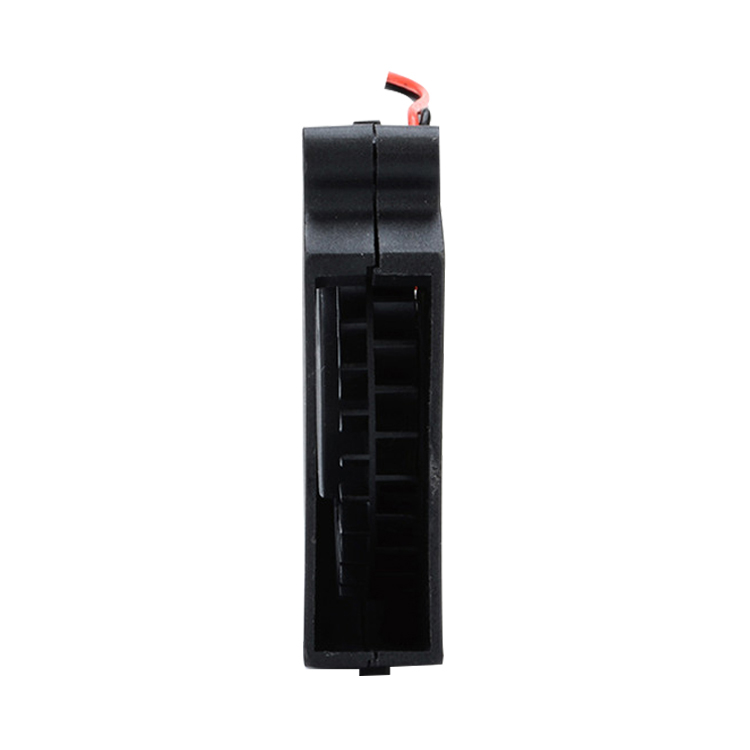

60x60x15mm 12V 24VDC Cooling Blower
Product Attributes
l Size / Dimension: 60x60x15mm
l Voltage - Rated：12VDC / 24VDC
l Bearing Type: Sleeve / Hydraulic / Ball Bearing
l Air Flow: 0.063 ~ 0.128m³/min（2.24 ~ 4.54 CFM）
l Static Pressure: 3.31 ~ 16.62 mm H2O（0.13 ~ 0.654 in H2O）
l Noise: ＜24.4 ~ 43.5 dB(A)
l RPM: 2500 / 5000 RPM
l Current Rating (Amps): 0.05 ~ 0.4A
l Voltage Range: 6 ~ 13.5VDC / 18 ~ 26.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：1.2 ~ 4.32W
l Weight: 64g
Certifications:
CE & FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLB6015L12X | 12 | 6~13.5 | 0.1 | 1.2 | 2500 | 0.063 | 2.24 | 3.31 | 0.13 | 24.4 |
| CLB6015M12X | 12 | 6~13.5 | 0.14 | 1.68 | 3000 | 0.079 | 2.78 | 5.12 | 0.201 | 29.5 |
| CLB6015H12X | 12 | 6~13.5 | 0.22 | 2.64 | 3500 | 0.09 | 3.16 | 7.13 | 0.28 | 33.6 |
| CLB6015HH12X | 12 | 6~13.5 | 0.30 | 3.6 | 4000 | 0.104 | 3.67 | 9.72 | 0.383 | 36.9 |
| CLB6015VH12X | 12 | 6~13.5 | 0.35 | 4.2 | 4500 | 0.117 | 4.13 | 12.7 | 0.5 | 40.5 |
| CLB6015HV12X | 12 | 6~13.5 | 0.4 | 4.8 | 5000 | 0.128 | 4.54 | 16.62 | 0.654 | 43.5 |
| CLB6015L24X | 24 | 18~26.5 | 0.05 | 1.2 | 2500 | 0.063 | 2.24 | 3.31 | 0.13 | 24.4 |
| CLB6015M24X | 24 | 18~26.5 | 0.07 | 1.68 | 3000 | 0.079 | 2.78 | 5.12 | 0.201 | 29.5 |
| CLB6015H24X | 24 | 18~26.5 | 0.11 | 2.64 | 3500 | 0.09 | 3.16 | 7.13 | 0.28 | 33.6 |
| CLB6015HH24X | 24 | 18~26.5 | 0.15 | 3.6 | 4000 | 0.104 | 3.67 | 9.72 | 0.383 | 36.9 |
| CLB6015VH24X | 24 | 18~26.5 | 0.16 | 3.84 | 4500 | 0.117 | 4.13 | 12.7 | 0.5 | 40.5 |
| CLB6015HV24X | 24 | 18~26.5 | 0.18 | 4.32 | 5000 | 0.128 | 4.54 | 16.62 | 0.654 | 43.5 |
