DC Axial Fan

  • 12038C 12V 24V 48VDC (120X120X38mm) Cooling Fan
  • 12038C 12V 24V 48VDC (120X120X38mm) Cooling Fan
  • 12038C 12V 24V 48VDC (120X120X38mm) Cooling Fan
12038C 12V 24V 48VDC (120X120X38mm) Cooling Fan12038C 12V 24V 48VDC (120X120X38mm) Cooling Fan12038C 12V 24V 48VDC (120X120X38mm) Cooling Fan

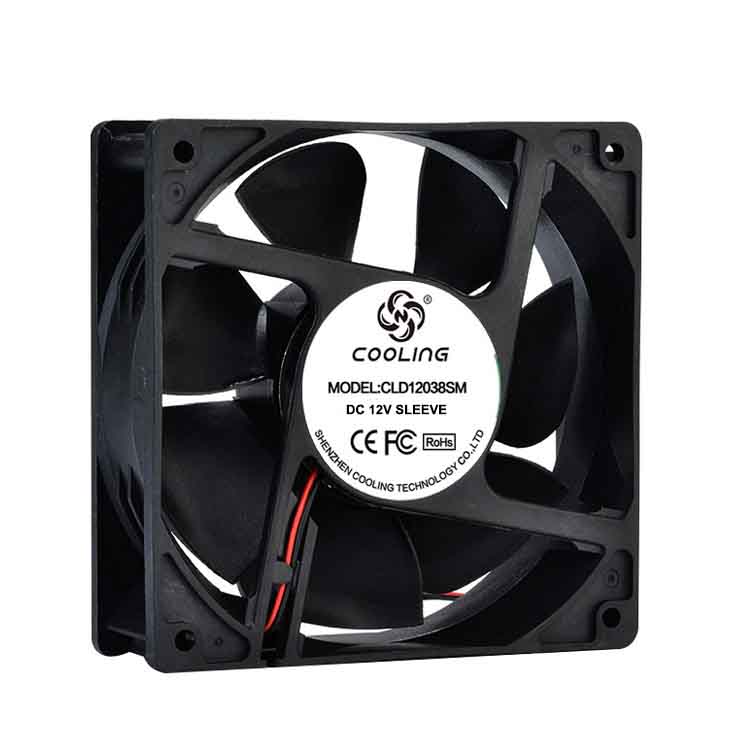

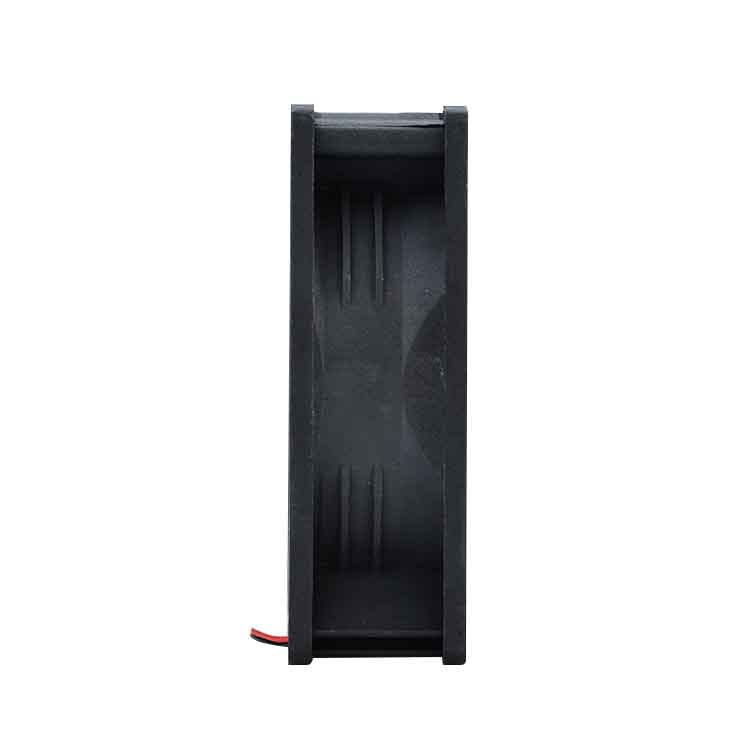

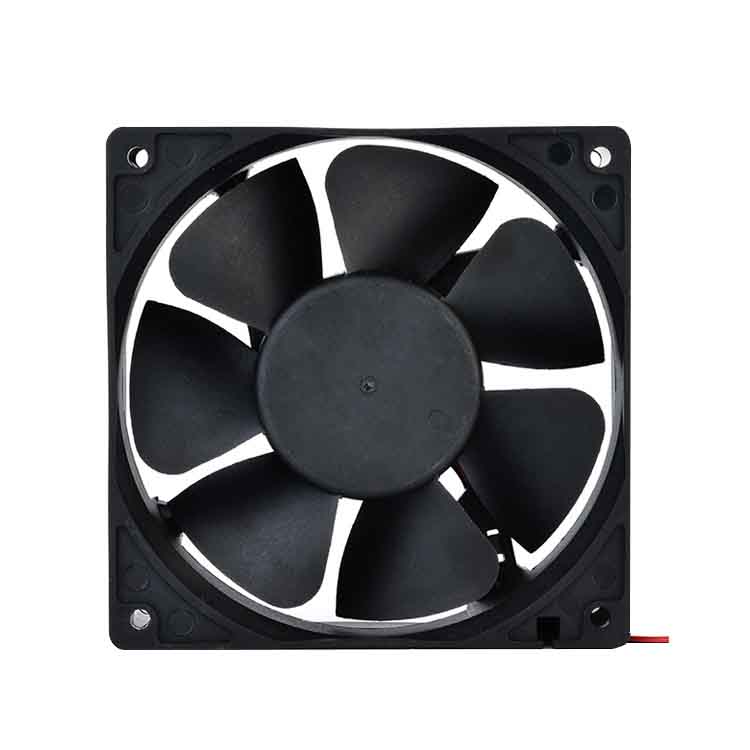

12038C 12V 24V 48VDC (120X120X38mm) Cooling Fan

  • Product description: 12038C - 120X120X38mm 12V 24V 48V Fan Sleeve/Hydraulic/Dual Ball Bearing 5.624m³/min 198.6CFM - DC Brushless fan & quiet cooling solutions from Cooling Technology.
  • INQUIRY

12038C 120X120X38mm 12V 24V 48VDC Cooling Fan


Product Attributes

l Size / Dimension: 120X120X38mm

l Voltage - Rated12VDC / 24VDC / 48VDC

l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing

l Air Flow: 2.536 ~ 5.624 m³/min(89.58 ~ 198.60 CFM

l Static Pressure: 5.37 ~ 24.08 mm H2O(0.211 ~ 0.948 in H2O

l Noise: 40.0 – 61.3 dB(A)

l RPM: 2500 ~ 5500 RPM

l Current Rating (Amps): 0.113 ~ 3.0A

l Voltage Range: 8 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC

l Material - Frame: Plastic (Flammability: UL94V-0)

l Material - Blade: Plastic (Flammability: UL94V-0)

l Power (Watts)5.4 ~ 36 W

l Weight: 300g



Certifications:

CE Listed

FCC Listed

REACH Compliant


Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLD12038L12X 12 8~13.5 0.45 5.4 2500 2.536 89.58 5.37 0.211 40.0
CLD12038M12X 12 8~13.5 0.95 11.4 3000 2.972 104.93 7.38 0. 291 44.7
CLD12038Vm12X 12 8~13.5 1.45 17.4 3500 3.636 128.40 10.40 0.409 49.0
CLD12038H12X 12 8~13.5 1.85 22.2 4000 4.060 143.36 13.13 0.517 51.4
CLD12038HH12X 12 8~13.5 2.25 27 4500 4.647 164.09 16.86 0.664 55.8
CLD12038VH12X 12 8~13.5 2.65 31.8 5000 5.205 183.78 20.32 0.800 59.7
CLD12038HV12X 12 8~13.5 3.0 36 5500 5.624 198.60 24.08 0.948 61.3
CLD12038L24X 24 18~26.5 0.225 5.4 2500 2.536 89.58 5.37 0.211 40.0
CLD12038M24X 24 18~26.5 0.475 11.4 3000 2.972 104.93 7.38 0. 291 44.7
CLD12038VM24X 24 18~26.5 0.73 17.4 3500 3.636 128.40 10.40 0.409 49.0
CLD12038H24X 24 18~26.5 0.9 22.2 4000 4.060 143.36 13.13 0.517 51.4
CLD12038HH24X 24 18~26.5 1.125 27 4500 4.647 164.09 16.86 0.664 55.8
CLD12038VH24X 24 18~26.5 1.33 31.8 5000 5.205 183.78 20.32 0.800 59.7
CLD12038HV24X 24 18~26.5 1.5 36 5500 5.624 198.60 24.08 0.948 61.3
CLD12038L48X 48 36~54 0.113 5.4 2500 2.536 89.58 5.37 0.211 40.0
CLD12038M48X 48 36~54 0.24 11.4 3000 2.972 104.93 7.38 0. 291 44.7
CLD12038VM48X 48 36~54 0.36 17.4 3500 3.636 128.40 10.40 0.409 49.0
CLD12038H48X 48 36~54 0.46 22.2 4000 4.060 143.36 13.13 0.517 51.4
CLD12038HH48X 48 36~54 0.56 27 4500 4.647 164.09 16.86 0.664 55.8
CLD12038VH48X 48 36~54 0.66 31.8 5000 5.205 183.78 20.32 0.800 59.7
CLD12038HV48X 48 36~54 0.75 36 5500 5.624 198.60 24.08 0.948 61.3
