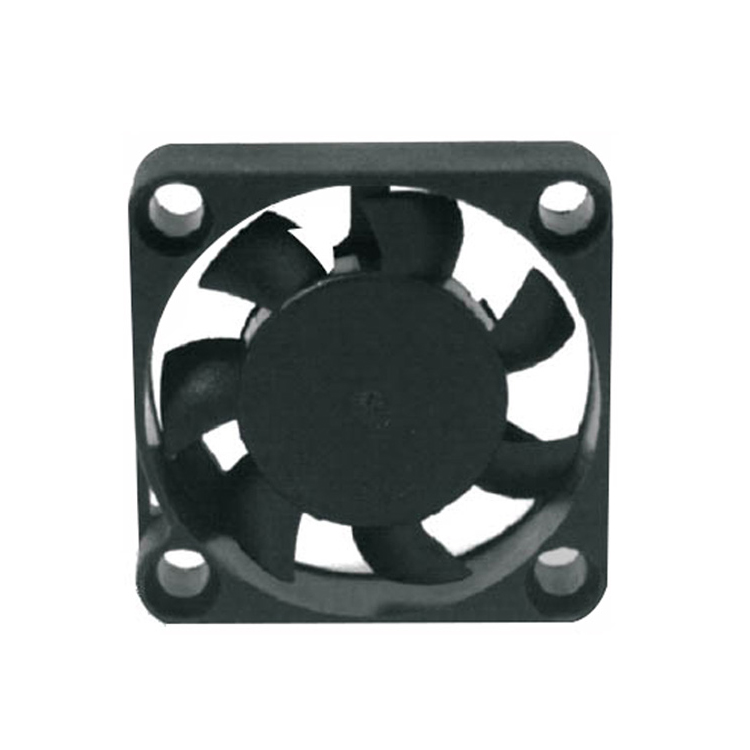

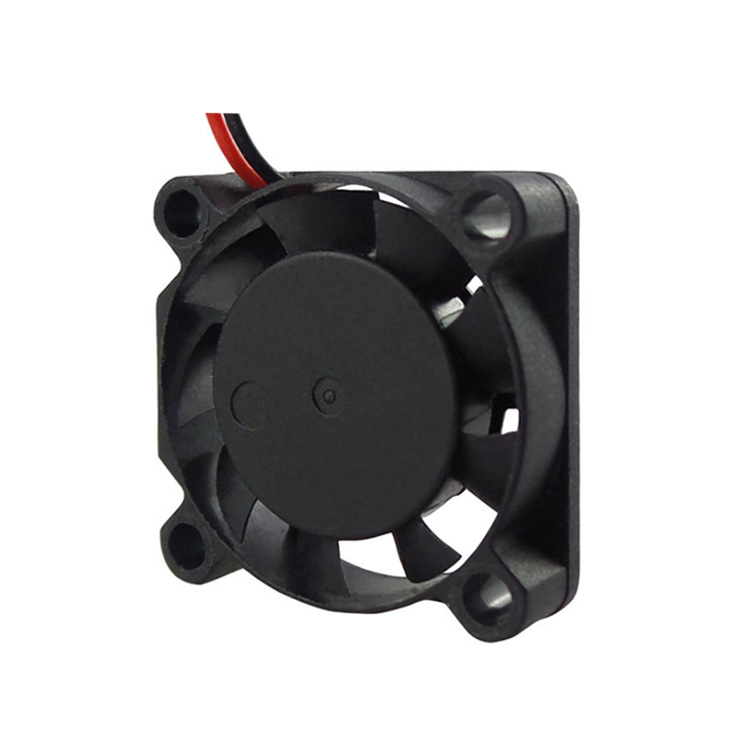

DC Axial Fan

  • 2507 5V 12VDC (25X25X7mm) Cooling Fan
  • 2507 5V 12VDC (25X25X7mm) Cooling Fan
  • 2507 5V 12VDC (25X25X7mm) Cooling Fan
2507 5V 12VDC (25X25X7mm) Cooling Fan2507 5V 12VDC (25X25X7mm) Cooling Fan2507 5V 12VDC (25X25X7mm) Cooling Fan

2507 5V 12VDC (25X25X7mm) Cooling Fan

  • Product description: 2507 - DC Axial Fan 25X25X7mm 5V 12VDC Sleeve/Hydraulic/Ball Bearing 0.08m³/min 2.81CFM - DC brushless axial fans and quiet cooling solutions from Cooling Technology.
  • INQUIRY

25x25x7mm 5V 12VDC Cooling Fan


Product Attributes

Size / Dimension: 25x25x7mm

Voltage - Rated5VDC / 12VDC

Bearing Type: Sleeve / Hydraulic / Ball Bearing

Air Flow: 0.035 ~ 0.08 m³/min(1.22 ~ 2.81 CFM

Static Pressure: 2.16 ~ 4.5 mm H2O(0.085 ~ 0.177 in H2O

Noise: 19.6 / 31.2 dB(A)

RPM: 7000 ~ 17000 RPM

Current Rating (Amps): 0.06 ~ 0.22A

Voltage Range: 1.8 ~ 3 ~6VDC / 8.5 ~ 13.5VDC

Material - Frame: Plastic (Flammability: UL94V-0)

Material - Blade: Plastic (Flammability: UL94V-0)

Power (Watts)0.72 ~ 1.08 W

Weight: 5g



Certifications:

CE Listed

FCC Listed

REACH Compliant


Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLD2507L05X 5 1.8~3~6 0.14 0.72 7000 0.035 1.22 2.16 0.085 19.6
CLD2507M05X 5 1.8~3~6 0.17 0.84 10000 0.044 1.55 3.1 0.122 23.5
CLD2507H05X 5 1.8~3~6 0.19 0.96 14000 0.054 1.9 3.8 0.15 26.4
CLD2507HH05X 5 1.8~3~6 0.22 1.08 17000 0.08 2.81 4.5 0.177 31.2
CLD2507L12X 12 8.5~13.5 0.06 0.72 7000 0.035 1.22 2.16 0.085 19.6
CLD2507M12X 12 8.5~13.5 0.07 0.84 10000 0.044 1.55 3.1 0.122 23.5
CLD2507H12X 12 8.5~13.5 0.08 0.96 14000 0.054 1.9 3.8 0.15 26.4
CLD2507HH12X 12 8.5~13.5 0.09 1.08 17000 0.08 2.81 4.5 0.177 31.2
