DC AXIAL FAN

  • 4056 12VDC (40X40X56mm) Cooling Fan
  • 4056 12VDC (40X40X56mm) Cooling Fan
  • 4056 12VDC (40X40X56mm) Cooling Fan
4056 12VDC (40X40X56mm) Cooling Fan4056 12VDC (40X40X56mm) Cooling Fan4056 12VDC (40X40X56mm) Cooling Fan

4056 12VDC (40X40X56mm) Cooling Fan

  • Product description: 4056 - DC Axial Fan 40X40X56mm 12VDC Sleeve/Hydraulic/ Dual Ball Bearing 0.87m³/min 30.72CFM - DC Brushless fan and quiet cooling solutions from Cooling Technology.
  • INQUIRY

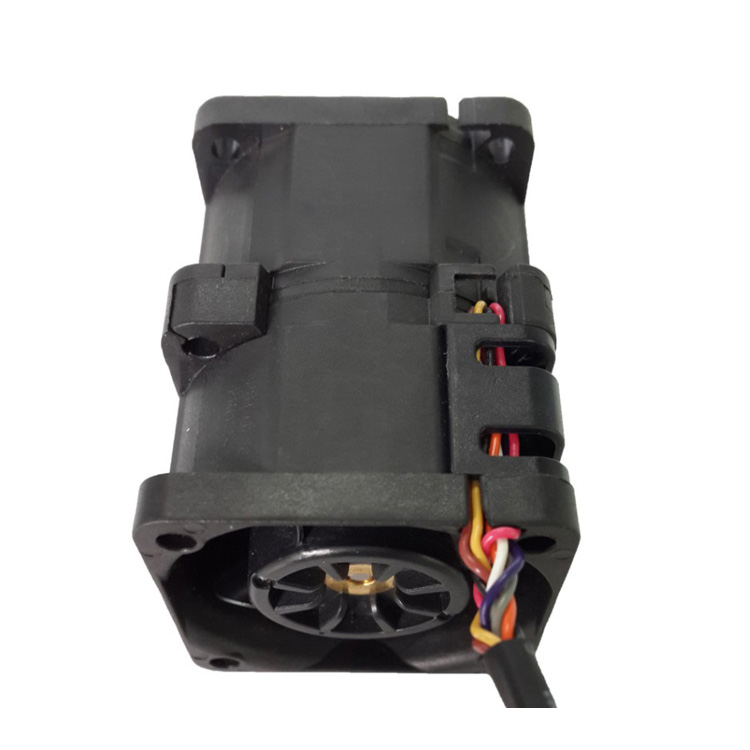

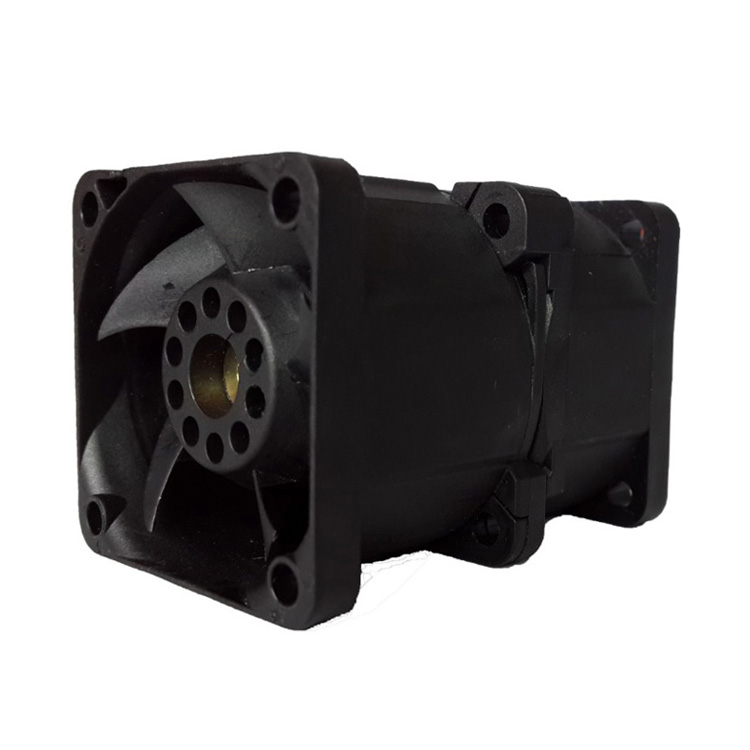

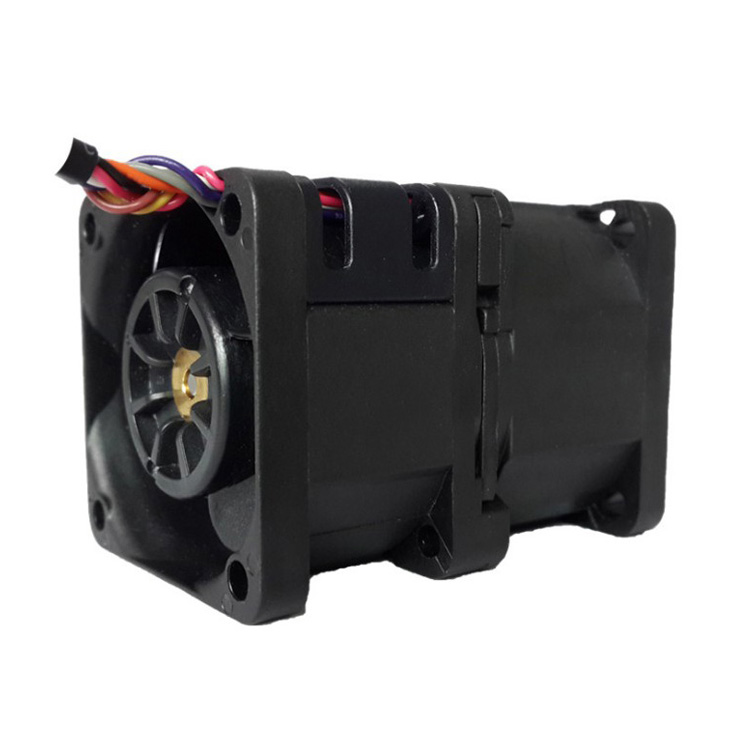

40x40x56mm 12VDC Cooling Fan


Product Attributes

Size / Dimension: 40x40x56mm

Voltage - Rated12VDC

Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing

Air Flow: 0.65 ~ 0.87 m³/min(22.95 ~ 30.72 CFM

Static Pressure: 36.83 ~ 64.262 mm H2O(1.45 ~ 2.53 in H2O

Noise: 54 / 61 dB(A)

RPM: 14000 ~ 19000 RPM

Current Rating (Amps): 0.52 ~ 1.15A

Voltage Range: 10.8 ~ 13.2VDC

Material - Frame: Plastic (Flammability: UL94V-0)

Material - Blade: Plastic (Flammability: UL94V-0)

Power (Watts)6.24 ~ 13.8 W

Weight: 90g



Certifications:

CE Listed

FCC Listed

REACH Compliant

Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLD4056L12B 12 10.8~13.2 0.52 6.24 14000 0.65 22.95 36.83 1.45 54
CLD4056M12B 12 10.8~13.2 0.6 7.2 15000 0.70 24.72 41.91 1.65 56
CLD4056H12B 12 10.8~13.2 0.9 10.8 16700 0.77 27.19 51.054 2.01 58
CLD4056HH12B 12 10.8~13.2 1.15 13.8 19000 0.87 30.72 64.262 2.53 61
