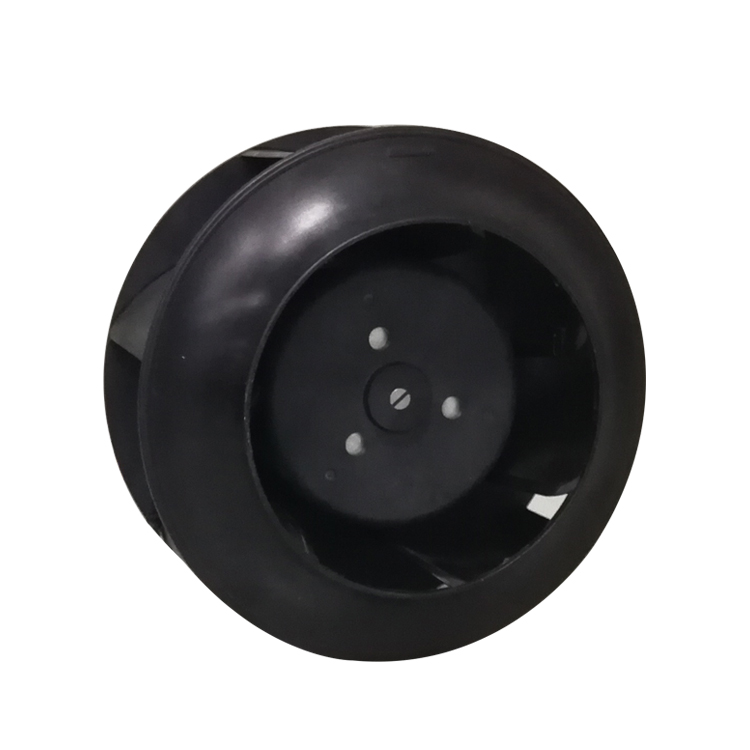

200mm 12V 24V 48VDC Centrifugal Fan
Product Attributes
l Size / Dimension: φ200mm
l Voltage - Rated：12VDC / 24VDC / 48VDC
l Bearing Type: Dual Ball Bearing
l Air Flow: 13.07 m³/min（462.81 CFM）
l Static Pressure: 41.25 mm H2O（1.62 in H2O）
l Noise: ＜56.6 dB(A)
l RPM: 2400 RPM
l Current Rating (Amps): 2.40-4.40Amp
l Voltage Range: 7 ~ 14VDC / 15 ~ 27VDC / 30 ~ 57VDC
l Material - Frame: Aluminum
l Material - Blade: PA66
l Power (Watts)：28.8 ~ 52.8 W
l Weight: 3010g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Air Pressure | Noise Level | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLB220B12L | 12 | 7~14 | 2.40 | 28.8 | 2000 | 10.89 | 385.67 | 28.64 | 1.13 | 45.0 |
| CLB220B12M | 12 |
7~14 |
4.40 | 52.8 | 2400 | 13.07 | 462.81 | 41.25 | 1.62 | 56.6 |
| CLB220B24L | 24 | 15~27 | 1.20 | 28.8 | 2000 | 10.89 | 385.67 | 28.64 | 1.13 | 45.0 |
| CLB220B24M | 24 |
15~27 |
2.20 | 52.8 | 2400 | 13.07 | 462.81 | 41.25 | 1.62 | 56.6 |
| CLB220B24H | 24 |
15~27 |
3.10 | 74.4 | 2800 | 15.25 | 539.95 | 56.15 | 2.21 | 70.5 |
| CLB220B24V | 24 |
15~27 |
4.40 | 105.6 | 3200 | 17.43 | 617.08 | 73.34 | 2.89 | 76.0 |
| CLB220B48L | 48 | 30~57 | 0.46 | 22.1 | 2000 | 10.89 | 385.67 | 28.64 | 1.13 | 45.0 |
| CLB220B48M | 48 | 30~57 | 1.08 | 51.8 | 2400 | 13.07 | 462.81 | 41.25 | 1.62 | 56.6 |
| CLB220B48H | 48 |
30~57 |
1.60 | 76.8 | 2800 | 15.25 | 539.95 | 56.15 | 2.21 | 70.5 |
| CLB220B48V | 48 | 30~57 | 2.25 | 108.0 | 3200 | 17.43 | 617.08 | 73.34 | 2.89 | 76.0 |
