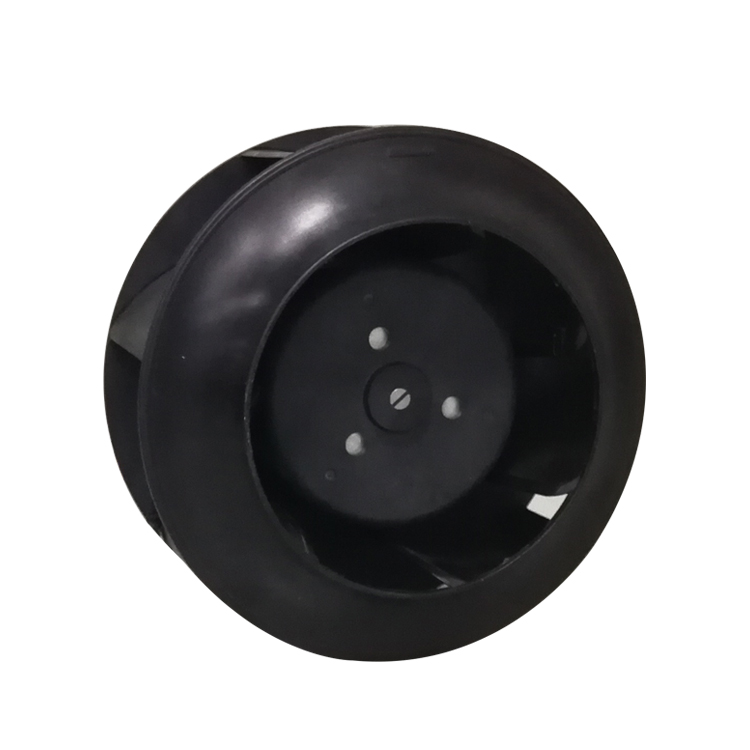

175mm 12V 24V 48VDC Centrifugal Fan
Product Attributes
l Size / Dimension: φ175mm
l Voltage - Rated：12VDC / 24VDC / 48VDC
l Bearing Type: Dual Ball Bearing
l Air Flow: 9.51 m³/min（336.8 CFM）
l Static Pressure: 33.53 mm H2O（1.32 in H2O）
l Noise: ＜53.0 dB(A)
l RPM: 2800 RPM
l Current Rating (Amps): 1.10-5.40Amp
l Voltage Range: 7 ~ 14VDC / 15 ~ 27VDC / 30 ~ 57VDC
l Material - Frame: Aluminum
l Material - Blade: PA66
l Power (Watts)：13.2 ~ 64.8 W
l Weight: 1300g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Air Pressure | Noise Level | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLB175B12L | 12 | 7~14 | 1.10 | 13.2 | 2000 | 6.98 | 246.99 | 18.03 | 0.71 | 39.2 |
| CLB175B12M | 12 |
7~14 |
2.60 | 31.2 | 2800 | 9.51 | 336.8 | 33.53 | 1.32 | 53.0 |
| CLB175B12H | 12 |
7~14 |
5.40 | 64.8 | 3600 | 12.05 | 426.62 | 53.79 | 2.12 | 60.6 |
| CLB175B24L | 24 | 15~27 | 0.55 | 13.2 | 2000 | 6.98 | 246.99 | 18.03 | 0.71 | 39.2 |
| CLB175B24M | 24 |
15~27 |
1.30 | 31.2 | 2800 | 9.51 | 336.8 | 33.53 | 1.32 | 53.0 |
| CLB175B24H | 24 |
15~27 |
2.70 | 64.8 | 3600 | 12.05 | 426.62 | 53.79 | 2.12 | 60.6 |
| CLB175B24V | 24 |
15~27 |
5.50 | 132.0 | 4400 | 14.59 | 516.43 | 78.83 | 3.10 | 73.3 |
| CLB175B48L | 48 | 30~57 | 0.28 | 13.4 | 2000 | 6.98 | 246.99 | 18.03 | 0.71 | 39.2 |
| CLB175B48M | 48 | 30~57 | 0.66 | 31.7 | 2800 | 9.51 | 336.8 | 33.53 | 1.32 | 53.0 |
| CLB175B48H | 48 |
30~57 |
1.40 | 67.2 | 3600 | 12.05 | 426.62 | 53.79 | 2.12 | 60.6 |
| CLB175B48V | 48 | 30~57 | 2.80 | 134.4 | 4400 | 14.59 | 516.43 | 78.83 | 3.10 | 73.3 |
