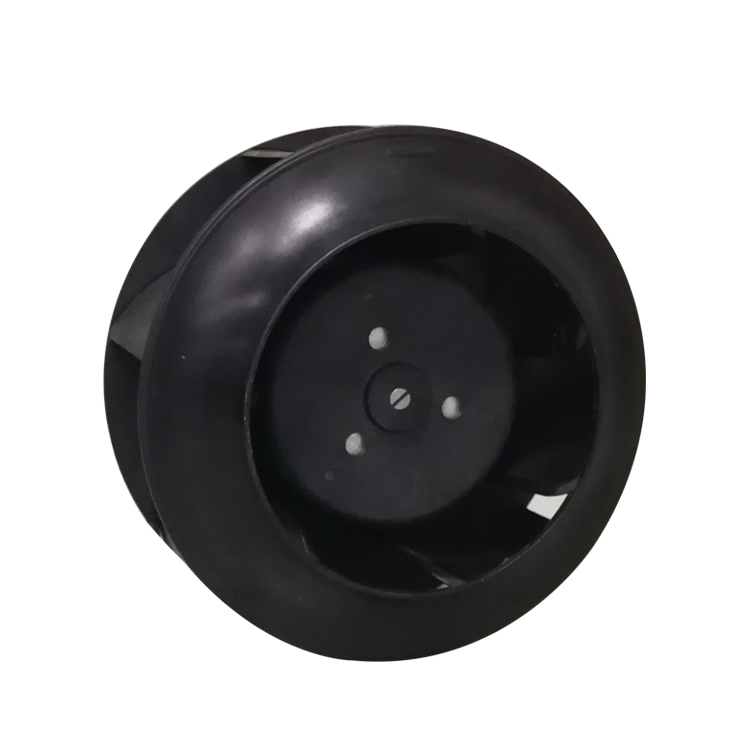

133mm 12V 24V 48VDC Centrifugal Fan
Product Attributes
l Size / Dimension: φ133mm
l Voltage - Rated：12VDC / 24VDC / 48VDC
l Bearing Type: Dual Ball Bearing
l Air Flow: 4.97 m³/min（175.93 CFM）
l Static Pressure: 29.42 mm H2O（1.16 in H2O）
l Noise: ＜59.2 dB(A)
l RPM: 3200 RPM
l Current Rating (Amps): 0.72-3.6Amp
l Voltage Range: 7 ~ 14VDC / 15 ~ 27VDC / 30 ~ 57VDC
l Material - Frame: Aluminum
l Material - Blade: PA66
l Power (Watts)：8.6 ~ 43.2 W
l Weight: 980g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Air Pressure | Noise Level | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLB133B12L | 12 | 7~14 | 0.72 | 8.6 | 2200 | 3.51 | 124.18 | 14.66 | 0.58 | 47.0 |
| CLB133B12M | 12 |
7~14 |
1.90 | 22.8 | 3200 | 4.97 | 175.93 | 29.42 | 1.16 | 59.2 |
| CLB133B12H | 12 |
7~14 |
3.60 | 43.2 | 4200 | 6.43 | 227.68 | 48.28 | 1.94 | 67.7 |
| CLB133B24L | 24 | 15~27 | 0.36 | 8.6 | 2200 | 3.51 | 124.18 | 14.66 | 0.58 | 47.0 |
| CLB133B24M | 24 |
15~27 |
0.80 | 19.2 | 3200 | 4.97 | 175.93 | 29.42 | 1.16 | 59.2 |
| CLB133B24H | 24 |
15~27 |
1.80 | 43.2 | 4200 | 6.43 | 227.68 | 48.28 | 1.94 | 67.7 |
| CLB133B24V | 24 |
15~27 |
3.30 | 79.2 | 5200 | 7.89 | 279.43 | 74.23 | 2.92 | 78.2 |
| CLB133B48L | 48 | 30~57 | 0.18 | 8.6 | 2200 | 3.51 | 124.18 | 14.66 | 0.58 | 47.0 |
| CLB133B48M | 48 | 30~57 | 0.40 | 19.2 | 3200 | 4.97 | 175.93 | 29.42 | 1.16 | 59.2 |
| CLB133B48H | 48 |
30~57 |
0.90 | 43.2 | 4200 | 6.43 | 227.68 | 48.28 | 1.94 | 67.7 |
| CLB133B48V | 48 | 30~57 | 1.70 | 79.2 | 5200 | 7.89 | 279.43 | 74.23 | 2.92 | 78.2 |
