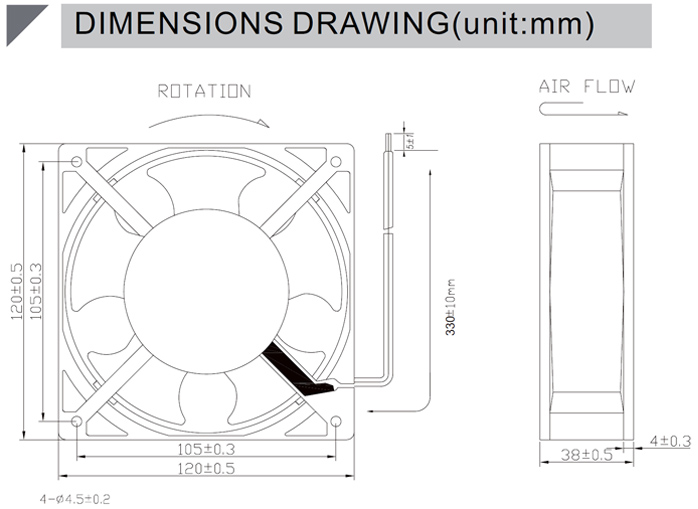

l Size / Dimension: 120x120x38mm
l Voltage - Rated：110VAC / 220VAC
l Bearing Type: Sleeve / Dual Ball Bearing
l Air Flow: 1.6 ~ 3.2 m³/min（60 ~ 115 CFM）

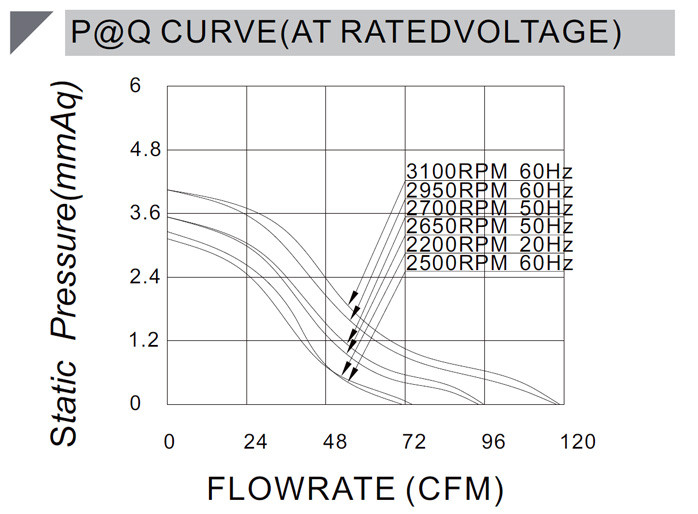

l Static Pressure: 2.68 ~ 4.06 mm H2O（0.1 ~ 0.14 in H2O）
l Noise: ＜29 - 47 dB(A)
l RPM: 1800 ~ 3100 RPM
l Current Rating (Amps): 0.09 ~ 0.22A
l Voltage Range: 100 ~ 125VAC / 220 ~ 240VAC
l Material - Frame: Aluminum (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：10.5 ~ 22 W
l Weight: 530g
Approved by CE, FCC, REACH, and RoHS.
| Model | P/N Code | Rated Voltage | Operationg Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| 型号 | P/N 附加码 | 额定电压 | 工作电压范围 | 额定电流 | 额定功率 | 转速 | 最大风量 | 最大风压 | 噪音 | ||
| PART.NO. | AY | VAC | VAC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLA12038L01X | 110 | 100~125 | 0.14/0.1 | 22/21 | 2700/3100 | 2.69/3.2 | 95/115 | 3.56/4.06 | 0.14/0.1 | 42/47 | |
| CLA12038M01X | 110 | 100-125 | 0.22/0.1 | 21/18 | 2650/2950 | 2.57/3.2 | 91/113 | 3.56/4.06 | 0.14/0.1 | 40/45 | |
| CLA12038H02X | 110 | 100-125 | 0.17/0.1 | 16/14 | 2500/2200 | 2.12/1.9 | 75/70 | 3.0/3.2 | 0.11/0.1 | 37/35 | |
| CLA12038L02X | 220 | 100-125 | 0.14/0.1 | 12/10.5 | 2000/1800 | 1.86/1.6 | 66/60 | 2.78/2.68 | 0.1/0.1 | 30/29 | |
| CLA12038M02X | 220 | 220-240 | 0.12/11 | 20/19 | 2650/2950 | 2.57/3.2 | 91/113 | 3.56/4.06 | 0.14/0.1 | 40/45 | |
| CLA12038H02X | 220 | 220-240 | 0.09/0.0 | 16/14 | 2500/2200 | 2.12/1.9 | 75/70 | 3.0/3.2 | 0.11/0.1 | 37/35 | |
