AC Cooling Fan

  • 13538 110V 220V 380VAC (135x135x38mm) Cooling Fan
  • 13538 110V 220V 380VAC (135x135x38mm) Cooling Fan
  • 13538 110V 220V 380VAC (135x135x38mm) Cooling Fan
13538 110V 220V 380VAC (135x135x38mm) Cooling Fan13538 110V 220V 380VAC (135x135x38mm) Cooling Fan13538 110V 220V 380VAC (135x135x38mm) Cooling Fan

13538 110V 220V 380VAC (135x135x38mm) Cooling Fan

  • Product description: 13538 - 135x135x38mm 110V 220V 380VAC Fan Sleeve/ Dual Ball Bearing 3.95m³/min 141CFM - AC Brushless Axial fan and quiet cooling solutions from Cooling Technology.
  • INQUIRY

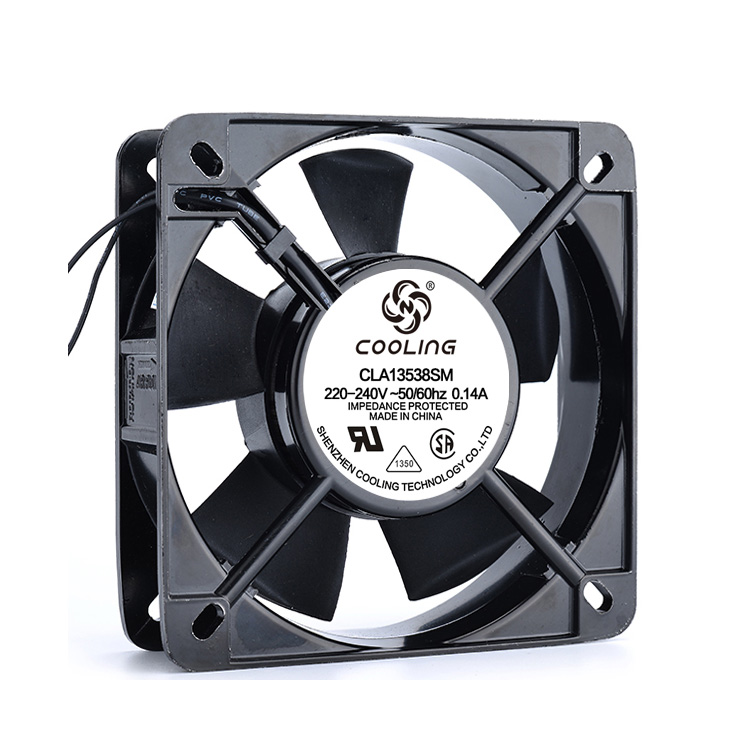

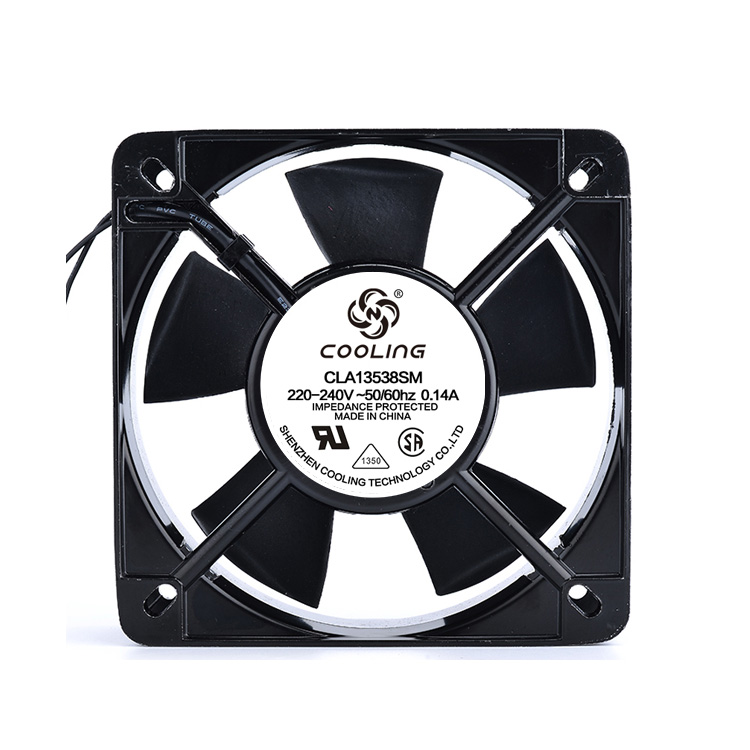

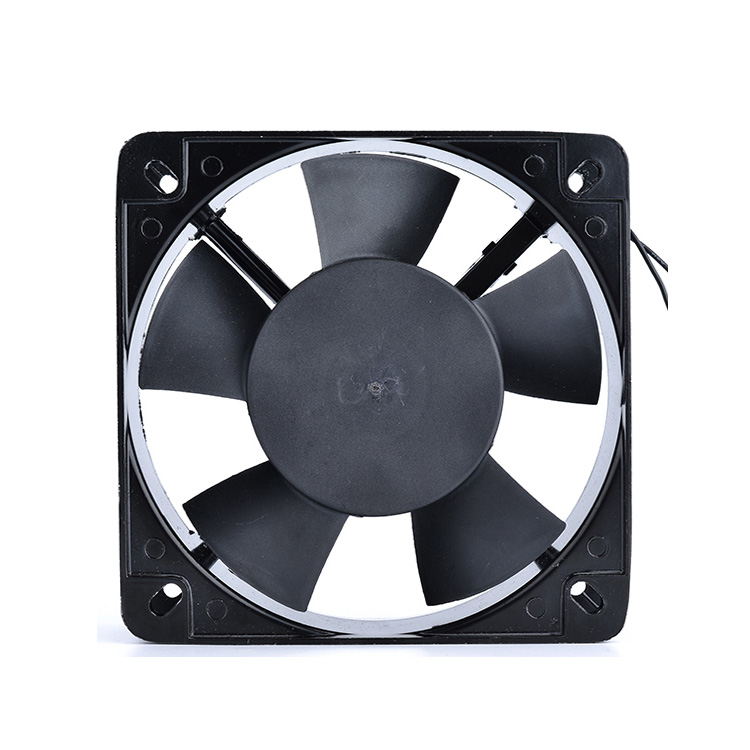

135x135x38mm 110V 220V 380VAC Cooling Fan


Product Attributes

Size / Dimension: 135x135x38mm

Voltage - Rated110VAC / 220VAC / 380VAC

Bearing Type: Sleeve / Dual Ball Bearing

Air Flow: 2.6 ~ 3.95 m³/min(93 ~ 141 CFM

Static Pressure: 1.8 ~ 6.8 mm H2O(0.07 ~ 0.26 in H2O

Noise: 39 - 45 dB(A)

RPM: 2100 ~ 3000 RPM

Current Rating (Amps): 0.06 ~ 0.22A

Voltage Range: 100 ~ 125VAC / 220 ~ 240VAC / 360-400VAC

Material - Frame: Aluminum (Flammability: UL94V-0)

Material - Blade: Plastic (Flammability: UL94V-0)

Power (Watts)9 ~ 23 W

Weight: 570g



Certifications:

CE Listed

FCC Listed

REACH Compliant

Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VAC VAC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLA13538H03X 380 360-400 0.06 23/21 2600/3000 3.22/3.95 115/141 6.5/6.8 0.26/0.2 43/45
CLA13538H02X 220 220-240 0.14 23/21 2600/3000 3.22/3.95 115/141 6.5/6.8 0.26/0.2 43/45
CLA13538M02X 220 220-240 0.10 15/14 2400/2700 3.00/3.36 107/120 4.3/5.1 0.17/0.2 41/43
CLA13538L02X 220 220-240 0.07 10/9 2100/2400 2.60/3.00 93/107 1.8/3.0 0.07/0.1 39/41
CLA13538H01X 110 100-125 0.22 23/21 2600/3000 3.22/3.95 115/141 6.5/6.8 0.26/0.2 43/45
CLA13538M01X 110 100-125 0.18 15/14 2400/2700 3.00/3.36 107/120 4.3/5.1 0.17/0.2 41/43
CLA13538L01X 110 100-125 0.12 10/9 2100/2400 2.60/3.00 93/107 1.8/3.0 0.07/0.1 39/41
