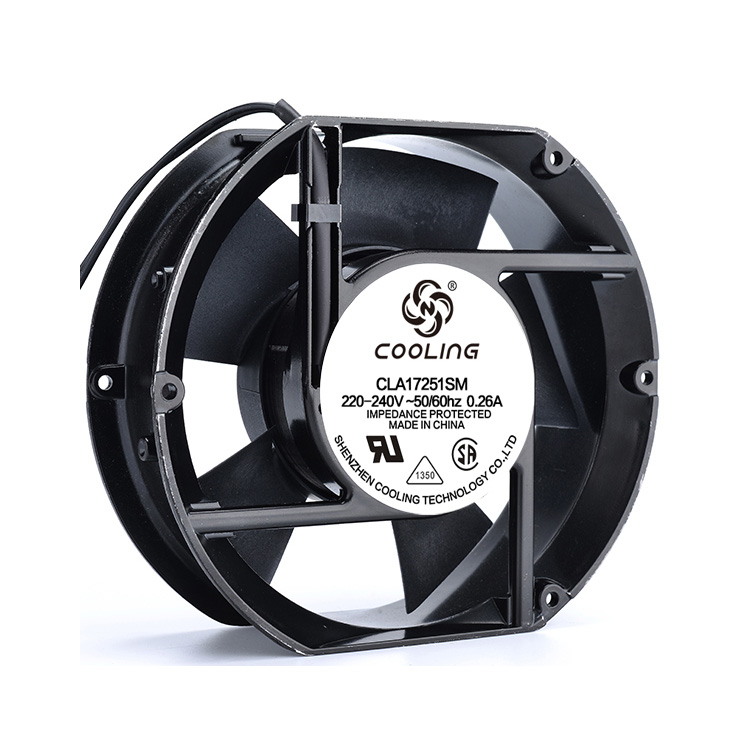

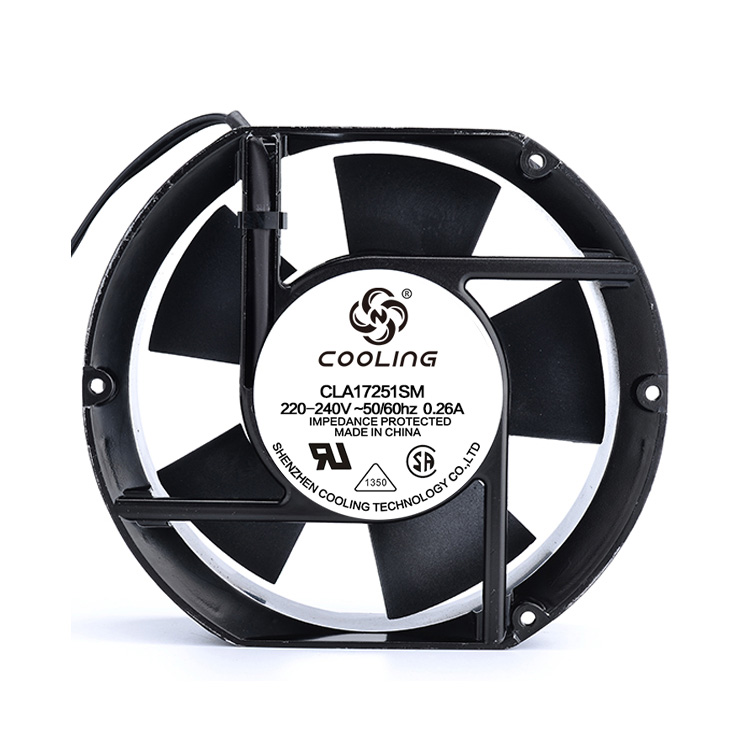

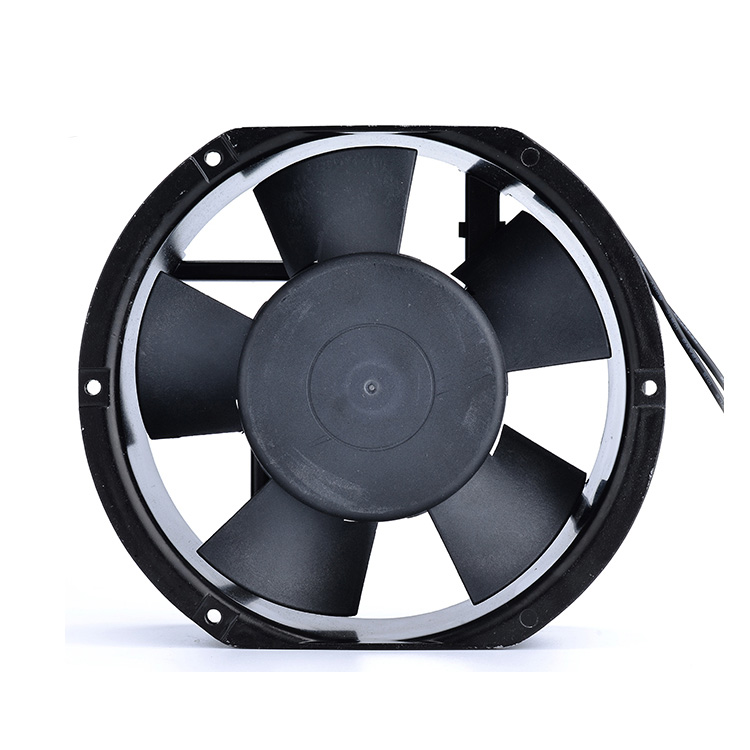

172x150x51mm 110V 220VAC Cooling Fan
Product Attributes
l Size / Dimension: 172x150x51mm
l Voltage - Rated：110VAC / 220VAC
l Bearing Type: Sleeve / Dual Ball Bearing
l Air Flow: 4.7 / 5.6 m³/min（166 / 198 CFM）
l Static Pressure: 11.3 / 13.8 mm H2O（0.44 / 0.5 in H2O）
l Noise: ＜52 / 62 dB(A)
l RPM: 2700 / 2950 RPM
l Current Rating (Amps): 0.2 / 0.4A
l Voltage Range: 110 ~ 125VAC / 220 ~ 240VAC
l Material - Frame: Aluminum (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：26 / 28 W
l Weight: 908g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VAC | VAC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLA17251L01X | 110 | 110-125 | 0.4 | 26/28 | 2700/2950 | 4.7/5.6 | 166/198 | 11.3/13.8 | 0.44/0.5 | 52/62 |
| CLA17251L02X | 220 | 220-240 | 0.20 | 26/28 | 27002950 | 4.7/5.6 | 166/198 | 11.3/13.8 | 0.44/0.5 | 52/62 |
