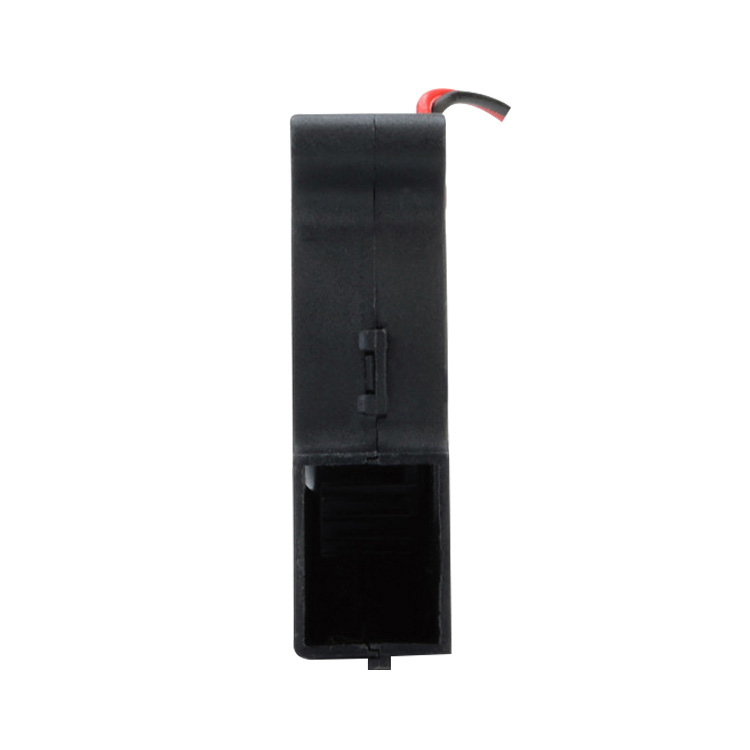

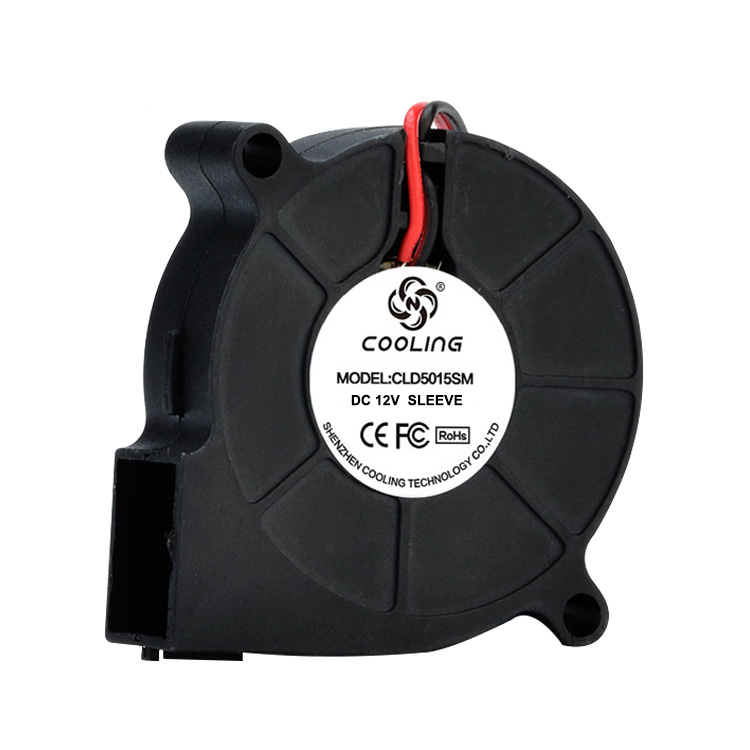

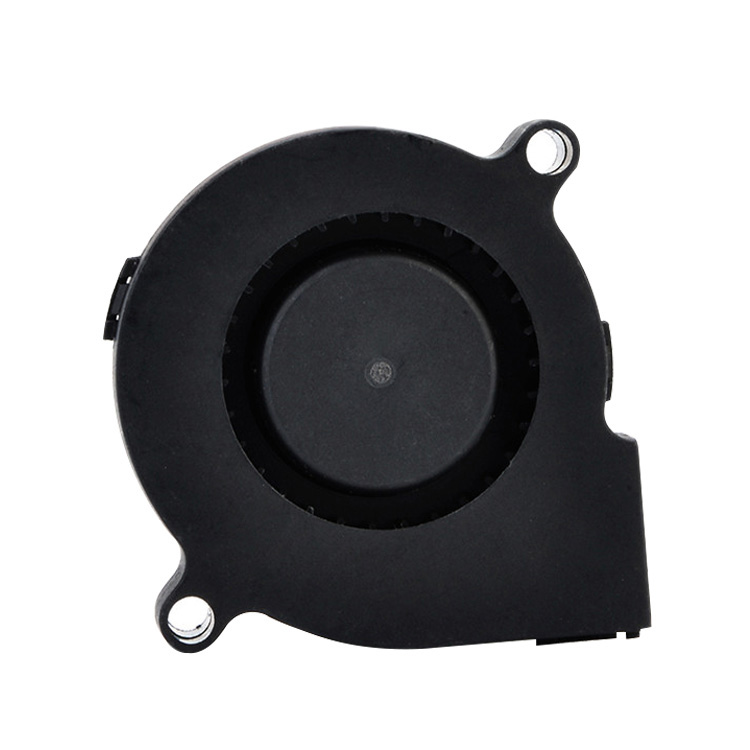

50x50x15mm 5V 12VDC Cooling Blower
Product Attributes
l Size / Dimension: 50x50x15mm
l Voltage - Rated：5VDC / 12VDC
l Bearing Type: Sleeve / Hydraulic / Ball Bearing
l Air Flow: 0.08 ~ 0.133m³/min（2.81 ~ 4.71 CFM）
l Static Pressure: 7.56 ~ 23.98 mm H2O（0.298 ~ 0.944 in H2O）
l Noise: ＜34.3 ~ 46.3 dB(A)
l RPM: 4000 / 6500 RPM
l Current Rating (Amps): 0.14 ~ 0.768A
l Voltage Range: 1.8 ~ 3.6 ~ 6.8VDC / 7 ~ 13.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：1.68 ~ 3.84W
l Weight: 27g
Certifications:
CE & FCC Listed
REACH Compliant
Model
Rated Voltage
Operating Voltage Range
Rated Current
Rated
Input Power
Speed
Maximum Air Flow
Maximum Air Pressure
Noise
PART.NO.
VDC
VDC
Amp
Watt
R.P.M
M³/min
CFM
mmH2O
InH2O
dB-A
CLB5015L05X
5
1.8~3.6~6.8
0.34
1.68
4000
0.08
2.81
7.56
0.298
34.3
CLB5015M05X
5
1.8~3.6~6.8
0.43
2.16
4500
0.089
3.15
9.69
0.381
37.1
CLB5015H05X
5
1.8~3.6~6.8
0.53
2.64
5000
0.1
3.54
12.57
0.495
39.6
CLB5015HH05X
5
1.8~3.6~6.8
0.62
3.12
5500
0.112
3.96
16.12
0.635
42.5
CLB5015VH05X
5
1.8~3.6~6.8
0.72
3.6
6000
0.12
4.23
19.38
0.763
44.3
CLB5015HV05X
5
1.8~3.6~6.8
0.768
3.84
6500
0.133
4.71
23.98
0.944
46.3
CLB5015L12X
12
7~13.5
0.14
1.68
4000
0.08
2.81
7.56
0.298
34.3
CLB5015M12X
12
7~13.5
0.18
2.16
4500
0.089
3.15
9.69
0.381
37.1
CLB5015H12X
12
7~13.5
0.22
2.64
5000
0.1
3.54
12.57
0.495
39.6
CLB5015HH12X
12
7~13.5
0.26
3.12
5500
0.112
3.96
16.12
0.635
42.5
CLB5015VH12X
12
7~13.5
0.3
3.6
6000
0.12
4.23
19.38
0.763
44.3
CLB5015HV12X
12
7~13.5
0.32
3.84
6500
0.133
4.71
23.98
0.944
46.3
