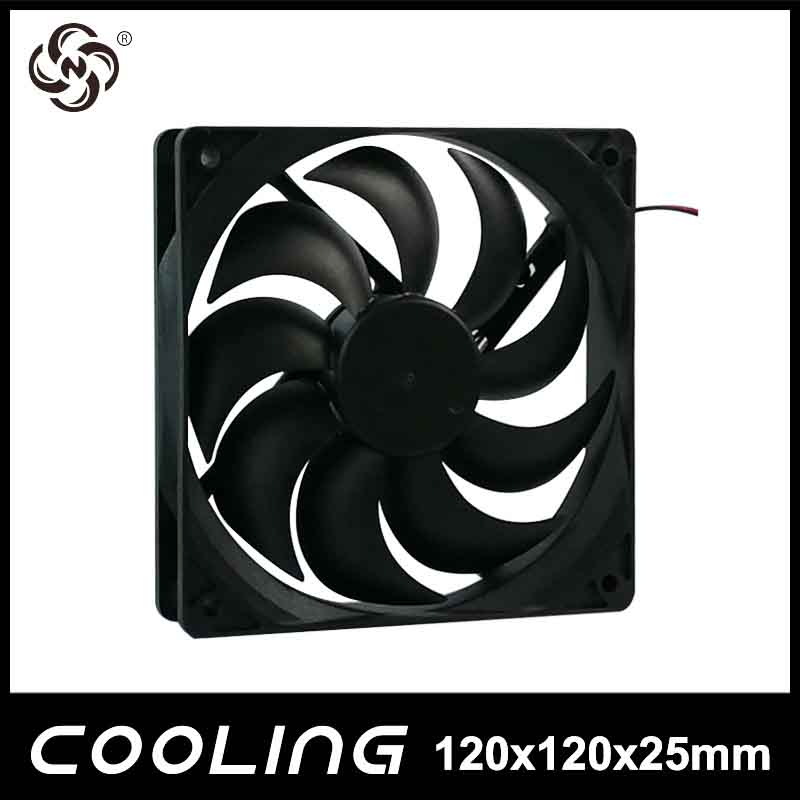

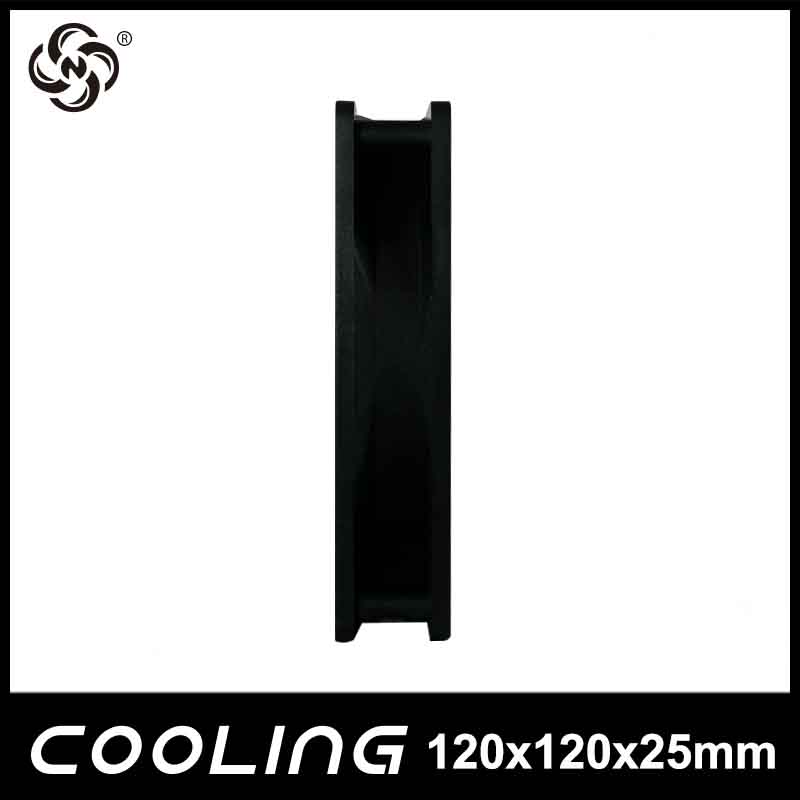

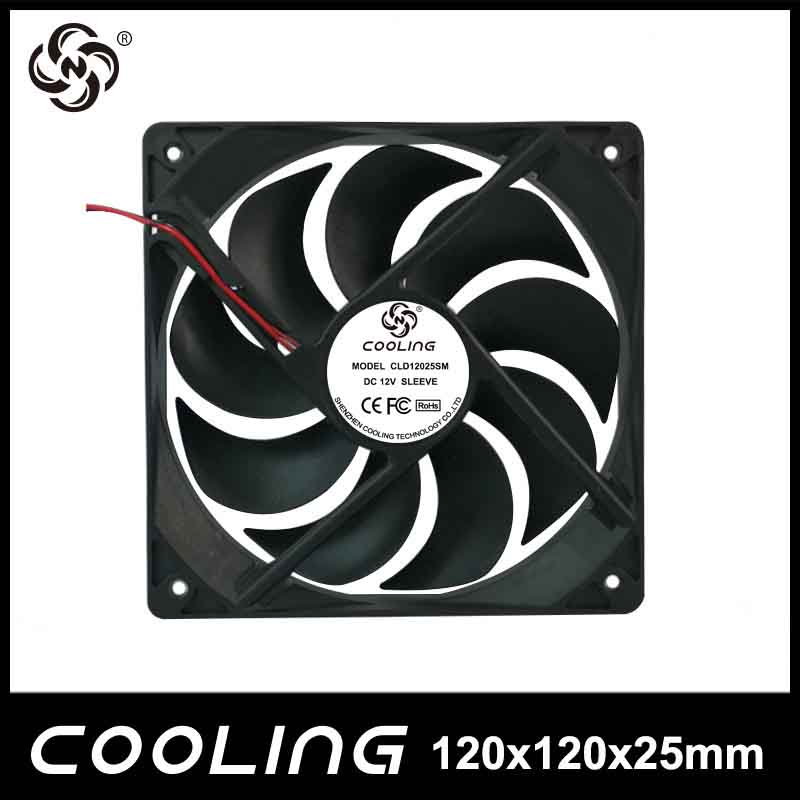

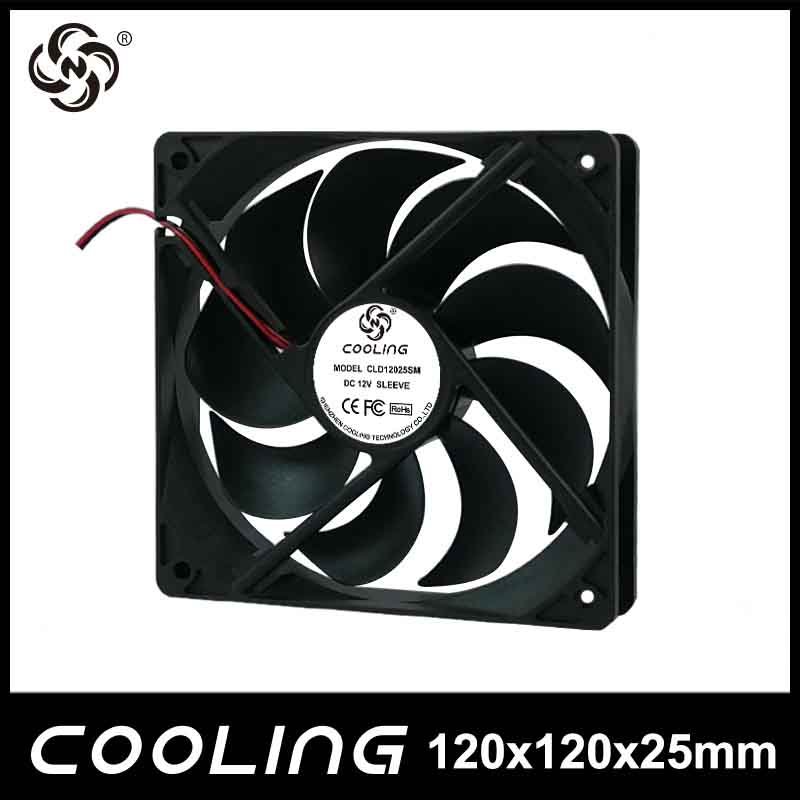

12025B 12V 24V 48VDC (120X120X25mm) Cooling Fan

  • Product description: 12025B - 120X120X25mm 12V 24V 48VDC Fan Sleeve/Hydraulic/Dual Ball Bearing 3.95m³/min 139CFM - DC Brushless fan & quiet cooling solutions from Cooling Technology.
  • INQUIRY

120X120X25mm 12V 24V 48VDC Cooling Fan


Product Attributes

l Size / Dimension: 120X120X25mm

l Voltage - Rated12VDC / 24VDC / 48VDC

l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing

l Air Flow: 1.370 ~ 3.950 m³/min(48.3 ~ 139 CFM

l Static Pressure: 1.97 ~ 13.6 mm H2O(0.078 ~ 0.535 in H2O

l Noise: 31.8 – 57.9 dB(A)

l RPM: 1500 ~ 4000 RPM

l Current Rating (Amps): 0.045 ~ 1.0A

l Voltage Range: 8 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC

l Material - Frame: Plastic (Flammability: UL94V-0)

l Material - Blade: Plastic (Flammability: UL94V-0)

l Power (Watts)2.16 ~ 12 W

l Weight: 185g



Certifications:

CE Listed

FCC Listed

REACH Compliant


Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLD12025L12X 12 8~13.5 0.18 2.16 1500 1.370 48.3 1.97 0.078 31.8
CLD12025M12X 12 8~13.5 0.25 3.0 2000 1.903 67.2 3.45 0.136 38.9
CLD12025H12X 12 8~13.5 0.31 3.72 2500 2.365 83.5 5.50 0.217 43.8
CLD12025HH12X 12 8~13.5 0.45 5.4 3000 2.924 103. 7.61 0.300 48.2
CLD12025VH12X 12 8~13.5 0.67 8.0 3500 3.458 122. 10.44 0.411 54.2
CLD12025HV12X 12 8~13.5 1.0 12.0 4000 3.950 139. 13.60 0.535 57.9
CLD12025L24X 24 18~26.5 0.09 2.16 1500 1.370 48.3 1.97 0.078 31.8
CLD12025M24X 24 18~26.5 0.125 3.0 2000 1.903 67.2 3.45 0.136 38.9
CLD12025H24X 24 18~26.5 0.155 3.72 2500 2.365 83.5 5.50 0.217 43.8
CLD12025HH24X 24 18~26.5 0.225 5.4 3000 2.924 103. 7.61 0.300 48.2
CLD12025VH24X 24 18~26.5 0.33 8 3500 3.458 122. 10.44 0.411 54.2
CLD12025HV24X 24 18~26.5 0.5 12 4000 3.950 139. 13.60 0.535 57.9
CLD12025L48X 48 36~54 0.045 2.16 1500 1.370 48.3 1.97 0.078 31.8
CLD12025M48X 48 36~54 0.063 3.0 2000 1.903 67.2 3.45 0.136 38.9
CLD12025H48X 48 36~54 0.078 3.72 2500 2.365 83.5 5.50 0.217 43.8
CLD12025HH48X 48 36~54 0.112 5.4 3000 2.924 103. 7.61 0.300 48.2
CLD12025VH48X 48 36~54 0.17 8.0 3500 3.458 122. 10.44 0.411 54.2
CLD12025HV48X 48 36~54 0.25 12.0 4000 3.950 139. 13.60 0.535 57.9
