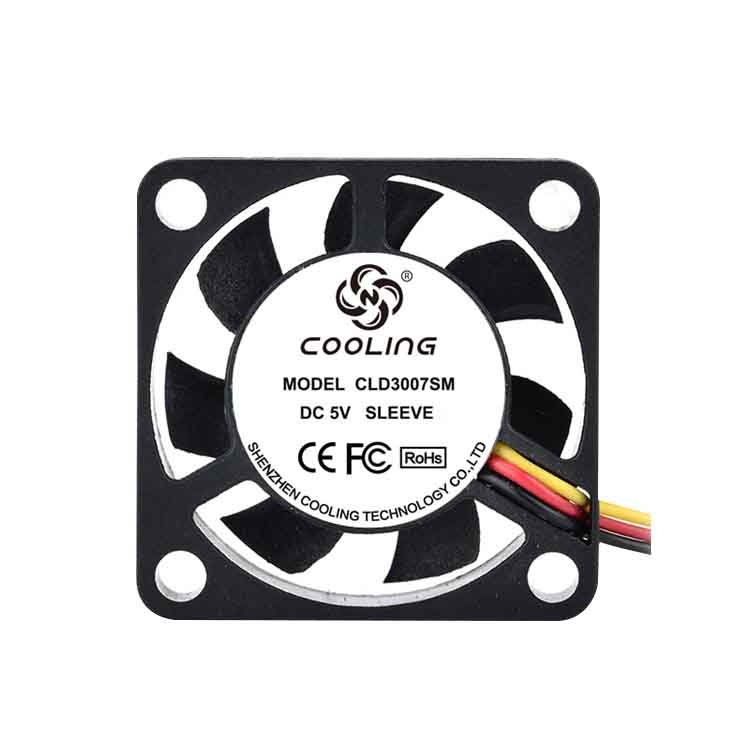

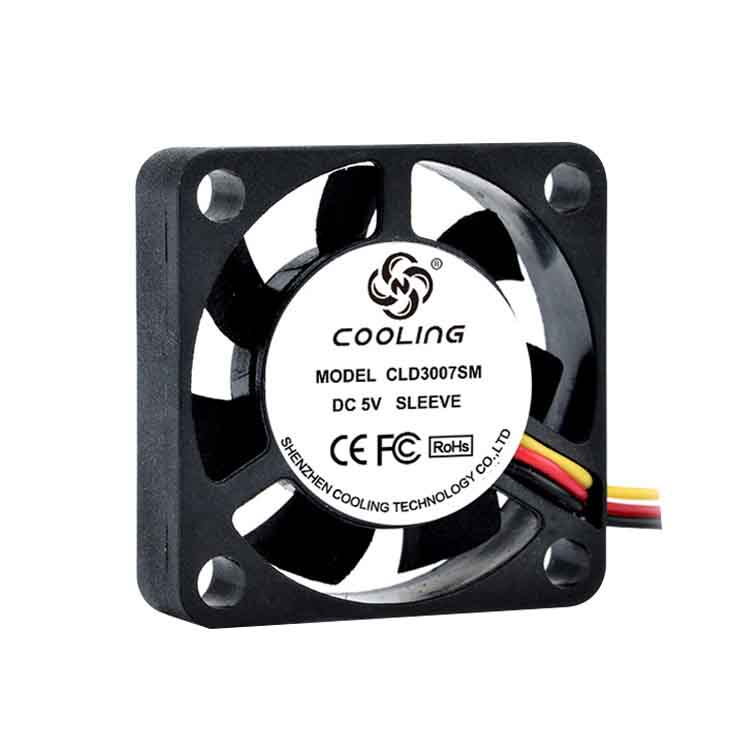

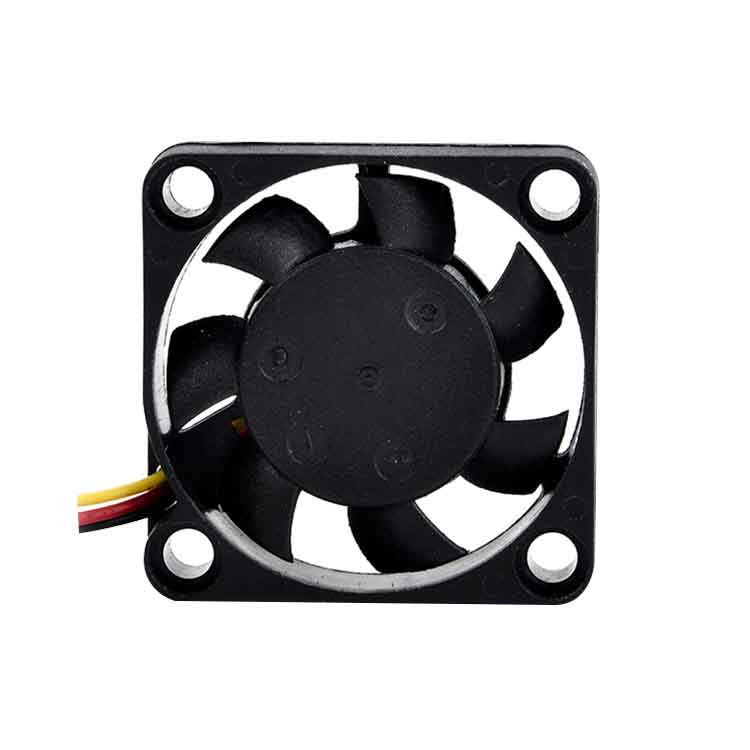

30x30x7mm 5V 12VDC Cooling Fan
Product Attributes
l Size / Dimension: 30x30x7mm
l Voltage - Rated：5VDC / 12VDC
l Bearing Type: Sleeve / Hydraulic / Ball Bearing
l Air Flow: 0.056 ~ 0.12 m³/min（1.99 ~ 4.25 CFM）
l Static Pressure: 1.71 ~ 8.25 mm H2O（0.067 ~ 0.325 in H2O）
l Noise: ＜25.5 / 34.9 dB(A)
l RPM: 6000 ~ 13000 RPM
l Current Rating (Amps): 0.06 ~ 0.24A
l Voltage Range: 1.8 ~ 3 ~6VDC / 8.5 ~ 13.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：0.72 ~ 1.2 W
Certifications:
CE Listed
FCC Listed
REACH Compliant
Model
Rated Voltage
Operating Voltage Range
Rated Current
Rated
Input Power
Speed
Maximum Air Flow
Maximum Air Pressure
Noise
PART.NO.
VDC
VDC
Amp
Watt
R.P.M
M³/min
CFM
mmH2O
InH2O
dB-A
CLD3007L05X
5
1.8~3~6
0.14
0.72
6000
0.056
1.99
1.71
0.067
25.5
CLD3007M05X
5
1.8~3~6
0.17
0.84
8000
0.075
2.66
2.70
0.106
27.4
CLD3007H05X
5
1.8~3~6
0.19
0.96
10000
0.098
3.46
4.13
0.163
30.1
CLD3007HH05X
5
1.8~3~6
0.22
1.08
11000
0.107
3.78
4.94
0.194
32.0
CLD3007VH05X
5
1.8~3~6
0.24
1.2
13000
0.120
4.25
8.25
0.325
34.9
CLD3007L12X
12
8.5~13.5
0.06
0.72
6000
0.056
1.99
1.71
0.067
25.5
CLD3007M12X
12
8.5~13.5
0.07
0.84
8000
0.075
2.66
2.70
0.106
27.4
CLD3007H12X
12
8.5~13.5
0.08
0.96
10000
0.098
3.46
4.13
0.163
30.1
CLD3007HH12X
12
8.5~13.5
0.09
1.08
11000
0.107
3.78
4.94
0.194
32.0
CLD3007VH12X
12
8.5~13.5
0.1
1.2
13000
0.120
4.25
8.25
0.325
34.9
