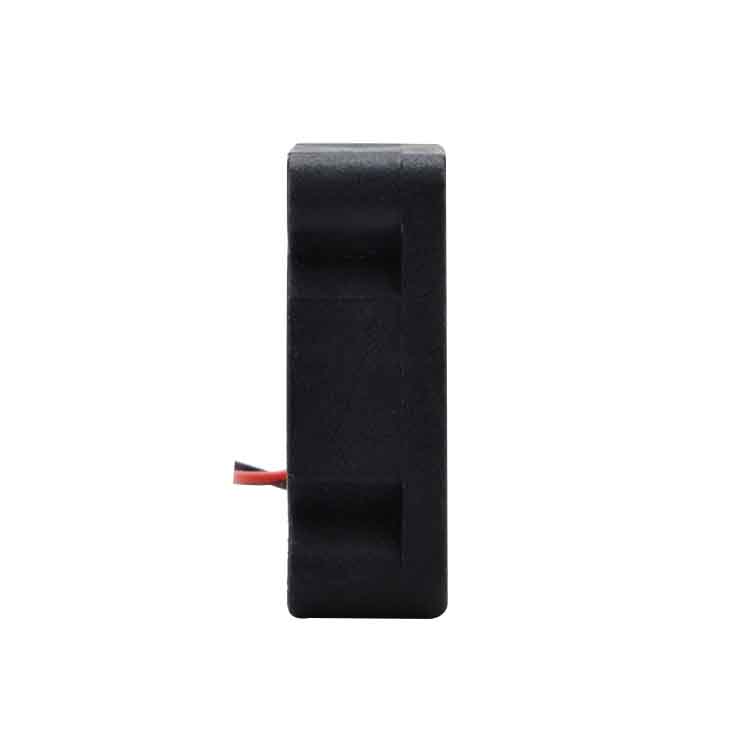

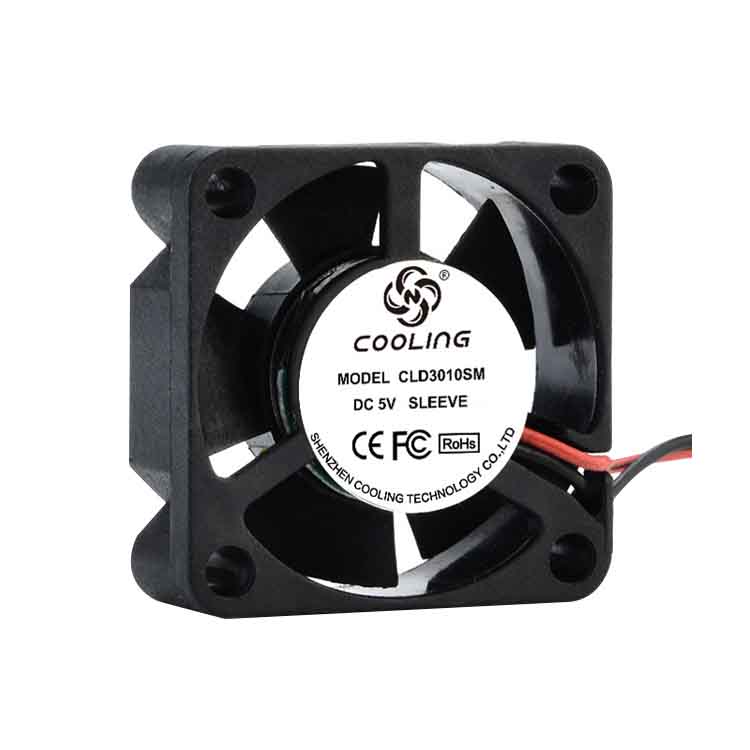

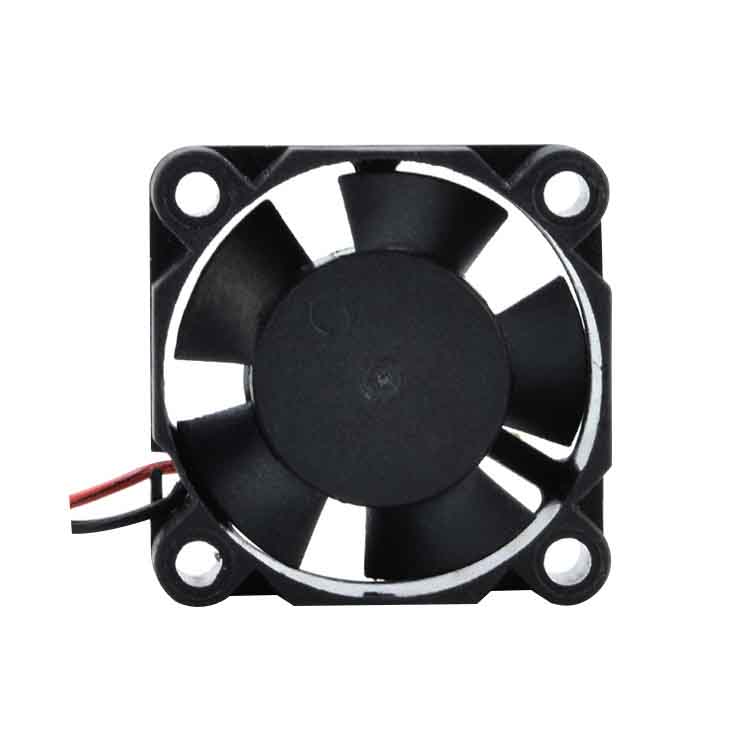

30x30x10mm 5V 12VDC Cooling Fan
Product Attributes
l Size / Dimension: 30x30x10mm
l Voltage - Rated：5VDC / 12VDC
l Bearing Type: Sleeve / Hydraulic / Ball Bearing
l Air Flow: 0.028 ~ 0.12 m³/min（0.98 ~ 4.25 CFM）
l Static Pressure: 1.22 ~ 8.25 mm H2O（0.048 ~ 0.325 in H2O）
l Noise: ＜15.5 / 34.9 dB(A)
l RPM: 5000 ~ 13000 RPM
l Current Rating (Amps): 0.06 ~ 0.24A
l Voltage Range: 1.8 ~ 3 ~6VDC / 8.5 ~ 13.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：0.72 ~ 1.2 W
l Weight: 8g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLD3010L05X | 5 | 1.8~3~6 | 0.14 | 0.72 | 5000 | 0.028 | 0.98 | 1.22 | 0.048 | 15.5 |
| CLD3010M05X | 5 | 1.8~3~6 | 0.17 | 0.84 | 7000 | 0.064 | 2.25 | 2.50 | 0.098 | 22.4 |
| CLD3010H05X | 5 | 1.8~3~6 | 0.19 | 0.96 | 9000 | 0.084 | 2.95 | 4.25 | 0.167 | 26.3 |
| CLD3010HH05X | 5 | 1.8~3~6 | 0.22 | 1.08 | 11000 | 0.102 | 3.61 | 6.28 | 0.247 | 32.0 |
| CLD3010VH05X | 5 | 1.8~3~6 | 0.24 | 1.2 | 13000 | 0.120 | 4.25 | 8.25 | 0.325 | 34.9 |
| CLD3010L12X | 12 | 8.5~13.5 | 0.06 | 0.72 | 5000 | 0.028 | 0.98 | 1.22 | 0.048 | 15.5 |
| CLD3010M12X | 12 | 8.5~13.5 | 0.07 | 0.84 | 7000 | 0.064 | 2.25 | 2.50 | 0.098 | 22.4 |
| CLD3010H12X | 12 | 8.5~13.5 | 0.08 | 0.96 | 9000 | 0.084 | 2.95 | 4.25 | 0.167 | 26.3 |
| CLD3010HH12X | 12 | 8.5~13.5 | 0.09 | 1.08 | 11000 | 0.102 | 3.61 | 6.28 | 0.247 | 32.0 |
| CLD3010VH12X | 12 | 8.5~13.5 | 0.1 | 1.2 | 13000 | 0.120 | 4.25 | 8.25 | 0.325 | 34.9 |
