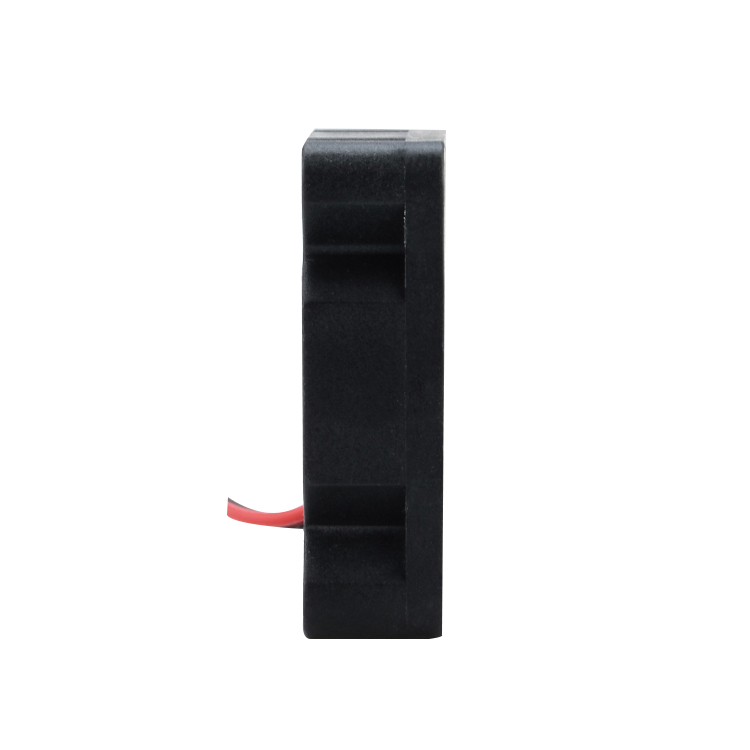

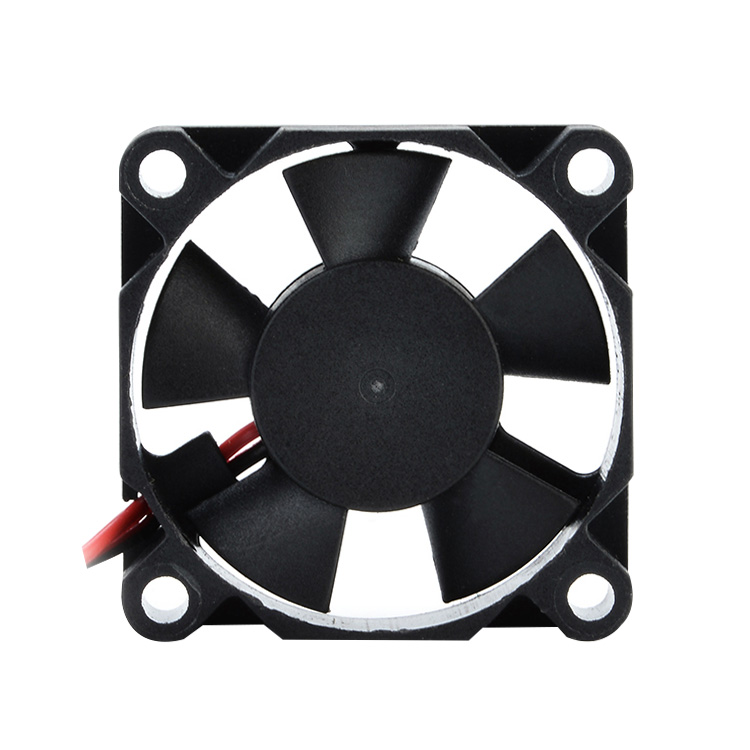

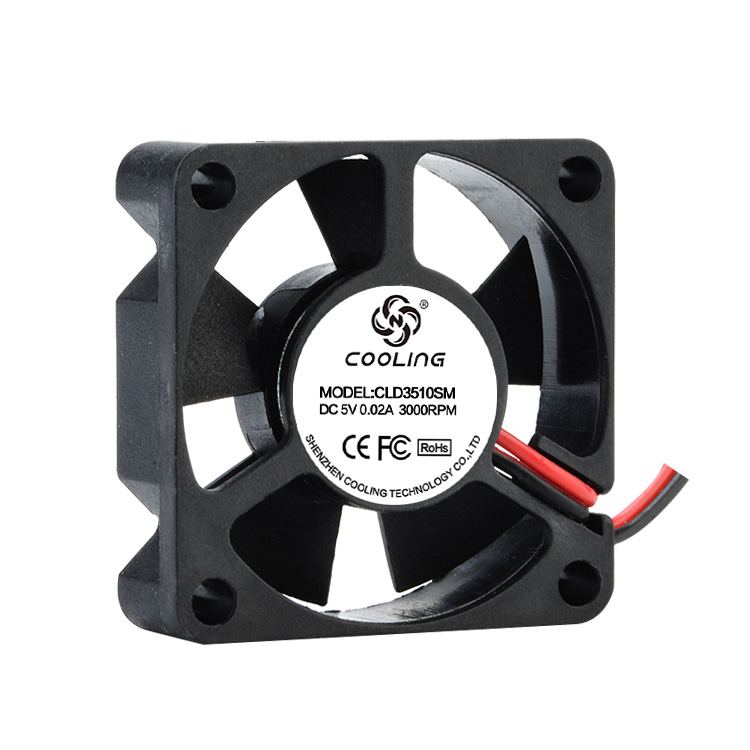

35x35x10mm 5V 12VDC Cooling Fan
Product Attributes
l Size / Dimension: 35x35x10mm
l Voltage - Rated：5VDC / 12VDC
l Bearing Type: Sleeve / Hydraulic / Ball Bearing
l Air Flow: 0.111 ~ 0.211 m³/min（3.91 ~ 7.41 CFM）
l Static Pressure: 2.84 ~ 8.74 mm H2O（0.112 ~ 0.344 in H2O）
l Noise: ＜28 / 44.7 dB(A)
l RPM: 7000 ~ 14000 RPM
l Current Rating (Amps): 0.042 ~ 0.22A
l Voltage Range: 1.8 ~ 3.6 ~6.8VDC / 7 ~ 13.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：0.5 ~ 1.1 W
l Weight: 9g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLD3510M05X | 5 | 1.8~3.6~6.8 | 0.1 | 0.5 | 7000 | 0.111 | 3.91 | 2.84 | 0.112 | 28 |
| CLD3510ML05X | 5 | 1.8~3.6~6.8 | 0.12 | 0.6 | 8000 | 0.128 | 4.5 | 3.51 | 0.138 | 31 |
| CLD3510H05X | 5 | 1.8~3.6~6.8 | 0.13 | 0.65 | 9000 | 0.142 | 5 | 4.31 | 0.170 | 34.4 |
| CLD3510LH05X | 5 | 1.8~3.6~6.8 | 0.14 | 0.7 | 10000 | 0.151 | 5.32 | 5.12 | 0.202 | 37.1 |
| CLD3510HH05X | 5 | 1.8~3.6~6.8 | 0.16 | 0.8 | 11000 | 0.171 | 6.06 | 6.11 | 0.241 | 39.4 |
| CLD3510HL05X | 5 | 1.8~3.6~6.8 | 0.18 | 0.9 | 12000 | 0.182 | 6.39 | 6.77 | 0.267 | 41 |
| CLD3510VH05X | 5 | 1.8~3.6~6.8 | 0.2 | 1.0 | 13000 | 0.195 | 6.87 | 7.97 | 0.314 | 42.6 |
| CLD3510HV05X | 5 | 1.8~3.6~6.8 | 0.22 | 1.1 | 14000 | 0.211 | 7.41 | 8.74 | 0.344 | 44.7 |
| CLD3510M12X | 12 | 7~13.5 | 0.042 | 0.5 | 7000 | 0.111 | 3.91 | 2.84 | 0.112 | 28 |
| CLD3510ML12X | 12 | 7~13.5 | 0.05 | 0.6 | 8000 | 0.128 | 4.5 | 3.51 | 0.138 | 31 |
| CLD3510H12X | 12 | 7~13.5 | 0.054 | 0.65 | 9000 | 0.142 | 5 | 4.31 | 0.170 | 34.4 |
| CLD3510LH12X | 12 | 7~13.5 | 0.058 | 0.7 | 10000 | 0.151 | 5.32 | 5.12 | 0.202 | 37.1 |
| CLD3510HH12X | 12 | 7~13.5 | 0.067 | 0.8 | 11000 | 0.171 | 6.06 | 6.11 | 0.241 | 39.4 |
| CLD3510HL12X | 12 | 7~13.5 | 0.075 | 0.9 | 12000 | 0.182 | 6.39 | 6.77 | 0.267 | 41 |
| CLD3510VH12X | 12 | 7~13.5 | 0.083 | 1.0 | 13000 | 0.195 | 6.87 | 7.97 | 0.314 | 42.6 |
| CLD3510HV12X | 12 | 7~13.5 | 0.092 | 1.1 | 14000 | 0.211 | 7.41 | 8.74 | 0.344 | 44.7 |
