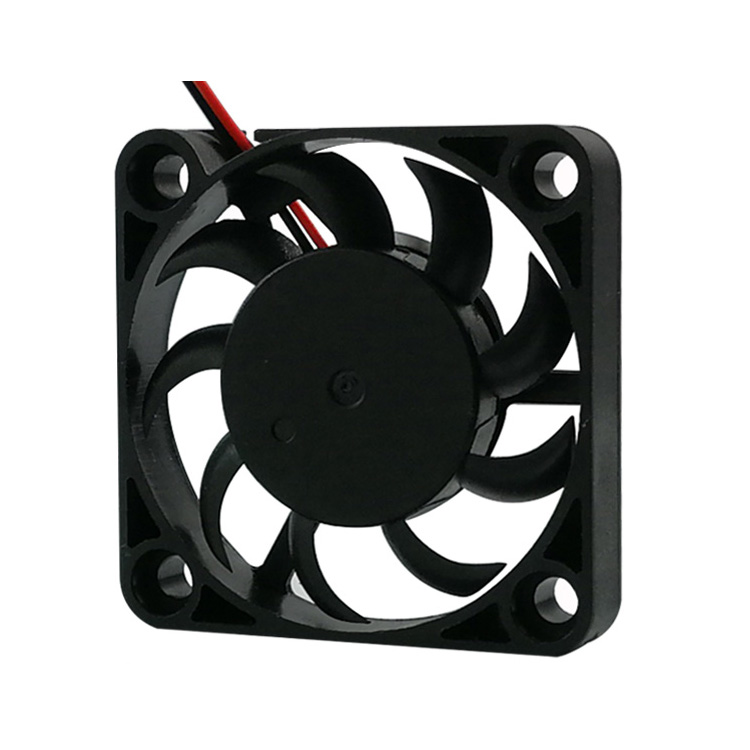

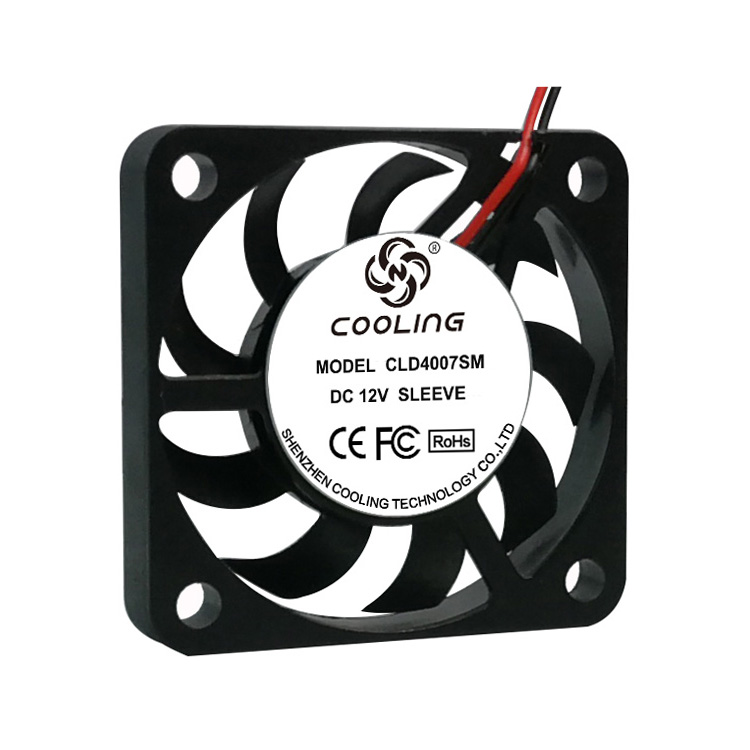

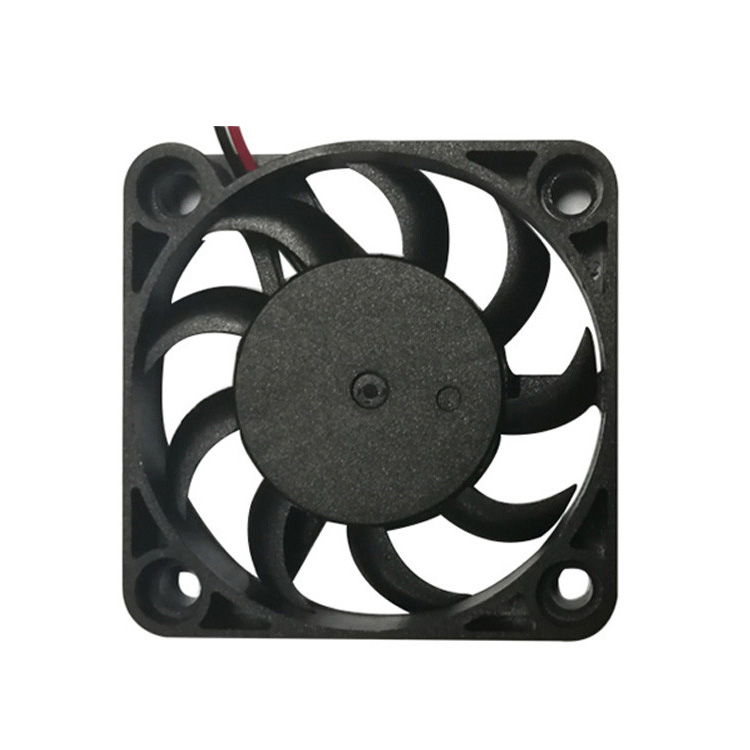

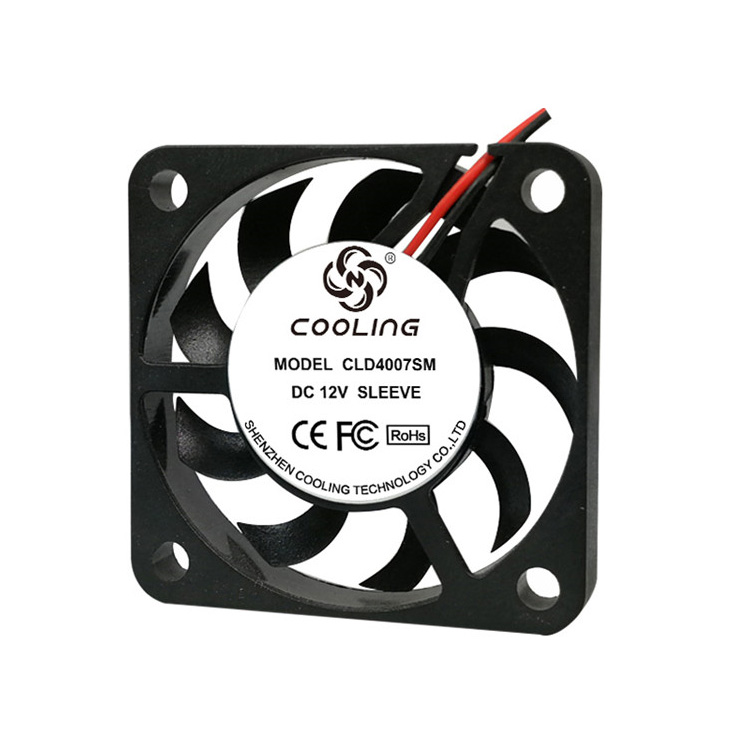

40x40x7mm 5V 12VDC Cooling Fan
Product Attributes
l Size / Dimension: 40x40x7mm
l Voltage - Rated：5VDC / 12VDC
l Bearing Type: Sleeve / Hydraulic / Ball Bearing
l Air Flow: 0.089 ~ 0.153 m³/min（3.14 ~ 5.37 CFM）
l Static Pressure: 0.84 ~ 2.4 mm H2O（0.033 ~ 0.094 in H2O）
l Noise: ＜23.5 / 31.5 dB(A)
l RPM: 4500 ~ 7500 RPM
l Current Rating (Amps): 0.05 ~ 0.24A
l Voltage Range: 1.8 ~ 3 ~6VDC / 8.5 ~ 13.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：0.6 ~ 1.2 W
l Weight: 14.5g
Certifications:
CE Listed
FCC Listed
REACH Compliant
Model
Rated Voltage
Operating Voltage Range
Rated Current
Rated
Input Power
Speed
Maximum Air Flow
Maximum Air Pressure
Noise
PART.NO.
VDC
VDC
Amp
Watt
R.P.M
M³/min
CFM
mmH2O
InH2O
dB-A
CLD4007L05X
5
1.8~3~6
0.12
0.6
4500
0.089
3.14
0.84
0.033
23.5
CLD4007LM05X
5
1.8~3~6
0.144
0.72
5000
0.104
3.67
1.17
0.046
24.5
CLD4007ML05X
5
1.8~3~6
0.168
0.84
5500
0.113
3.96
1.4
0.055
25.6
CLD4007M05X
5
1.8~3~6
0.192
0.96
6000
0.131
4.6
1.65
0.065
27.5
CLD4007LH05X
5
1.8~3~6
0.2
1.02
6500
0.144
5.06
2.02
0.079
29.3
CLD4007H05X
5
1.8~3~6
0.216
1.08
7000
0.151
5.31
2.17
0.085
30.4
CLD4007HH05X
5
1.8~3~6
0.24
1.2
7500
0.153
5.37
2.4
0.094
31.5
CLD4007L12X
12
8.5~13.5
0.05
0.6
4500
0.089
3.14
0.84
0.033
23.5
CLD4007LM12X
12
8.5~13.5
0.06
0.72
5000
0.104
3.67
1.17
0.046
24.5
CLD4007ML12X
12
8.5~13.5
0.07
0.84
5500
0.113
3.96
1.4
0.055
25.6
CLD4007M12X
12
8.5~13.5
0.08
0.96
6000
0.131
4.6
1.65
0.065
27.5
CLD4007LH12X
12
8.5~13.5
0.085
1.02
6500
0.144
5.06
2.02
0.079
29.3
CLD4007H12X
12
8.5~13.5
0.09
1.08
7000
0.151
5.31
2.17
0.085
30.4
CLD4007HH12X
12
8.5~13.5
0.1
1.2
7500
0.153
5.37
2.4
0.094
31.5
