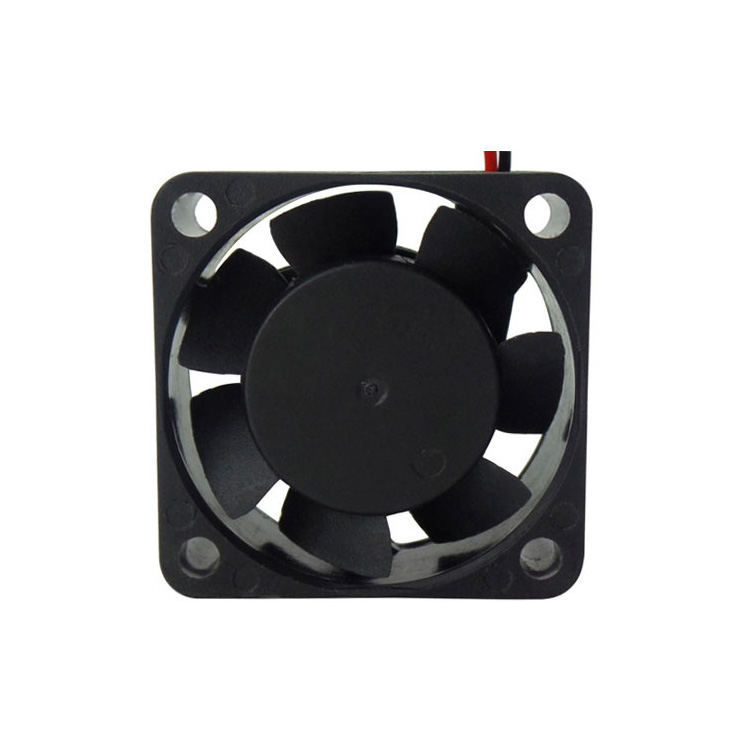

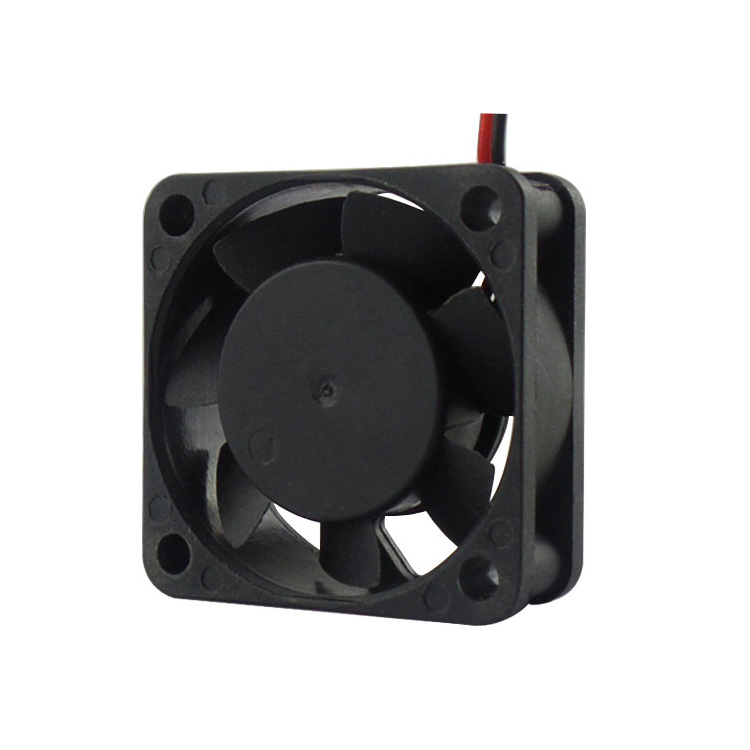

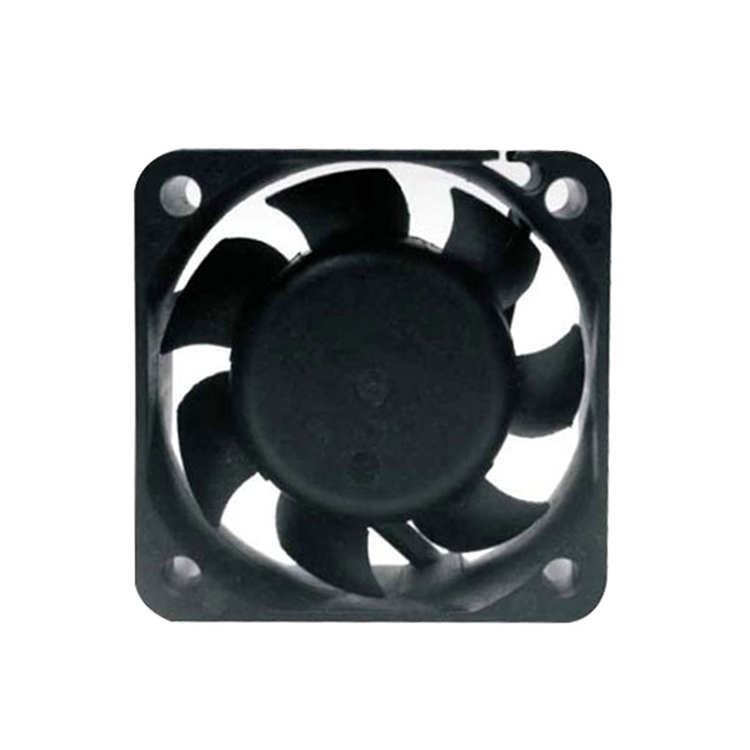

40x40x15mm 5V 12V 24VDC Cooling Fan
Product Attributes
l Size / Dimension: 40x40x15mm
l Voltage - Rated：5VDC / 12VDC / 24VDC
l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing
l Air Flow: 3.3 ~ 8.2 CFM
l Static Pressure: 2.80 ~ 10.3 mm H2O
l Noise: ＜20.8 – 34.9 dB(A)
l RPM: 4000 ~ 8000 RPM
l Current Rating (Amps): 0.03 ~ 0.21A
l Voltage Range: 1.8~3~6VDC / 7~13.5VDC / 18~26.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Weight: 24.5g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage |
Operating Voltage Range |
Rated Current |
Rated Input Power |
Speed | Maximum Air Flow | Air Pressure | Noise Level | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLD4015L05 | 5 | 1.8~3~6 | 0.12 | 0.6 | 4000 | 0.09 | 3.3 | 2.8 | 0.11 | 20.8 |
| CLD4015M05 | 5 | 1.8~3~6 | 0.21 | 1.05 | 6000 | 0.17 | 6.1 | 6.1 | 0.24 | 28 |
| CLD4015L12 | 12 |
7~13.5 |
0.05 | 0.6 | 4000 | 0.09 | 3.3 | 2.8 | 0.11 | 20.8 |
| CLD4015M12 | 12 |
7~13.5 |
0.10 | 1.2 | 6000 | 0.17 | 6.1 | 6.1 | 0.24 | 28 |
|
CLD4015H12 |
12 |
7~13.5 |
0.14 | 1.68 | 8000 | 0.23 | 8.2 | 10.3 | 0.41 | 34.9 |
|
CLD4015L24 |
24 |
18~26.5 |
0.03 | 0.72 | 4000 | 0.09 | 3.3 | 2.8 | 0.11 | 20.8 |
| CLD4015M24 | 24 |
18~26.5 |
0.05 | 1.2 | 6000 | 0.17 | 6.1 | 6.1 | 0.24 | 28 |
| CLD4015H24 | 24 |
18~26.5 |
0.07 | 1.68 | 8000 | 0.23 | 8.2 | 10.3 | 0.41 | 34.9 |
