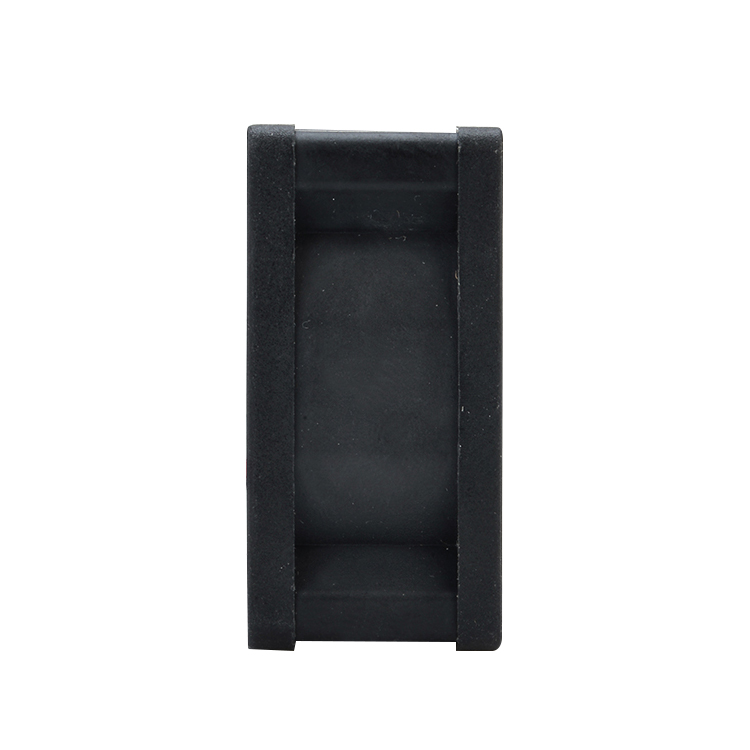

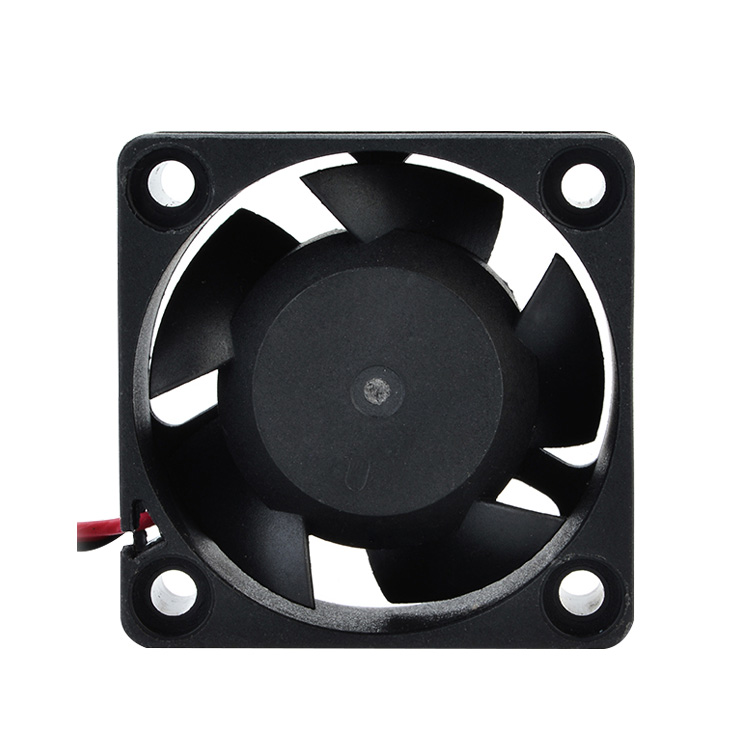

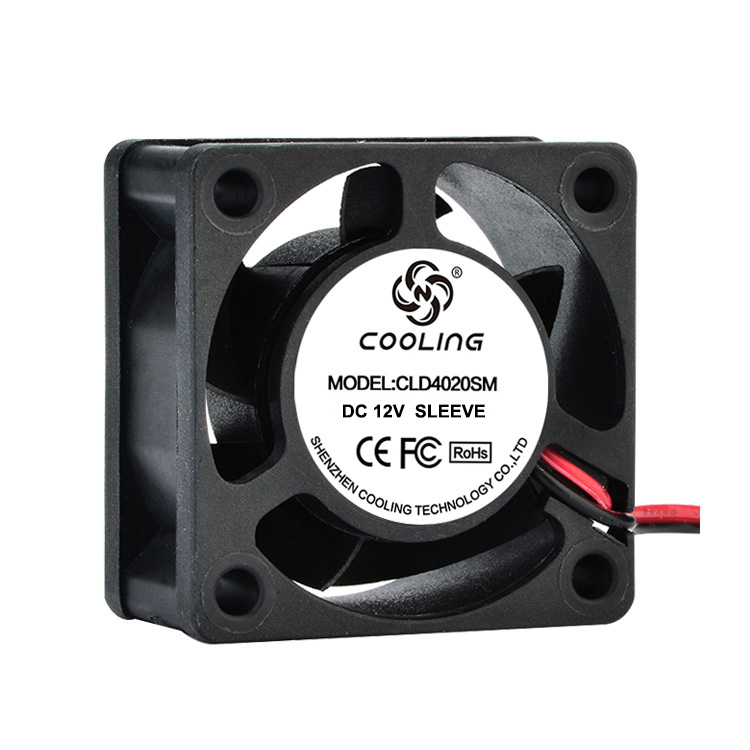

40x40x20mm 5V 12V 24VDC Cooling Fan
Product Attributes
l Size / Dimension: 40x40x20mm
l Voltage - Rated：5VDC / 12VDC / 24VDC
l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing
l Air Flow: 0.147 ~ 0.248 m³/min（5.19 ~ 8.77 CFM）
l Static Pressure: 2.62 ~ 7.52 mm H2O（0.103 ~ 0.296 in H2O）
l Noise: ＜20.9 / 37.2 dB(A)
l RPM: 5000 ~ 8500 RPM
l Current Rating (Amps): 0.04 ~ 0.24A
l Voltage Range: 1.8 ~ 3 ~6.8VDC / 7 ~ 13.5VDC / 18 ~ 26.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：0.72 ~ 1.2 W
l Weight: 25g
Certifications:
CE Listed
FCC Listed
REACH Compliant
Model
Rated Voltage
Operating Voltage Range
Rated Current
Rated
Input Power
Speed
Maximum Air Flow
Maximum Air Pressure
Noise
PART.NO.
VDC
VDC
Amp
Watt
R.P.M
M³/min
CFM
mmH2O
InH2O
dB-A
CLD4020L05X
5
1.8~3~6.8
0.15
0.72
5000
0.147
5.19
2.62
0.103
20.9
CLD4020LM05X
5
1.8~3~6.8
0.17
0.84
6000
0.182
6.41
3.87
0.152
26.7
CLD4020M05X
5
1.8~3~6.8
0.19
0.96
6500
0.195
6.87
4.6
0.181
29.1
CLD4020H05X
5
1.8~3~6.8
0.22
1.08
7500
0.224
7.9
5.78
0.228
32.7
CLD4020HH05X
5
1.8~3~6.8
0.24
1.2
8500
0.248
8.77
7.52
0.296
37.2
CLD4020L12X
12
7~13.5
0.06
0.72
5000
0.147
5.19
2.62
0.103
20.9
CLD4020LM12X
12
7~13.5
0.07
0.84
6000
0.182
6.41
3.87
0.152
26.7
CLD4020M12X
12
7~13.5
0.08
0.96
6500
0.195
6.87
4.6
0.181
29.1
CLD4020H12X
12
7~13.5
0.09
1.08
7500
0.224
7.9
5.78
0.228
32.7
CLD4020HH12X
12
7~13.5
0.1
1.2
8500
0.248
8.77
7.52
0.296
37.2
CLD4020M24X
24
18~26.5
0.04
0.96
6500
0.195
6.87
4.6
0.181
29.1
CLD4020H24X
24
18~26.5
0.045
1.08
7500
0.224
7.9
5.78
0.228
32.7
CLD4020HH24X
24
18~26.5
0.05
1.2
8500
0.248
8.77
7.52
0.296
37.2
