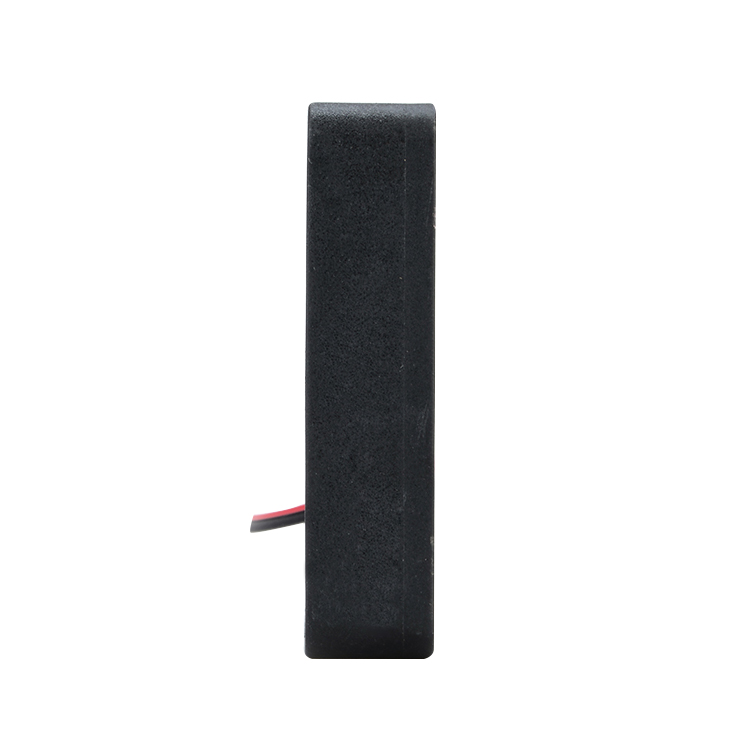

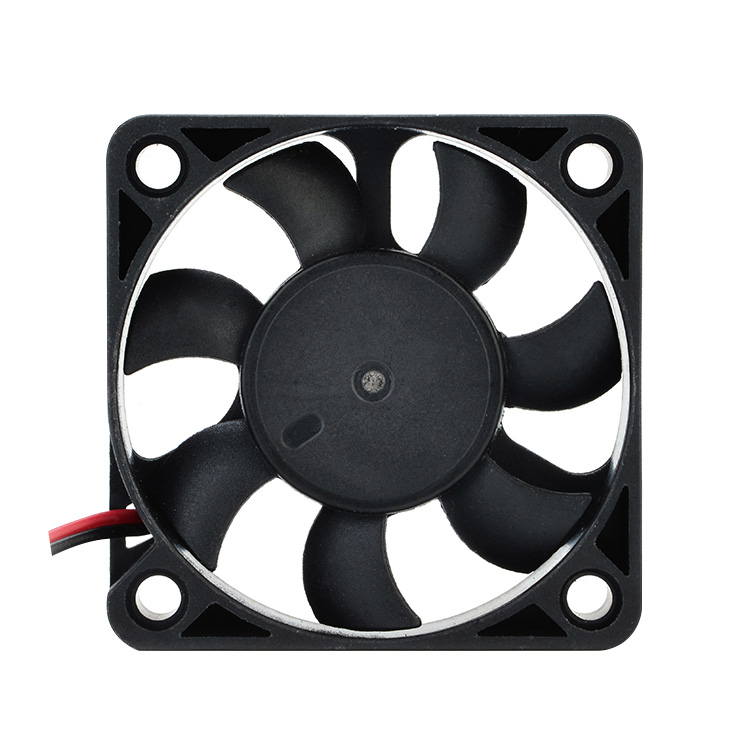

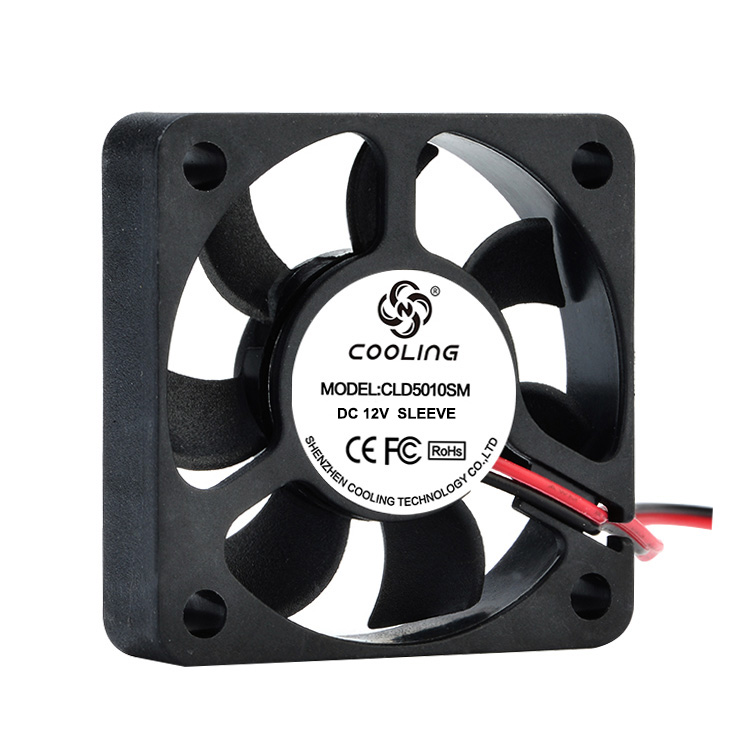

50x50x10mm 5V 12VDC Cooling Fan
Product Attributes
l Size / Dimension: 50x50x10mm
l Voltage - Rated：5VDC / 12VDC
l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing
l Air Flow: 0.231 ~ 0.38 m³/min（8.14 ~ 13.4 CFM）
l Static Pressure: 1.65 ~ 3.85 mm H2O（0.065 ~ 0.152 in H2O）
l Noise: ＜26.8 / 36.8 dB(A)
l RPM: 4000 ~ 6500 RPM
l Current Rating (Amps): 0.03 ~ 0.19A
l Voltage Range: 1.8~3~6VDC / 8.5 ~ 13.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：0.36 ~ 0.96 W
l Weight: 15g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLD5010L05X | 5 | 1.8~3~6 | 0.072 | 0.36 | 4000 | 0.231 | 8.14 | 1.65 | 0.065 | 26.8 |
| CLD5010LM05X | 5 | 1.8~3~6 | 0.096 | 0.48 | 4500 | 0.257 | 9.09 | 2.05 | 0.081 | 29.7 |
| CLD5010M05X | 5 | 1.8~3~6 | 0.12 | 0.60 | 5000 | 0.300 | 10.5 | 2.58 | 0.102 | 31.0 |
| CLD5010LH05X | 5 | 1.8~3~6 | 0.144 | 0.72 | 5500 | 0.308 | 10.8 | 2.84 | 0.112 | 33.5 |
| CLD5010H05X | 5 | 1.8~3~6 | 0.168 | 0.84 | 6000 | 0.345 | 12.1 | 3.34 | 0.131 | 34.2 |
| CLD5010HH05X | 5 | 1.8~3~6 | 0.19 | 0.96 | 6500 | 0.380 | 13.4 | 3.85 | 0.152 | 36.8 |
| CLD5010L12X | 12 | 8.5~13.5 | 0.03 | 0.36 | 4000 | 0.231 | 8.14 | 1.65 | 0.065 | 26.8 |
| CLD5010LM12X | 12 | 8.5~13.5 | 0.04 | 0.48 | 4500 | 0.257 | 9.09 | 2.05 | 0.081 | 29.7 |
| CLD5010M12X | 12 | 8.5~13.5 | 0.05 | 0.60 | 5000 | 0.300 | 10.5 | 2.58 | 0.102 | 31.0 |
| CLD5010LH12X | 12 | 8.5~13.5 | 0.06 | 0.72 | 5500 | 0.308 | 10.8 | 2.84 | 0.112 | 33.5 |
| CLD5010H12X | 12 | 8.5~13.5 | 0.07 | 0.84 | 6000 | 0.345 | 12.1 | 3.34 | 0.131 | 34.2 |
| CLD5010HH12X | 12 | 8.5~13.5 | 0.08 | 0.96 | 6500 | 0.380 | 13.4 | 3.85 | 0.152 | 36.8 |
