DC Axial Fan

  • 5015 5V 12V 24VDC (50X50X15mm) Cooling Fan
  • 5015 5V 12V 24VDC (50X50X15mm) Cooling Fan
  • 5015 5V 12V 24VDC (50X50X15mm) Cooling Fan
5015 5V 12V 24VDC (50X50X15mm) Cooling Fan5015 5V 12V 24VDC (50X50X15mm) Cooling Fan5015 5V 12V 24VDC (50X50X15mm) Cooling Fan

5015 5V 12V 24VDC (50X50X15mm) Cooling Fan

  • Product description: 5015 – DC Fan 50X50X15mm 5V 12V 24VDC Sleeve/Hydraulic/Dual Ball Bearing 0.519m³/min 18.3CFM - DC Brushless fans and quiet cooling solutions from Cooling Technology
  • INQUIRY

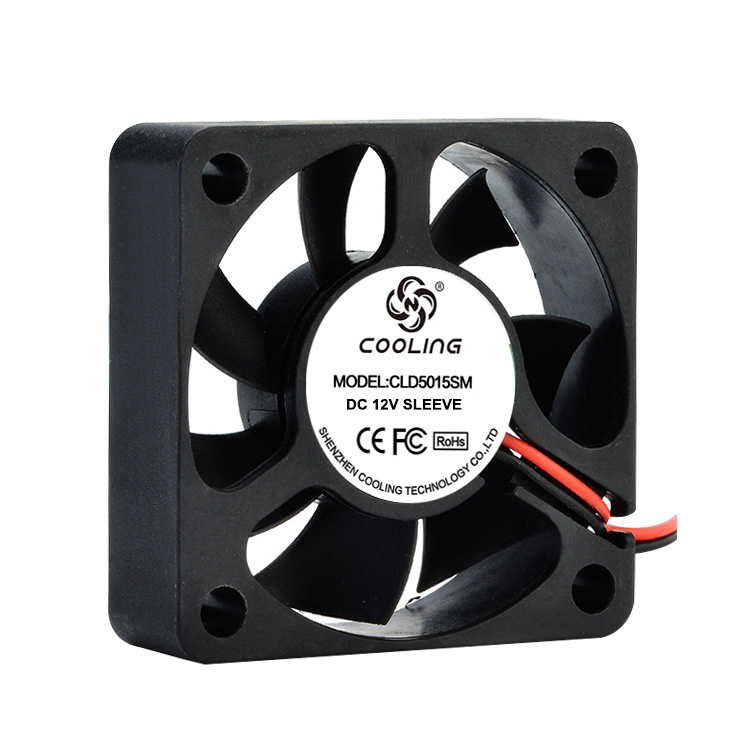

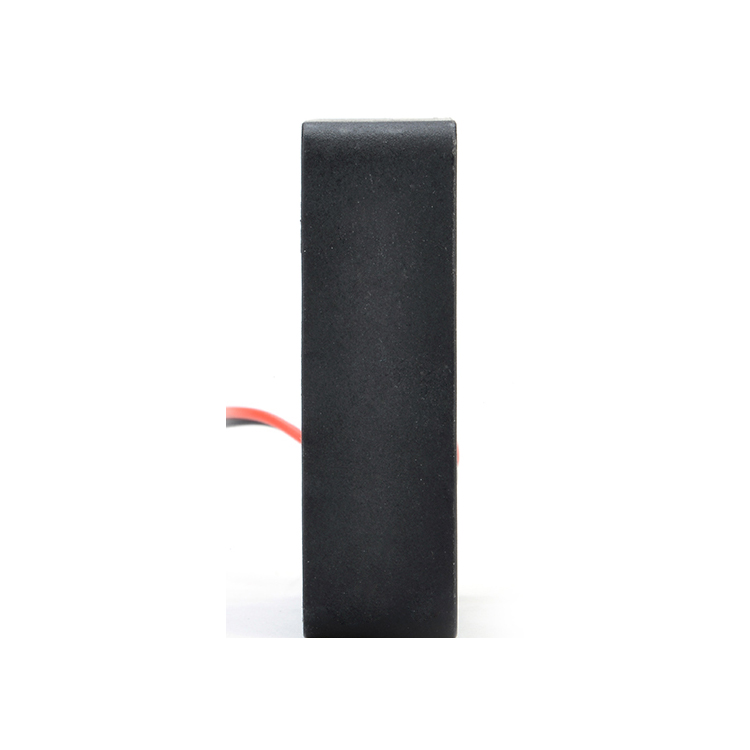

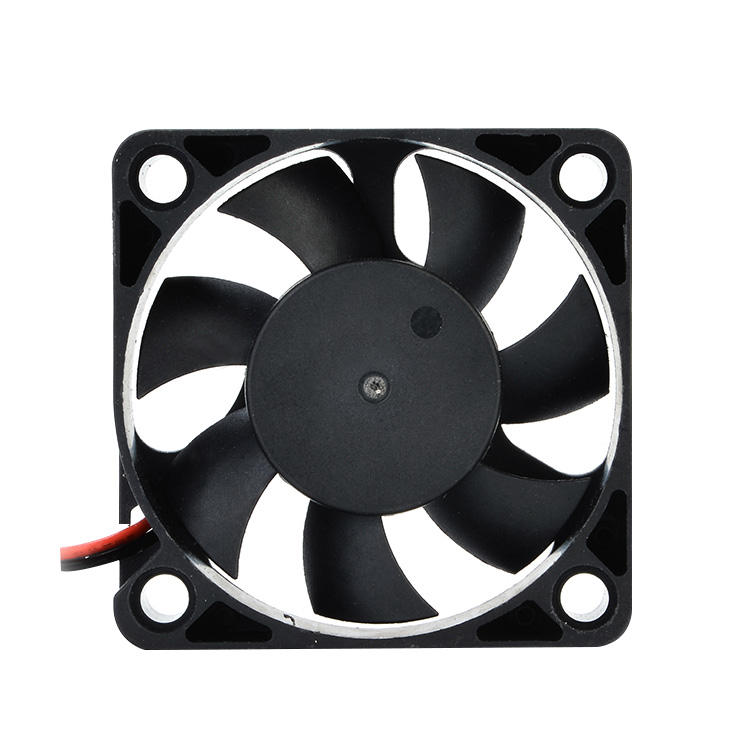

50x50x15mm 5V 12V 24VDC Cooling Fan


Product Attributes

Size / Dimension: 50x50x15mm

Voltage - Rated5VDC / 12VDC / 24VDC

Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing

Air Flow: 0.241 ~ 0.519 m³/min(8.52 ~ 18.3 CFM

Static Pressure: 2.06 ~ 8.68 mm H2O(0.081 ~ 0.342 in H2O

Noise: 24.1 / 46.1 dB(A)

RPM: 3500 ~ 7500 RPM

Current Rating (Amps): 0.05 ~ 0.3A

Voltage Range: 1.8~3~6VDC / 7 ~ 13.5VDC / 18 ~ 26.5VDC

Material - Frame: Plastic (Flammability: UL94V-0)

Material - Blade: Plastic (Flammability: UL94V-0)

Power (Watts)0.6 ~ 3.6 W

Weight: 27g



Certifications:

CE Listed

FCC Listed

REACH Compliant

Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLD5015H05X 5 1.8~3~6 0.12 0.6 3500 0.241 8.52 2.06 0.081 24.1
CLD5015HH05X 5 1.8~3~6 0.144 0.72 4000 0.277 9.77 2.76 0.109 28.1
CLD5015VH05X 5 1.8~3~6 0.192 0.96 4500 0.308 10.8 3.37 0.133 31.2
CLD5015HV05X 5 1.8~3~6 0.24 1.2 5000 0.343 12.1 4.04 0.159 33.9
CLD5015H12X 12 7~13.5 0.05 0.6 3500 0.241 8.52 2.06 0.081 24.1
CLD5015HH12X 12 7~13.5 0.06 0.72 4000 0.277 9.77 2.76 0.109 28.1
CLD5015VH12X 12 7~13.5 0.08 0.96 4500 0.308 10.8 3.37 0.133 31.2
CLD5015HV12X 12 7~13.5 0.1 1.2 5000 0.343 12.1 4.04 0.159 33.9
CLD5015LH12X 12 7~13.5 0.14 1.68 5500 0.380 13.4 4.84 0.191 37.7
CLD5015HL12X 12 7~13.5 0.18 2.16 6000 0.416 14.6 5.76 0.228 39.4
CLD5015MH12X 12 7~13.5 0.24 2.88 6500 0.449 15.8 6.68 0.263 41.2
CLD5015HM12X 12 7~13.5 0.3 3.6 7500 0.519 18.3 8.68 0.342 46.1
CLD5015VH24X 24 18~26.5 0.04 0.96 4500 0.308 10.8 3.37 0.133 31.2
CLD5015HV24X 24 18~26.5 0.05 1.2 5000 0.343 12.1 4.04 0.159 33.9
CLD5015LH24X 24 18~26.5 0.07 1.68 5500 0.380 13.4 4.84 0.191 37.7
CLD5015HL24X 24 18~26.5 0.09 2.16 6000 0.416 14.6 5.76 0.228 39.4
CLD5015MH24X 24 18~26.5 0.12 2.88 6500 0.449 15.8 6.68 0.263 41.2
CLD5015HM24X 24 18~26.5 0.15 3.6 7500 0.519 18.3 8.68 0.342 46.1
