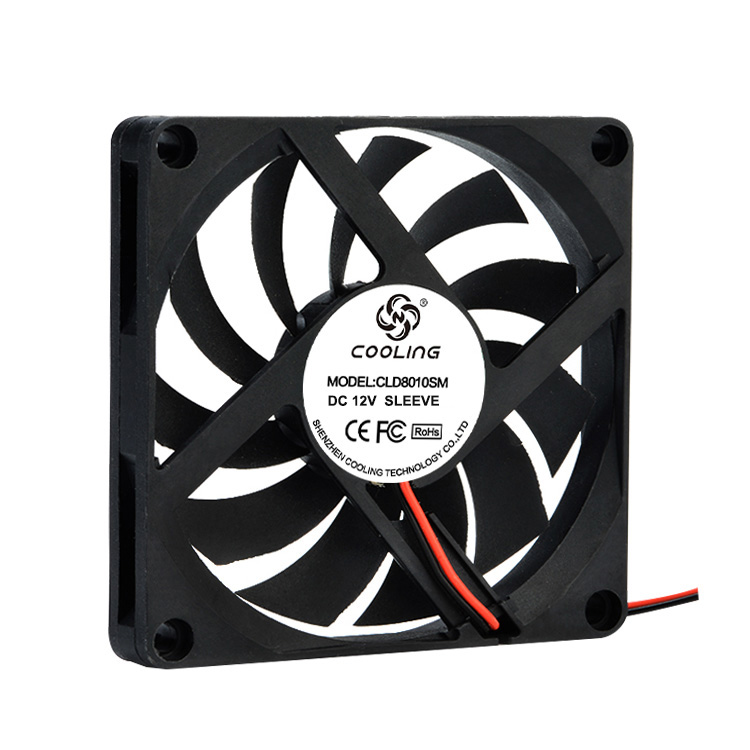

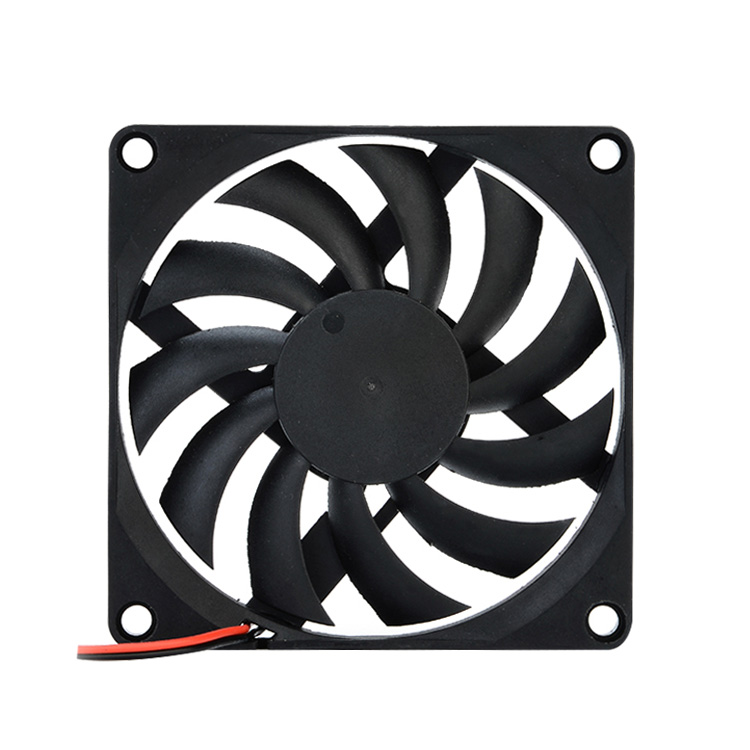

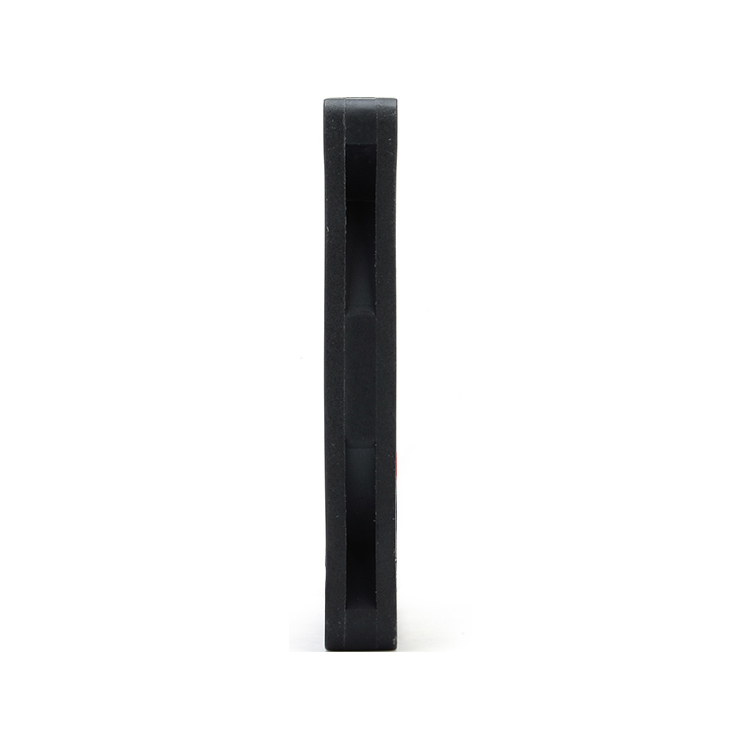

80x80x10mm 5V 12V 24VDC Cooling Fan
Product Attributes
l Size / Dimension: 80x80x10mm
l Voltage - Rated：5VDC / 12VDC / 24VDC
l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing
l Air Flow: 0.395 ~ 0.725 m³/min（13.9 ~ 25.6 CFM）
l Static Pressure: 0.89 ~ 2.44 mm H2O（0.035 ~ 0.096 in H2O）
l Noise: ＜22.9 / 34.9 dB(A)
l RPM: 2000 ~ 3500 RPM
l Current Rating (Amps): 0.03 ~ 0.22A
l Voltage Range: 1.8~3~6VDC / 1.8~3~13.5VDC / 18 ~ 26.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：0.72 ~ 2.64 W
l Weight: 39g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLD8010VL12X | 5 | 1.8~3~6 | 0.144 | 0.72 | 2000 | 0.395 | 13.9 | 0.89 | 0.035 | 22.9 |
| CLD8010VL12X | 12 | 1.8~3~13.5 | 0.06 | 0.72 | 2000 | 0.395 | 13.9 | 0.89 | 0.035 | 22.9 |
| CLD8010L12X | 12 | 1.8~3~13.5 | 0.1 | 1.2 | 2500 | 0.506 | 17.8 | 1.20 | 0.047 | 26.5 |
| CLD8010M12X | 12 | 1.8~3~13.5 | 0.16 | 1.92 | 3000 | 0.619 | 21.8 | 1.71 | 0.067 | 30.7 |
| CLD8010H12X | 12 | 1.8~3~13.5 | 0.22 | 2.64 | 3500 | 0.725 | 25.6 | 2.44 | 0.096 | 34.9 |
| CLD8010VL24X | 24 | 18~26.5 | 0.03 | 0.72 | 2000 | 0.395 | 13.9 | 0.89 | 0.035 | 22.9 |
| CLD8010L24X | 24 | 18~26.5 | 0.05 | 1.2 | 2500 | 0.506 | 17.8 | 1.20 | 0.047 | 26.5 |
| CLD8010M24X | 24 | 18~26.5 | 0.08 | 1.92 | 3000 | 0.619 | 21.8 | 1.71 | 0.067 | 30.7 |
| CLD8010H24X | 24 | 18~26.5 | 0.11 | 2.64 | 3500 | 0.725 | 25.6 | 2.44 | 0.096 | 34.9 |
