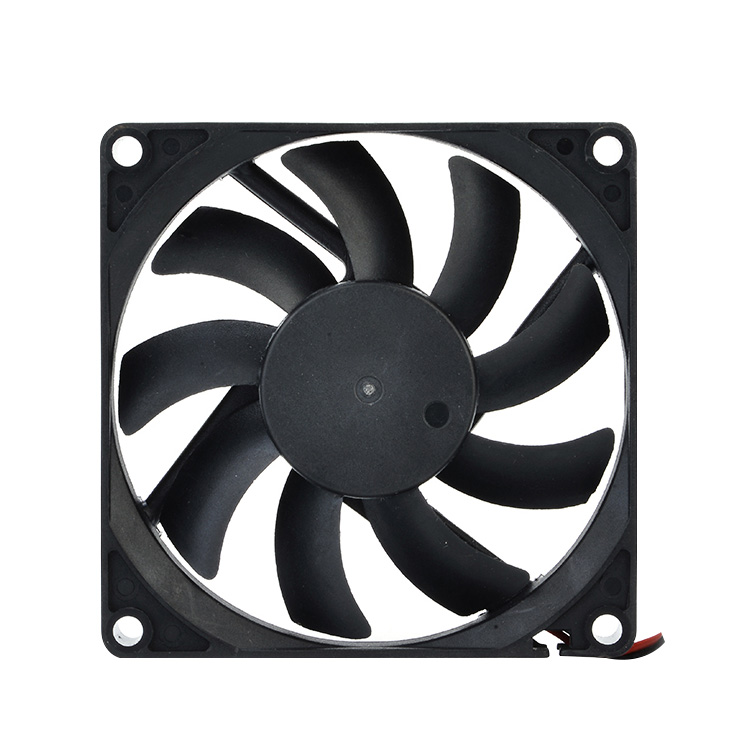

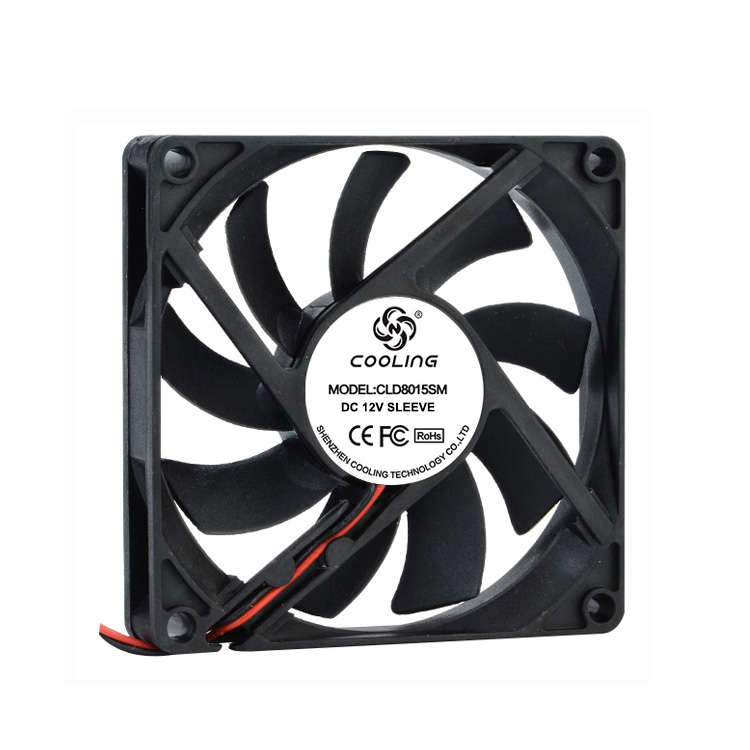

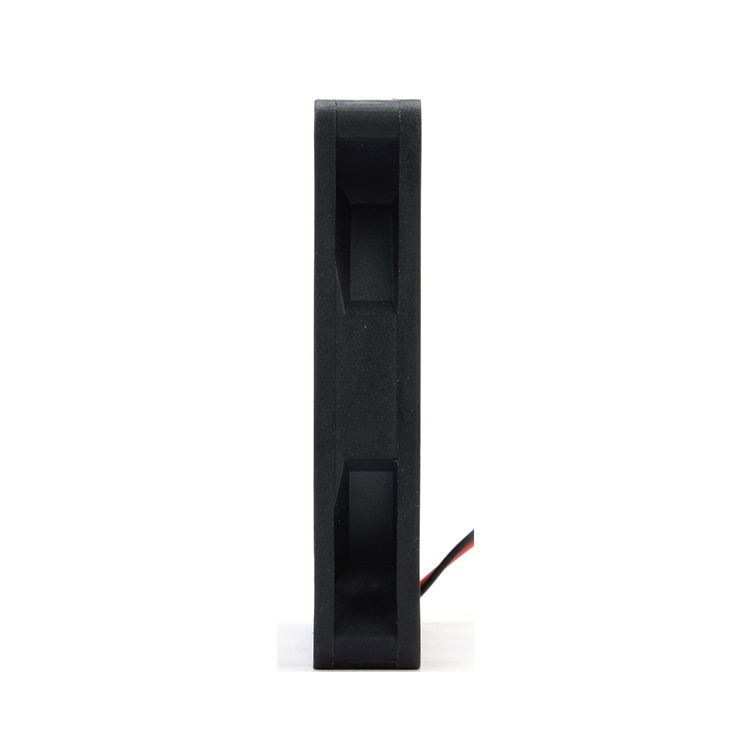

80x80x15mm 5V 12V 24VDC Cooling Fan
Product Attributes
l Size / Dimension: 80x80x15mm
l Voltage - Rated：5VDC / 12VDC / 24VDC
l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing
l Air Flow: 0.028 ~ 0.067 m³/min（0.98 ~ 36.6 CFM）
l Static Pressure: 1.22 ~ 3.38 mm H2O（0.048 ~ 0.27 in H2O）
l Noise: ＜15.5 / 40.3 dB(A)
l RPM: 2000 ~ 3500 RPM
l Current Rating (Amps): 0.06 ~ 0.3A
l Voltage Range: 1.8~3~6VDC / 1.8~3~13.5VDC / 18 ~ 26.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：1.2 ~ 4.32 W
l Weight: 49g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLD8015L05X | 5 | 1.8~3~6 | 0.24 | 1.2 | 2000 | 0.028 | 0.98 | 1.22 | 0.048 | 15.5 |
| CLD8015L12X | 12 | 1.8~3~13.5 | 0.1 | 1.2 | 2000 | 0.029 | 22.8 | 1.20 | 0.073 | 30.4 |
| CLD8015M12X | 12 | 1.8~3~13.5 | 0.13 | 1.56 | 2500 | 0.041 | 25.0 | 1.65 | 0.128 | 33.5 |
| CLD8015H12X | 12 | 1.8~3~13.5 | 0.21 | 2.52 | 3000 | 0.049 | 31.9 | 2.44 | 0.153 | 36.2 |
| CLD8015HH12X | 12 | 1.8~3~13.5 | 0.3 | 3.6 | 3500 | 0.067 | 36.6 | 3.38 | 0.270 | 40.3 |
| CLD8015L24X | 24 | 18~26.5 | 0.06 | 1.44 | 2000 | 0.029 | 22.8 | 1.20 | 0.073 | 30.4 |
| CLD8015M24X | 24 | 18~26.5 | 0.08 | 1.92 | 2500 | 0.041 | 25.0 | 1.65 | 0.128 | 33.5 |
| CLD8015H24X | 24 | 18~26.5 | 0.1 | 2.4 | 3000 | 0.049 | 31.9 | 2.44 | 0.153 | 36.2 |
| CLD8015HH24X | 24 | 18~26.5 | 0.18 | 4.32 | 3500 | 0.067 | 36.6 | 3.38 | 0.270 | 40.3 |
