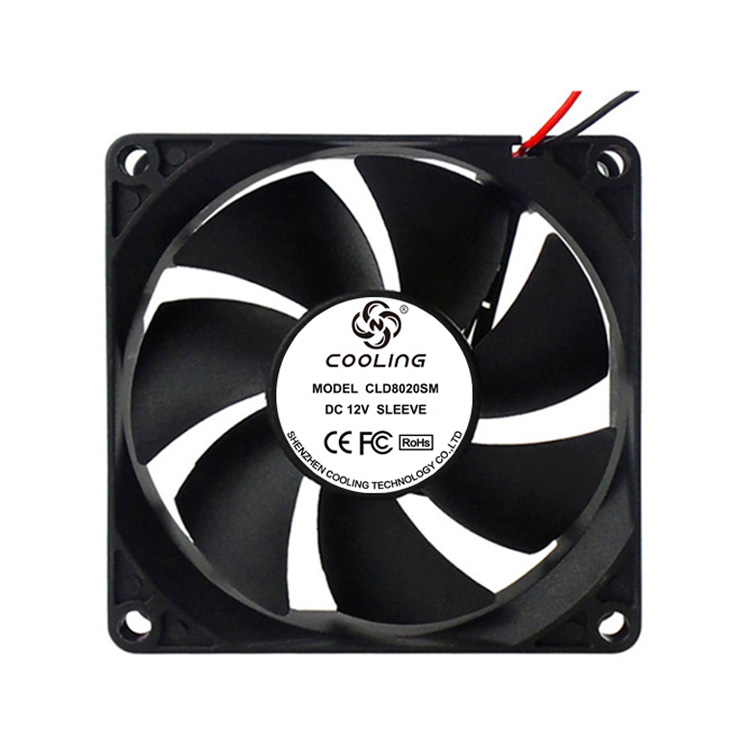

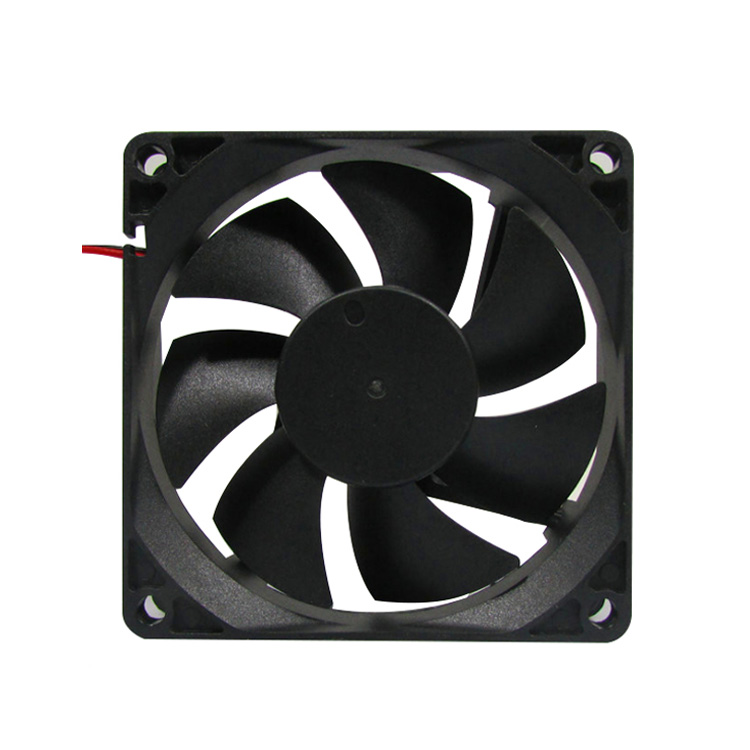

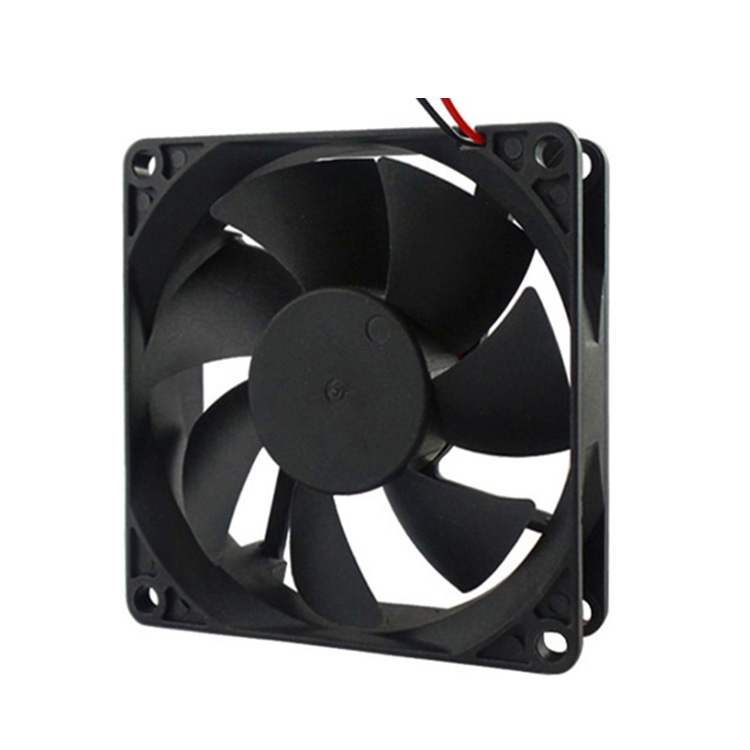

80x80x20mm 12V 24V 48VDC Cooling Fan
Product Attributes
l Size / Dimension: 80x80x20mm
l Voltage - Rated：12VDC / 24VDC / 48VDC
l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing
l Air Flow: 0.028 ~ 0.102 m³/min（30.9 ~ 45.1 CFM）
l Static Pressure: 2.82 ~ 5.51 mm H2O（0.048 ~ 0.247 in H2O）
l Noise: ＜35.7 – 45.3 dB(A)
l RPM: 3000 ~ 4500 RPM
l Current Rating (Amps): 0.04 ~ 0.34A
l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：1.92 ~ 4.08 W
l Weight: 60g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLD8020L12X | 12 | 7~13.5 | 0.16 | 1.92 | 3000 | 0.028 | 30.9 | 2.82 | 0.048 | 35.7 |
| CLD8020M12X | 12 | 7~13.5 | 0.22 | 2.64 | 3500 | 0.064 | 35.7 | 3.60 | 0.098 | 38.5 |
| CLD8020H12X | 12 | 7~13.5 | 0.26 | 3.12 | 4000 | 0.084 | 40.1 | 4.41 | 0.167 | 41.6 |
| CLD8020HH12X | 12 | 7~13.5 | 0.34 | 4.08 | 4500 | 0.102 | 45.1 | 5.51 | 0.247 | 45.3 |
| CLD8020L24X | 24 | 18~26.5 | 0.08 | 1.92 | 3000 | 0.028 | 30.9 | 2.82 | 0.048 | 35.7 |
| CLD8020M24X | 24 | 18~26.5 | 0.11 | 2.64 | 3500 | 0.064 | 35.7 | 3.60 | 0.098 | 38.5 |
| CLD8020H24X | 24 | 18~26.5 | 0.13 | 3.12 | 4000 | 0.084 | 40.1 | 4.41 | 0.167 | 41.6 |
| CLD8020HH24X | 24 | 18~26.5 | 0.17 | 4.08 | 4500 | 0.102 | 45.1 | 5.51 | 0.247 | 45.3 |
| CLD8020L48X | 48 | 36~54 | 0.04 | 1.92 | 3000 | 0.028 | 30.9 | 2.82 | 0.048 | 35.7 |
| CLD8020M48X | 48 | 36~54 | 0.055 | 2.64 | 3500 | 0.064 | 35.7 | 3.60 | 0.098 | 38.5 |
| CLD8020H48X | 48 | 36~54 | 0.065 | 3.12 | 4000 | 0.084 | 40.1 | 4.41 | 0.167 | 41.6 |
| CLD8020HH48X | 48 | 36~54 | 0.08 | 4.08 | 4500 | 0.102 | 45.1 | 5.51 | 0.247 | 45.3 |
