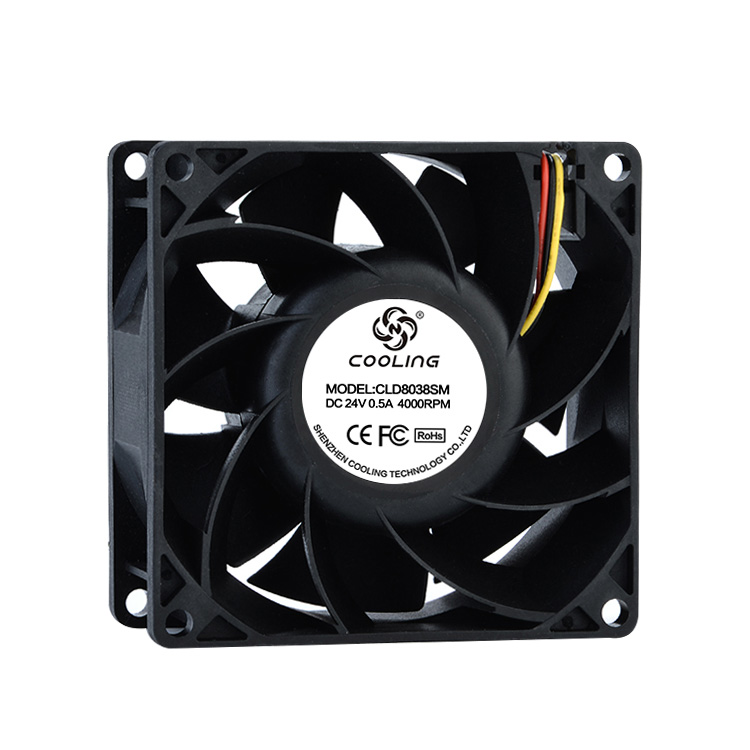

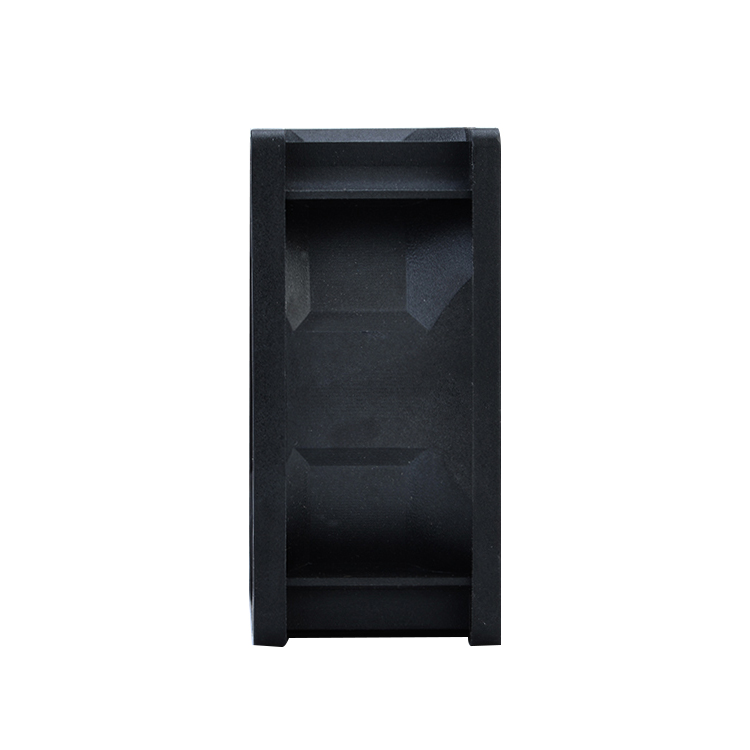

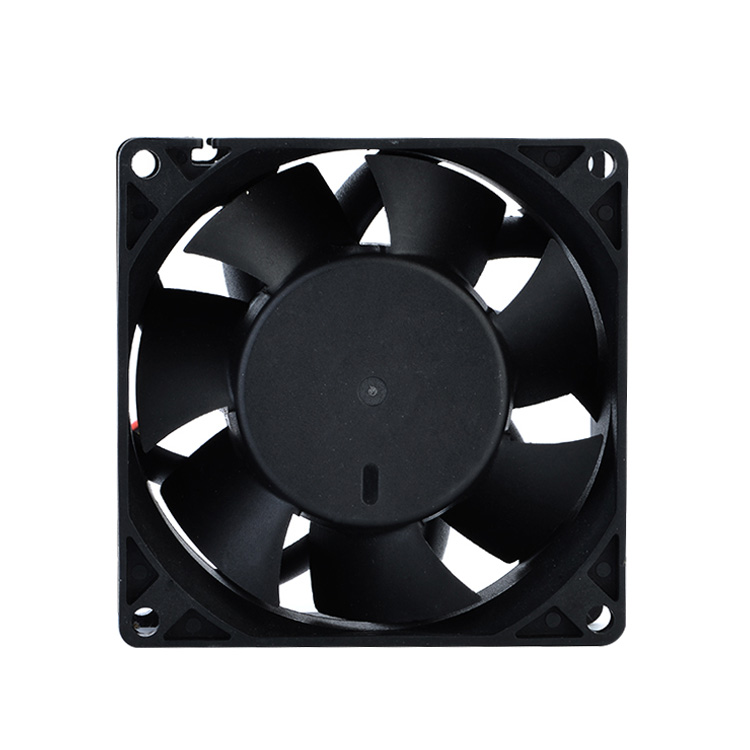

80x80x38mm 12V 24V 48VDC Cooling Fan
Product Attributes
l Size / Dimension: 80x80x38mm
l Voltage - Rated：12VDC / 24VDC / 48VDC
l Bearing Type: Sleeve / Dual Ball Bearing
l Air Flow: 1.413 ~ 3.089 m³/min（49.89 ~ 109.06 CFM）
l Static Pressure: 8.51 ~ 37.26 mm H2O（0.335 ~ 1.467 in H2O）
l Noise: ＜46.8 – 66.6 dB(A)
l RPM: 4000 ~ 8500 RPM
l Current Rating (Amps): 0.13 ~ 2.1A
l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：6 ~ 25.2 W
l Weight: 175g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLD8038L12X | 12 | 7~13.5 | 0.5 | 6 | 4000 | 1.413 | 49.89 | 8.51 | 0.335 | 46.8 |
| CLD8038 M12X | 12 | 7~13.5 | 0.9 | 10.8 | 5500 | 1.988 | 70.21 | 15.83 | 0.623 | 53.2 |
| CLD8038 H12X | 12 | 7~13.5 | 1.2 | 14.4 | 6000 | 2.123 | 74.98 | 18.78 | 0.739 | 58.9 |
| CLD8038 HH12X | 12 | 7~13.5 | 1.6 | 19.2 | 7000 | 2.592 | 91.51 | 25.52 | 1.005 | 60.5 |
| CLD8038VH12X | 12 | 7~13.5 | 2.1 | 25.2 | 8500 | 3.089 | 109.06 | 37.26 | 1.467 | 66.6 |
| CLD8038L24X | 24 | 18~26.5 | 0.25 | 6 | 4000 | 1.413 | 49.89 | 8.51 | 0.335 | 46.8 |
| CLD8038 M24X | 24 | 18~26.5 | 0.45 | 10.8 | 5500 | 1.988 | 70.21 | 15.83 | 0.623 | 53.2 |
| CLD8038 H24X | 24 | 18~26.5 | 0.6 | 14.4 | 6000 | 2.123 | 74.98 | 18.78 | 0.739 | 58.9 |
| CLD8038HH24X | 24 | 18~26.5 | 0.8 | 19.2 | 7000 | 2.592 | 91.51 | 25.52 | 1.005 | 60.5 |
| CLD8038VH24X | 24 | 18~26.5 | 1.05 | 25.2 | 8500 | 3.089 | 109.06 | 37.26 | 1.467 | 66.6 |
| CLD8038L48X | 48 | 36~54 | 0.13 | 6 | 4000 | 1.413 | 49.89 | 8.51 | 0.335 | 46.8 |
| CLD8038 M48X | 48 | 36~54 | 0.23 | 10.8 | 5500 | 1.988 | 70.21 | 15.83 | 0.623 | 53.2 |
| CLD8038 H48X | 48 | 36~54 | 2.36 | 14.4 | 6000 | 2.123 | 74.98 | 18.78 | 0.739 | 58.9 |
| CLD8038 HH48X | 48 | 36~54 | 0.4 | 19.2 | 7000 | 2.592 | 91.51 | 25.52 | 1.005 | 60.5 |
| CLD8038 VH48X | 48 | 36~54 | 0.53 | 25.2 | 8500 | 3.089 | 109.06 | 37.26 | 1.467 | 66.6 |
