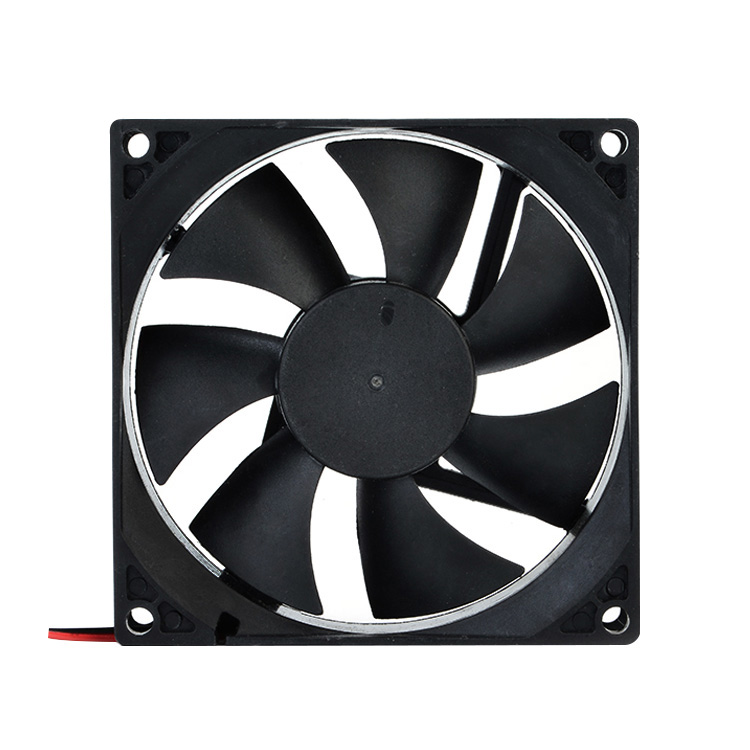

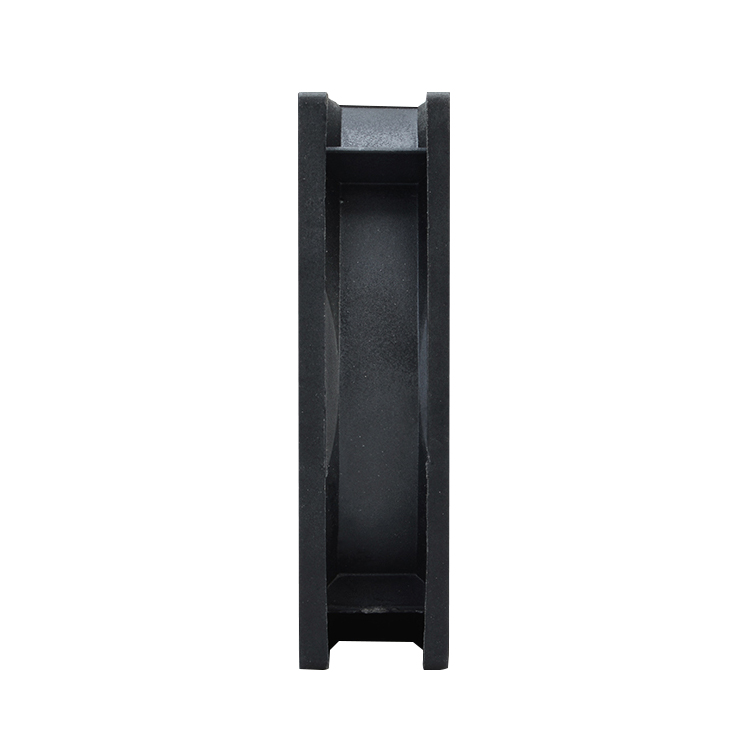

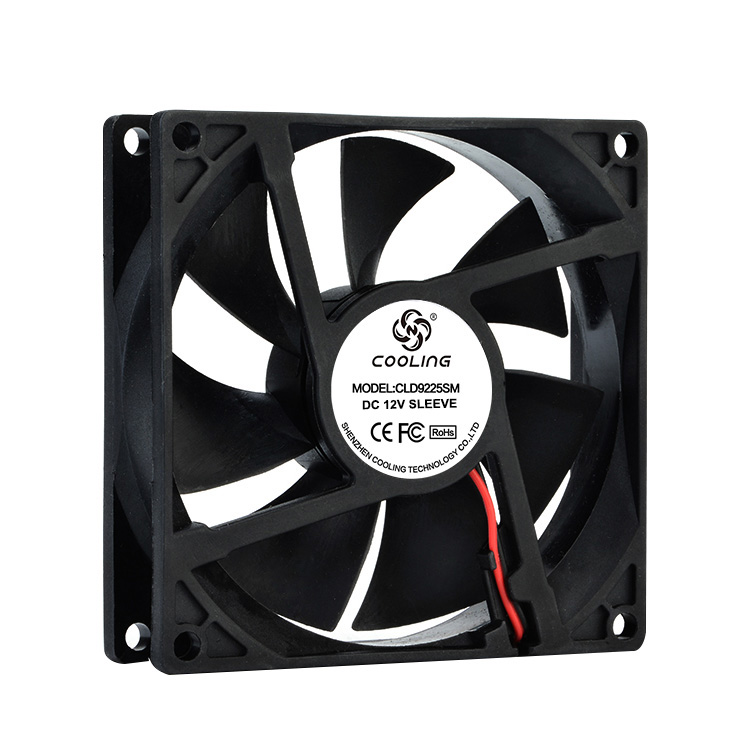

92X92X25mm 12V 24V 48VDC Cooling Fan
Product Attributes
l Size / Dimension: 92X92X25mm
l Voltage - Rated：12VDC / 24VDC / 48VDC
l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing
l Air Flow: 0.905 ~ 2.094 m³/min（31.9 ~ 73.9 CFM）
l Static Pressure: 2.01 ~ 8.32 mm H2O（0.079 ~ 0.328 in H2O）
l Noise: ＜27.5 – 50.1 dB(A)
l RPM: 2000 ~ 4500 RPM
l Current Rating (Amps): 0.03 ~ 0.44A
l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：1.44 ~ 5.28 W
l Weight: 102g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLD9225L12X | 12 | 7~13.5 | 0.12 | 1.44 | 2000 | 0.905 | 31.9 | 2.01 | 0.079 | 27.5 |
| CLD9225M12X | 12 | 7~13.5 | 0.16 | 1.92 | 2500 | 1.086 | 38.3 | 2.92 | 0.115 | 33.7 |
| CLD9225H12X | 12 | 7~13.5 | 0.2 | 2.4 | 3000 | 1.389 | 49.0 | 4.11 | 0.162 | 39.1 |
| CLD9225HH12X | 12 | 7~13.5 | 0.24 | 2.88 | 3500 | 1.554 | 54.8 | 4.99 | 0.196 | 42.4 |
| CLD9225HV12X | 12 | 7~13.5 | 0.32 | 3.84 | 4000 | 1.875 | 66.2 | 6.78 | 0.267 | 46.4 |
| CLD9225VH12X | 12 | 7~13.5 | 0.44 | 5.28 | 4500 | 2.094 | 73.9 | 8.32 | 0.328 | 50.1 |
| CLD9225L24X | 24 | 18~26.5 | 0.06 | 1.44 | 2000 | 0.905 | 31.9 | 2.01 | 0.079 | 27.5 |
| CLD9225M24X | 24 | 18~26.5 | 0.08 | 1.92 | 2500 | 1.086 | 38.3 | 2.92 | 0.115 | 33.7 |
| CLD9225H24X | 24 | 18~26.5 | 0.1 | 2.4 | 3000 | 1.389 | 49.0 | 4.11 | 0.162 | 39.1 |
| CLD9225HH24X | 24 | 18~26.5 | 0.12 | 2.88 | 3500 | 1.554 | 54.8 | 4.99 | 0.196 | 42.4 |
| CLD9225HV24X | 24 | 18~26.5 | 0.16 | 3.84 | 4000 | 1.875 | 66.2 | 6.78 | 0.267 | 46.4 |
| CLD9225VH24X | 24 | 18~26.5 | 0.22 | 5.28 | 4500 | 2.094 | 73.9 | 8.32 | 0.328 | 50.1 |
| CLD9225L48X | 48 | 36~54 | 0.03 | 1.44 | 2000 | 0.905 | 31.9 | 2.01 | 0.079 | 27.5 |
| CLD9225M48X | 48 | 36~54 | 0.04 | 1.92 | 2500 | 1.086 | 38.3 | 2.92 | 0.115 | 33.7 |
| CLD9225H48X | 48 | 36~54 | 0.05 | 2.4 | 3000 | 1.389 | 49.0 | 4.11 | 0.162 | 39.1 |
| CLD9225HH48X | 48 | 36~54 | 0.06 | 2.88 | 3500 | 1.554 | 54.8 | 4.99 | 0.196 | 42.4 |
| CLD9225HV48X | 48 | 36~54 | 0.08 | 3.84 | 4000 | 1.875 | 66.2 | 6.78 | 0.267 | 46.4 |
| CLD9225VH48X | 48 | 36~54 | 0.11 | 5.28 | 4500 | 2.094 | 73.9 | 8.32 | 0.328 | 50.1 |
