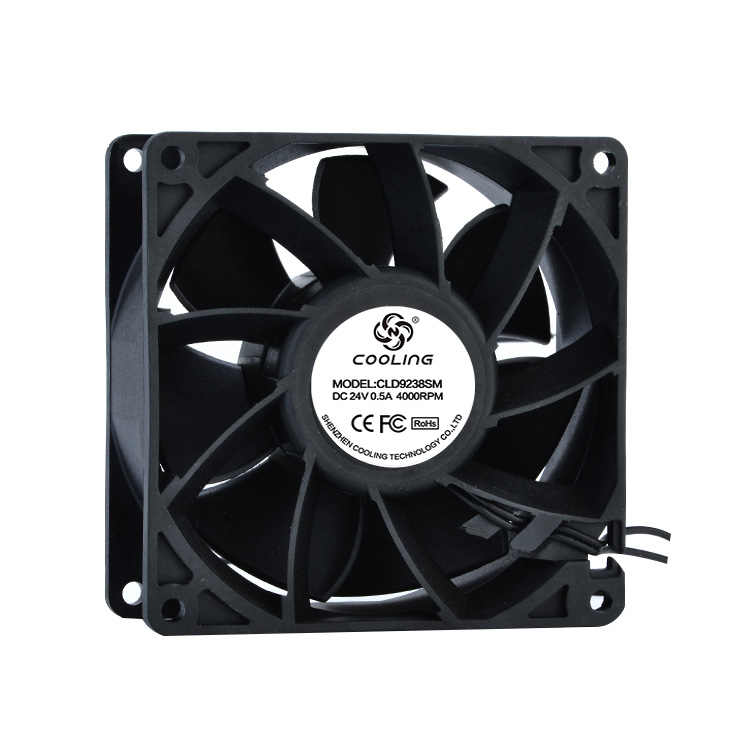

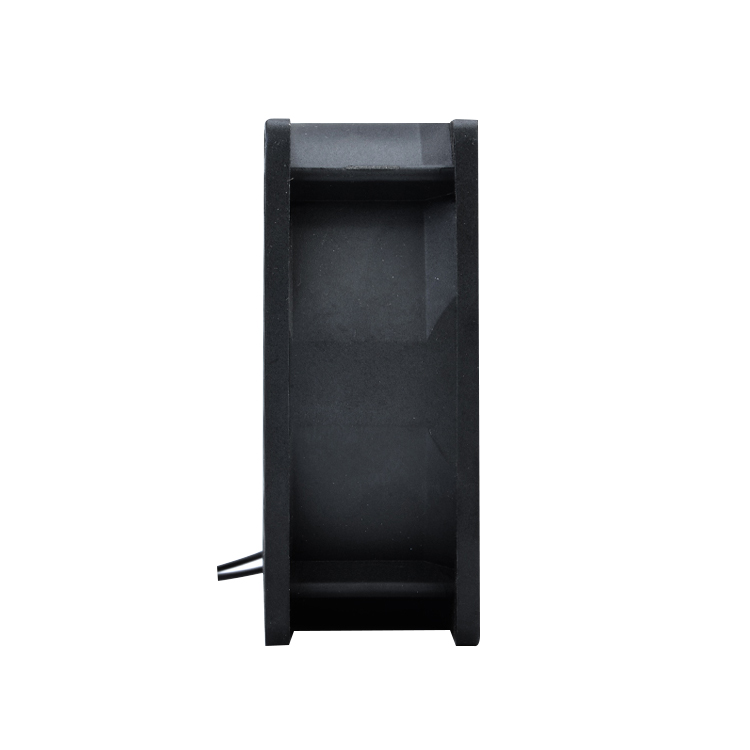

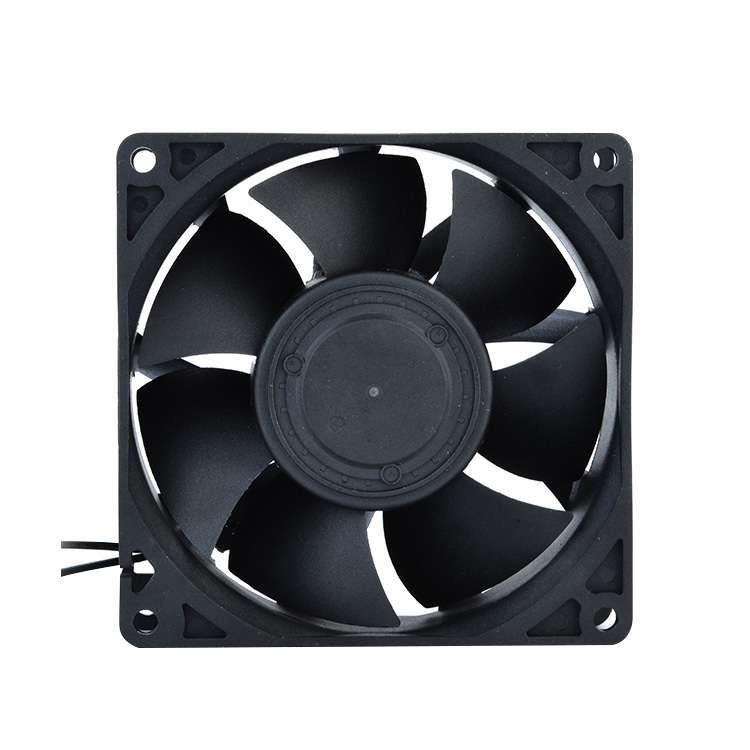

92X92X38mm 12V 24V 48VDC Cooling Fan
Product Attributes
l Size / Dimension: 92X92X38mm
l Voltage - Rated：12VDC / 24VDC / 48VDC
l Bearing Type: Sleeve / Dual Ball Bearing
l Air Flow: 2.007 ~4.086 m³/min（70.86 ~ 144.26 CFM）
l Static Pressure: 8.25 ~ 30.88 mm H2O（0.325 ~ 1.216 in H2O）
l Noise: ＜48.0 – 66.2 dB(A)
l RPM: 3500 ~ 7000 RPM
l Current Rating (Amps): 0.13 ~ 2.1A
l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：6 ~ 25.2 W
l Weight: 175g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLD9238L12X | 12 | 7~13.5 | 0.5 | 6 | 3500 | 2.007 | 70.86 | 8.25 | 0.325 | 48.0 |
| CLD9238 M12X | 12 | 7~13.5 | 0.9 | 10.8 | 4500 | 2.665 | 94.09 | 14.26 | 0.561 | 55.1 |
| CLD9238 H12X | 12 | 7~13.5 | 1.2 | 14.4 | 5500 | 3.172 | 112.02 | 20.24 | 0.797 | 61.5 |
| CLD9238HH12X | 12 | 7~13.5 | 1.6 | 19.2 | 6500 | 3.768 | 133.04 | 24.87 | 0.979 | 65.6 |
| CLD9238VH12X | 12 | 7~13.5 | 2.1 | 25.2 | 7000 | 4.086 | 144.26 | 30.88 | 1.216 | 66.2 |
| CLD9238L24X | 24 | 18~26.5 | 0.25 | 6 | 3500 | 2.007 | 70.86 | 8.25 | 0.325 | 48.0 |
| CLD9238M24X | 24 | 18~26.5 | 0.45 | 10.8 | 4500 | 2.665 | 94.09 | 14.26 | 0.561 | 55.1 |
| CLD9238H24X | 24 | 18~26.5 | 0.6 | 14.4 | 5500 | 3.172 | 112.02 | 20.24 | 0.797 | 61.5 |
| CLD9238HH24X | 24 | 18~26.5 | 0.8 | 19.2 | 6500 | 3.768 | 133.04 | 24.87 | 0.979 | 65.6 |
| CLD9238VH24X | 24 | 18~26.5 | 1.05 | 25.2 | 7000 | 4.086 | 144.26 | 30.88 | 1.216 | 66.2 |
| CLD9238L48X | 48 | 36~54 | 0.13 | 6 | 3500 | 2.007 | 70.86 | 8.25 | 0.325 | 48.0 |
| CLD9238 M48X | 48 | 36~54 | 0.23 | 10.8 | 4500 | 2.665 | 94.09 | 14.26 | 0.561 | 55.1 |
| CLD9238 H48X | 48 | 36~54 | 2.36 | 14.4 | 5500 | 3.172 | 112.02 | 20.24 | 0.797 | 61.5 |
| CLD9238 HH48X | 48 | 36~54 | 0.4 | 19.2 | 6500 | 3.768 | 133.04 | 24.87 | 0.979 | 65.6 |
| CLD9238VH48X | 48 | 36~54 | 0.53 | 25.2 | 7000 | 4.086 | 144.26 | 30.88 | 1.216 | 66.2 |
